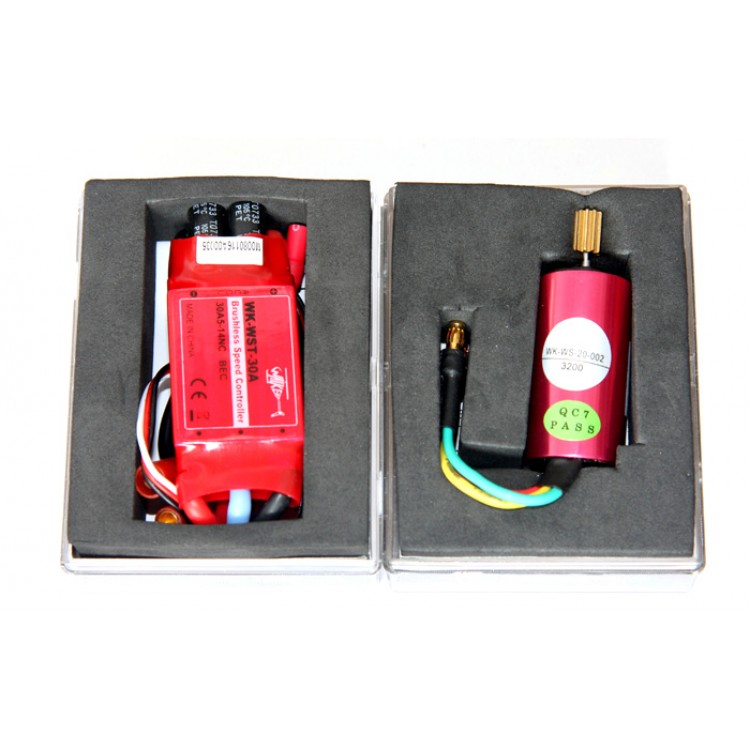

Walkera 180L Brushless Motor 3200KV + 30A ESC

Features of Motor:

• No magnetic cogging
• Spark free
• High efficiency
• Long service life
• Compact design - small dimensions
• High acceleration thanks to a low mass inertia
• Low electromagnetic interference
• Linearity between voltage and speed
• Linearity between load and speed
• Good heat dissipation, high overload ability
• Mainly linear motor characteristics, excellent control properties
• Able to bear high overloads for short periods

Specification of Motor:

• Dimension:Φ 20 X 40mm
• Speed constant(KV): 3300RPM/V
• No-Load Current: ≤1.0A
• Working voltage: 6-18V
• Shaft extension: 11.0mm
• Shaft diameter: Φ2.3mm
• Weight: 65g

Specifiction of ESC

• Sustaining voltage: 6-17V
• BEC current: 3.0A
• Continuous output current: 30A
• Instant max current: 50A
• Inside impedance: 0.0044 Ω
• Reversion: yes
• Low voltage, cut electricity protection: yes
• weight: 38.1g(approximately)
