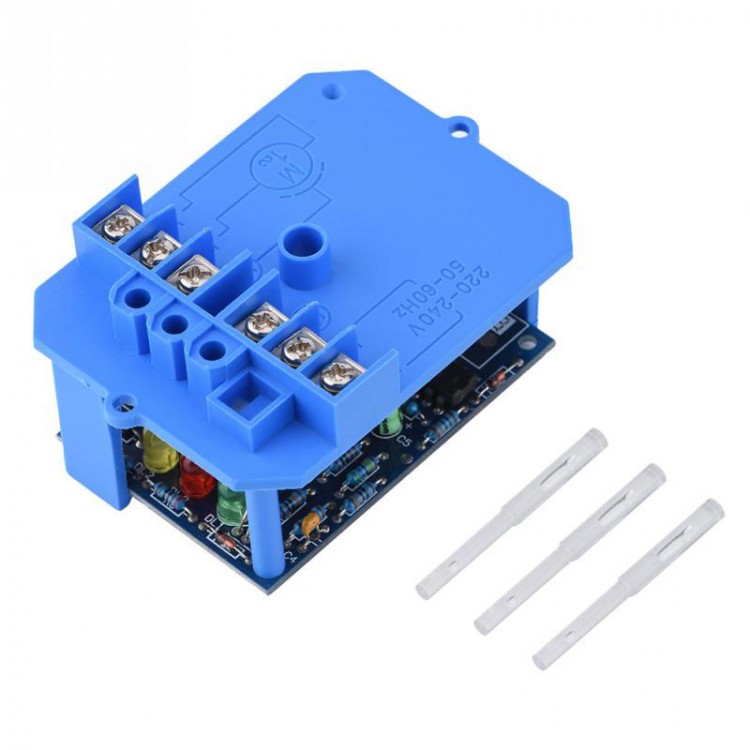

Water Pump Pressure Controller EPC-2 Circuit Board Electronic Switch Module Panel 220V-240V 50-60Hz
Specification:
Rated Voltage: 220V-240V
Frequency: 50 / 60Hz
Maximum Current: 10A
Maximum Power: 1.5KW
Starting Pressure: 1.5bar
Maximum Working Pressure: 10bar
Interface thread: R1"
Protection Level: IP65
Maximum Working Temperature: 60℃
Cable size: cable diameter 7.5-9MM
Features:
-This is an electronic circuit board used for water pump pressure controller.
-The rated voltage is 220V to 240V AC, and the maximum current is 10A.
-Start pressure is 1.5 bar, and maximum working pressure can be up to 10 bar.
-This circuit panel is made of high quality material, designed with precise electronic components, featuring long service life.
Package Included:
1 x Water Pump Controller Circuit Board
