Waterproof 12V to 28V 840W Boost Power Converter 30A DC/DC Step-up Voltage Regulator Module

Availability: In stock, usually dispatched in 1 business day

  • Price:$110.87
  • Price in reward points: 1109 Reward Points: 11
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $108.65 $106.44 $103.11 $98.67 Contact US
Quantity:

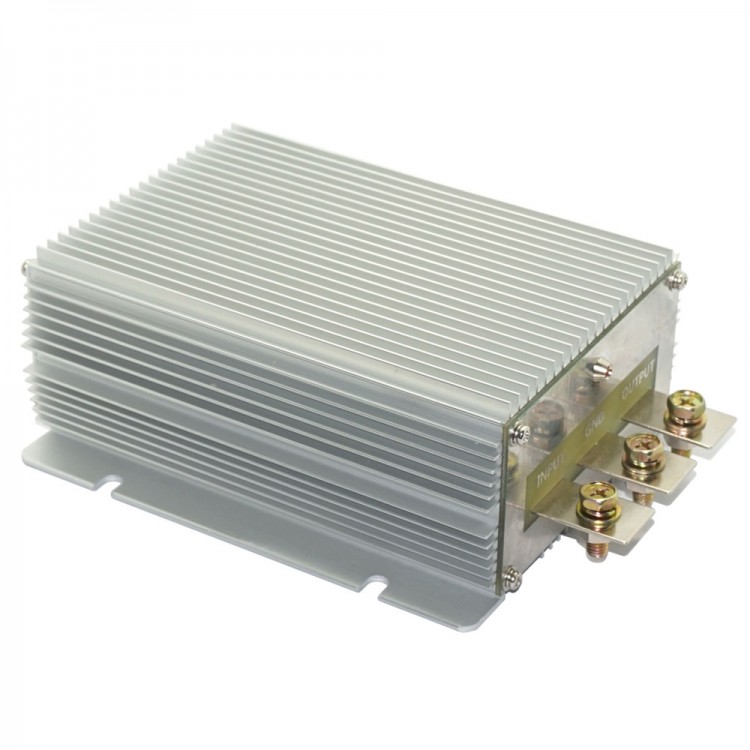

IP68 Waterproof 12V to 28V 840W Boost Power Converter 30A DC/DC Step-up Voltage Regulator Module

Specification:
- Die-Cast Aluminum Housing with epoxy sealed containers
-  Anti-shock protection
- Light weight and ultra-compact size
- More than 90% power conversion efficiency
- Built-in  over/under-voltage input, overload, over-heat and short circuit fully protection
- Auto-recovery when converter is back to normal operating
- Stable and reliable performance
- Easy and simple installation

Specifications:

- Input voltage: 12V DC
- Input voltage range: 9 ~ 16V DC
- Output voltage: 28V DC
- Converter effeciency:up to 96%
- Output current: 30A (max), 840W
- Operating temperature: -30°C ~ +75°C
- Wire lengths: 150mm (6")
- Construction: Die-cast aluminum casing, Epoxy sealed potting
- Waterproof degree: IP68
- Product size:150x127x63mm
- Mounting hole distance:88mm

Package included:
- 1 x Waterproof 12V to 28V 840W Boost Power Converter 30A DC/DC Step-up Voltage Regulator Module
