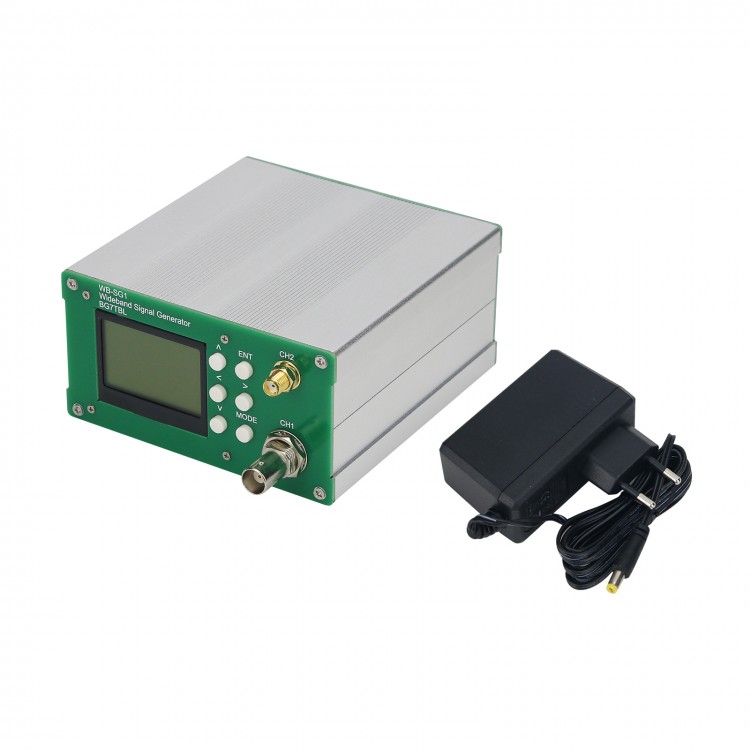

WB-SG1 Wideband Signal Generator 1Hz-22G RF Signal Source Device Adjustable Power WB-SG1-22G
Specifications:
- Model: WB-SG1-22G
- Overview: 1Hz-22GHz wideband output, CH2 with amplitude adjustment, built-in OCXO, and external reference
- CH1 frequency range: 1Hz-250MHz
- CH1 step: 1Hz-19.999999MHz/1Hz, 20MHz-250MHz/10Hz
- CH1 output amplitude: 3.3Vpp
- CH1 interface type: BNC
- CH2 frequency range: WB-SG1-22G: 44M-22GHz
- CH2 step: 1Hz
- WB-SG1-22G CH2 band on-off modulation
- CH2 reference output power: +5DBM to -7dBm at 1G
- Reference output power of each frequency point of CH2: 1G/8DBM; 2G/7.3DBM; 3G/8DBM; 4G/8.7DBM; 5G/9.9DBM; 6G/8.5DBM; 7G/4.5DBM; 8G/5.2DBM; 9G/4.4DBM; 10G/3.4DBM; 11G/4.3DBM; 12G/4.6DBM; 13G/3.0DBM; 14G/3.0DBM; 15G/1.7DBM; 16G/-1.4DBM; 17G/-4.9DBM; 18G/-6.4DBM; 19G/-6.5DBM; 20G/-8.3DBM
- CH2 output impedance: 50 ohms
- CH2 interface type: SMA
- Internal reference frequency: 10MHz
- Internal reference type: constant temperature crystal oscillator
- Internal base year aging: 0.5Hz
- 10M reference output port power: 5dBm
- External reference input power range: 0dBm to +20dBm
- Operating modes: CH1 spot frequency mode, CH2 spot frequency mode, CH1 frequency sweep mode, CH2 frequency sweep mode
Front Panel's Functions:
MODE: operating mode conversion
ENT: input data
<>^V: Left/right/up/down buttons
CH1: Channel 1 output
CH2: Channel 2 output
Rear Panel's Functions:
10M REF INPUT: external 10M reference input
10M REF OUTPU: 10M reference output
USB: USB port
STD ADJ: internal OCXO frequency fine tuning
ON/OFF: switch
With a DC socket
Specifications:
- Power supply: 11.7-12.5V, start: <0.5A, stability: <0.25A
- Dimensions: 106*55*105mm (LxHxD)
- Weight: 350g
- Accessory: 1pcs DC 12V power adapter
Package Included:
- 1 x Set of Signal Generator
Optional Battery Parts:
1. External Battery Parts: with 3pcs 12V 2.6AH 18650 batteries
2. Internal Battery Parts: built-in 2pcs 2.6AH 18650 batteries
Note:
- If battery parts are needed, please contact us to cover the cost.
