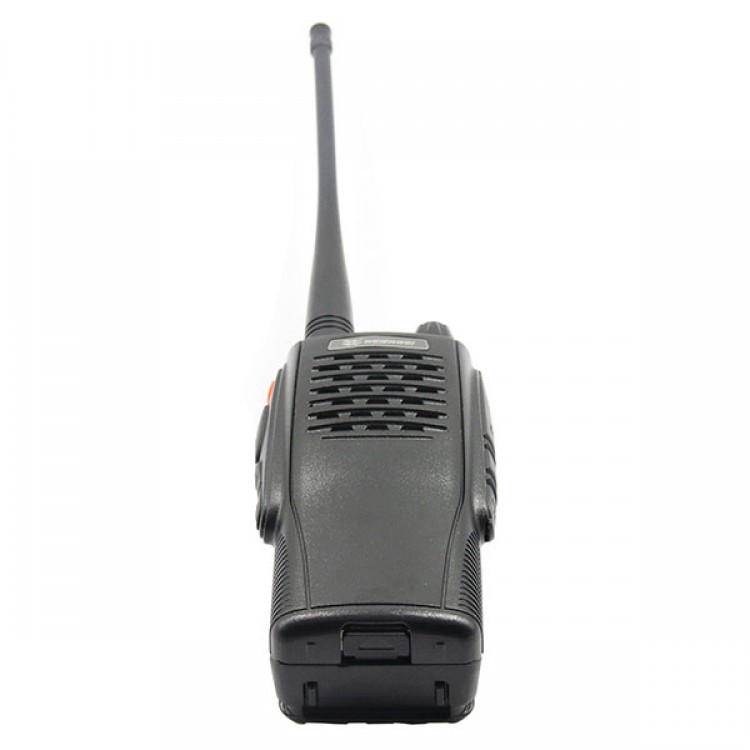

WEIERWEI Walkie Talkie VEV-V10 UHF 400-480MHz 99CH 10W 2xAntenna Handheld Transceiver UHF Radio

Description

Model

VEV-V10

Frequency Range

UHF:400-480

Channel capacity

99

Output power

10W

Operating Voltage

7.4V

Antenna Impedance

50 ohm

Working Temperature

-20ºC—50ºC

Frequency Spacing

12.5/25kHz

Battery capacity

3500mAh

Color

Black

Communication distance

3-5km(Downtown)6-20km(In the open area)

Dimension(Exclude antenna)

120x60x40mm

Weight(Include Battery)

256g

Feature

CTCSS/DCS

50 CTCSS / 105 DCS

Waterproof level

Rain proof

High/Low power switchable

Yes

Noise suppression function

Yes

Ultra bright flashlight

Yes

Emergency alarm function

Yes

Prompt radio number

Yes

Charging adapter can be directly inserted into the machine

Yes

Large capacity battery

Yes

Communication distance

Yes

Scanning function

Yes

Key Lock/Unlock Function

Yes

Squelch

Yes

Monitor function

Yes

Power saving function

Yes

TOT function

Yes

Chinese and English voice prompt

Yes

PC software or Manual programmable

Yes

Specification

RF power output

0.5W-10W

Modulation type

F3E

Modulation distortion

<5%(300-3000Hz)

Max freq deviation

<5kHz (1000kHz when 100%)

Sensitivity(12dB SINAD)

0.16µV

Selectivity

55dB

Adjacent channel selectivity

>=70dB

Noise respond

>=60dB

Audio power output

500mW when distortion less than 10%

Audio distortion

<5%

Operating bandwidth

±3.75kHz/±7.5kHz
