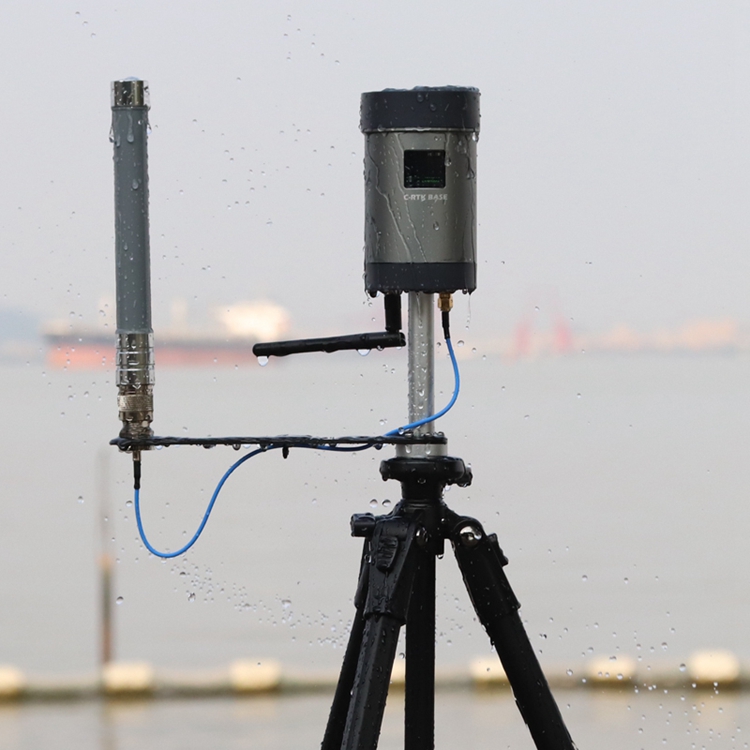

Whole Set of RTK BASE Station High Precision GPS Base Station for Drone Measuring Position Mapping

Whole Set of RTK BASE Station High Precision GPS Base Station for Drone Measuring Position Mapping

Description:
The new RTK-BASE differential high-precision GPS base station system has built-in multi-star single-frequency RTK receiver module, P9 over-the-horizon data transmission module and WIFI communication module. Its high capacity ensures 12 hours of continuous operation, and fits for LINUX system. Two working modes enable it to be used in drones, unmanned vehicles and the like.

1. Built-in RTK Receiver Module:
With built-in high-performance RTK multi-star single-frequency receiver module, it has a 72-channel channel. And it supports GPS L1 C/A, GLONASS L1OF, BeiDou B1I satellites. The RTK refresh rate is 8HZ and the receiving sensitivity is −160 dBm.

2. Fit for Linux System:
RTK-BASE adopts ARM chip architecture to fit for LINUX system. Through reliable and flexible LINUX system, it can expand the application to meet the needs of users in different industries.

3. Two Working Modes:
Multi-point Mode:


RTK-BASE will receive the RTK raw data and transmit it to the drones in the same group through the built-in digital transmission for receiving, and the drone receiving the data is not limited by the number. The built-in P9 digital transmission can reach up to 30KM, and the built-in RTK module has a baseline length of up to 10KM.

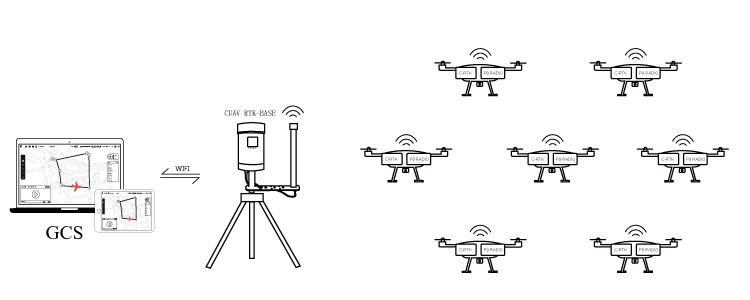

Single-point Mode:

RTK-BASE encapsulates the received RTK raw data with mavlink and transmits hotspots via WIFI. The user can directly communicate with the drone through a mobile phone or a computer ground station, and the drone can also directly receive RTK and mavlink interaction data.

4. Built-in WEB Server:
The WK-BASE WEB management interface can be accessed through WIFI. Through the WEB management interface, you can view RTK signal status and power information in real time, and can configure RTK operation mode, parameters and P9 data transmission, and also upgrade and restore RTK-BASE.

5. Large Capacity:
Thanks to its built-in 7000mAh 7.4V capacity and PMU management, it can work continuously for 12 hours. It supports 12V direct charging and external solar charging, thus making 7*24 hours operation possible.

6. Integrated OLED Display:

The OLED screen displays the current operating mode, battery status, RTK status, and associated drone status. With IP65 level, it can be used in harsh environments.

7. Built-in 16G Memory:
Gifted with 16G storage space, it can be used to extend the storage base station RTK raw observation data for post-difference calculation, etc.

8. Stellar Application Scenarios:

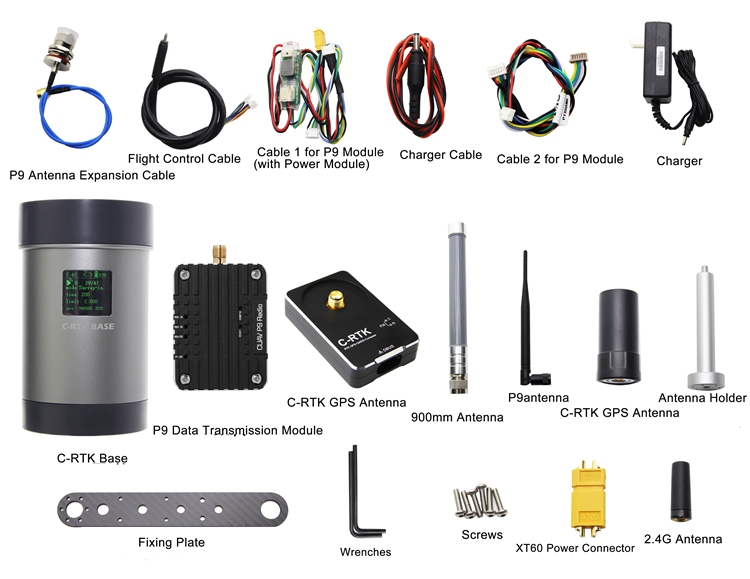

Package Included:
