Wideband RF Signal Generator Power Regulation Broadband Support External Reference WB-SG1 1Hz-20G

Availability: In stock, usually dispatched in 1 business day

  • Price:$516.78
  • Price in reward points: 5168 Reward Points: 52
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $506.44 $496.11 $480.61 $459.93 Contact US
Quantity:

Wideband RF Signal Generator Power Regulation Broadband Support External Reference WB-SG1 1Hz-20G

Description:

The signal generator is with 1Hz-20GHz broadband output, 10M-20G with amplitude adjustment, built-in OCXO. It supports connection to external reference.

Features:

- CH1 frequency range: 1Hz-200MHz
- CH1 stepping: 1Hz-19.999999MHz/1Hz, 20MHz-200MHz/10Hz
- CH1 output amplitude: 3.3Vpp
- CH1 interface type: BNC
- CH2 frequency range: 10MHz-20GHz
- CH2 stepping: 10Hz
- CH2 reference output power: + 5DBM to -7dBm @ 1G
- CH2 output impedance: 50Ω
- CH2 interface type: SMA
- Internal reference frequency: 10MHz
- Internal reference type: constant temperature crystal
- Internal base year aging: 0.5Hz
- 10M reference output power: 5dBm
- External reference input power range: 0dBm to + 20dBm
- Operating modes: CH1 dot frequency mode, CH2 dot frequency mode, CH1 sweep mode, CH2 sweep mode

Front Panel Function: MODE: running mode conversion
- ENT: input data
- Buttons <> ^ V: left / right / up / down buttons
- CH1: Channel 1 output
- CH2: Channel 2 output

Rear Panel Function: 10M REF INPUT: external 10M reference input
- 10M REF OUTPUT : 10M reference output
- USB: USB port
- STD ADJ: Internal OCXO frequency fine-tuning
- ON/OFF: Switch
- 11.7-12.9V Port: DC socket

Specifications:
- Power supply: 11.7-12.5V, start: <0.5A, stable: <0.25A
- Dimensions: 106 * 55 * 105 mm (LxHxDepth)
- Weight: 350g

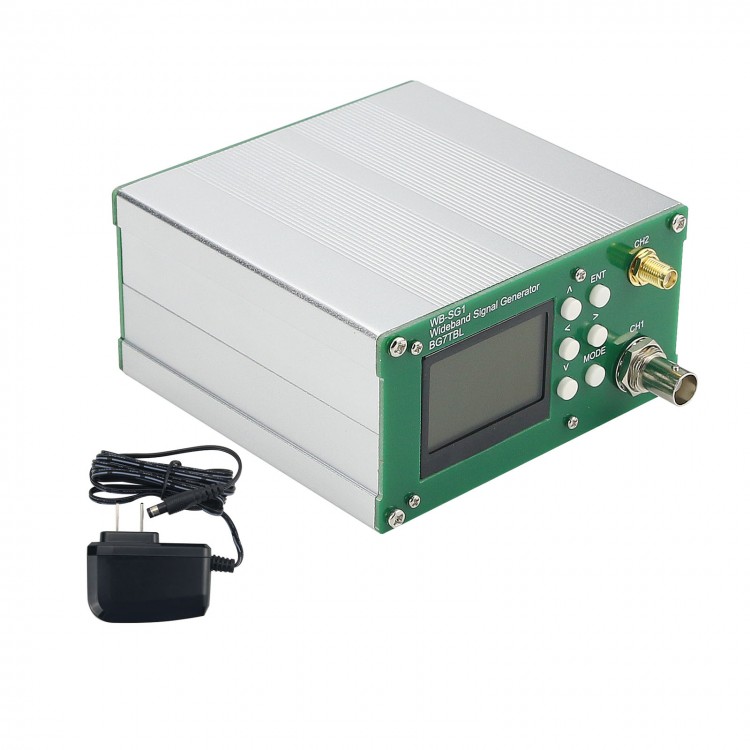

Package Included:
- 1 x Signal Generator
- 1 x DC 12V Power Adapter

Optional Battery Parts:
1. External Battery Parts: with 3pcs 12V 2.6AH 18650 batteries
2. Internal Battery Parts: built-in 2pcs 2.6AH 18650 batteries

Note:
- If battery parts are needed, please contact us to cover the cost.
