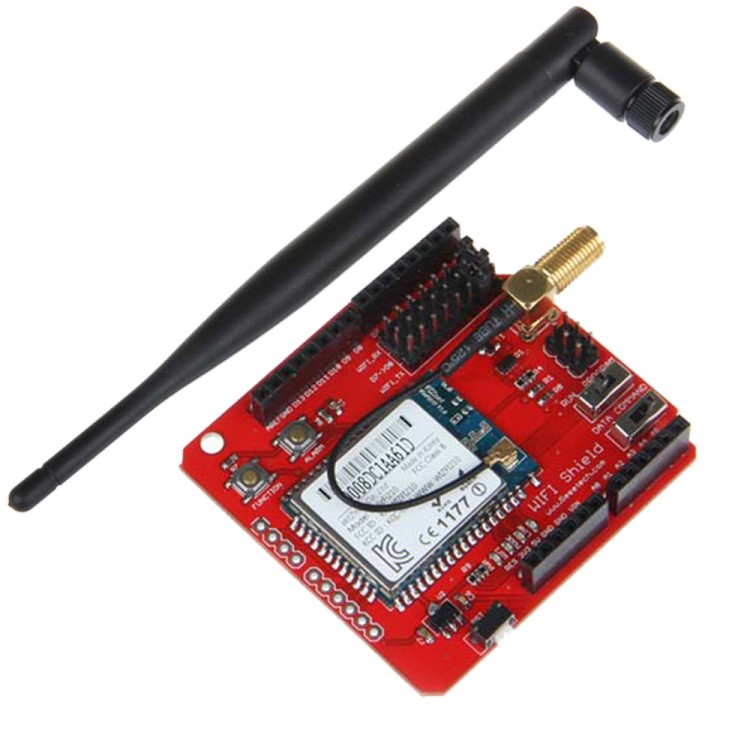

WiFi Shield V2.1 Low-Power Wireless WIFI Module with 3db Antenna for Arduino DIY

Availability: In stock, usually dispatched in 1 business day

  • Price:$51.92
  • Price in reward points: 519 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $50.88 $49.84 $48.29 $46.21 Contact US
Quantity:

WiFi Shield V2.1 Low-Power Wireless WIFI Module with 3db Antenna for Arduino DIY

Description:

WizFi210 is a dynamic power management can be used to achieve low power consumption (standby: 34.0μA; reception: 124mA; Output: 126mA) in WIFI module. Relative to other market other WIFI module, the power consumption is relatively low. If you use WizFi210 to design products, its power consumption is relatively low, and you can set the standby mode (ie when the product needs to start long-term, but do not require the long run. In this case, may not need to run at the time, the standby mode is set, reduce waste power. When you want to be run, and then wake up).
Based WizFi210 of providing TTL level serial port WIFI wireless module to the bridge IEEE802.11b / g / n wireless communications. Any device with TTL serial port can easily establish a wireless network, remote management and control. Internal integration of multiple communication protocols and encryption algorithms. Simply set can be realized using a variety of occasions. Arduinos compatible interface specification, convenient to the Arduinos project.

Specification:
1. Standard Arduinos laminated design, can be easily plugged into a standard Arduinos, MEGA, Romeo and other controllers
2. Embedded IEEE802.11b / g / n wireless network
3. Support Access Point (AP), the client, gateway, and serial-to-peer mode WLAN
4. Supported protocols: UDP, TCP / IP (IPv4), DHCP, ARP, DNS
5. Support WEP, WPA / WPA2-PSK, Enterprise, EAP-FAST, EAP-TLS, EAP-TTLS, PEAP encryption
6. Supports UART Interface
7. Supports TTL serial-to-wireless application
8. Data transfer rate: 11,5.5,2Mpbs (802.11b)
9. Operating voltage: 5V, power consumption <200mA
10. Wireless Standard: IEEE802.11b / g / n
11. Frequency range: 2.4 - 2.497 GHz
12. Output Power: 8dBm ± 1dBm
13. Data Rate: 54Mbps-1Mbps
14. Modulation type SSS, CCK
Fifteen. Dimensions: length 54 × width 49 × height 11mm
16. Weight: about 40g

WizFi210/220 User Manual(EN) V1.10: Click here

Package included:
- 1 x WIFI Module
- 1 x 3db wifi antenna
