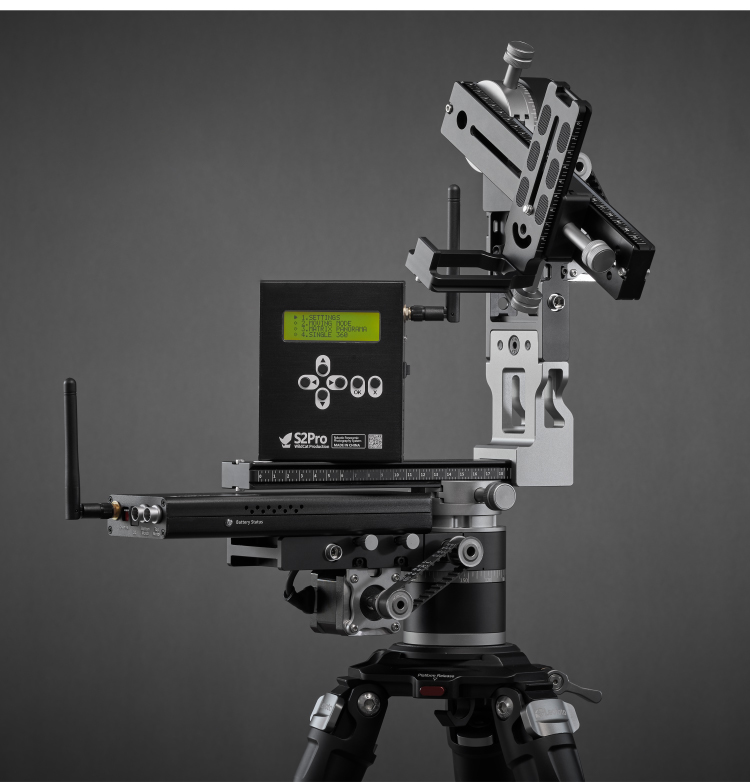

WildCat Production S2Pro Panoramic Tripod Head Electric VR720/Matrix Gimbal Time-lapse Photography

WildCat Production S2Pro Panoramic Tripod Head Electric VR720/Matrix Gimbal Time-lapse Photography

Description:
The S2Pro adopts a larger reduction ratio, providing greater load capacity. At the same time, it physically realizes fine-tuned transmission clearance and two-way fine-tuning quick installation seat to improve the operation stability of your equipment and ensure the accuracy of node adjustment. It adopts 32-bit processor, new driver circuit, replaceable cell structure and 2.4G high-power wireless module to provide stronger program processing capabilities and realize long-distance parameter adjustment and control PTZ; Split modular design: easy to carry and multi-functional free combination use; Ruler ring for easy manual and automatic operation.

The S2Pro can easily handle several dry format photos with flat macromatrixes or spherical 360 panoramic images. Its application also adds a large group photo shaker program and a dual-axis linkage time-lapse program, as well as a new support for area selection in the layered 360 panorama.

Features:
- 2.4G high-power wireless module full-function remote control navigation control process/easy to use
- Colossus matrix photography
- 360 spherical panoramic photography
- Dual-axis time-lapse photography
- Product ring photography turntable
- Remote photography of wildlife
- The modular design combines more delicate textures and exquisite craftsmanship
- Over 100 parts
- The physical gap is adjustable; 90:1 large reduction ratio; Stronger load capacity
- Work in a smooth and stable way
- Easily solve eccentricity problems caused by force deformation, processing tolerances, etc.
- ARM32: New circuit design/proven drive module/standardized process
- High quality electrical components

Specifications:
Main Performance Parameters:
- Model: S2Pro
- PTZ net weight: 3.8KG/8.4LB
- How it works: Manual and automatic
- PTZ license: 5-6KG/11-13.2LB
- Transmission mode: worm gear and worm rod
- Gear ratio: 90:1
- Backlash physically adjustable: Yes
- Soft gap correction: Yes
- User control accuracy: 0.05°
- System control accuracy: 0.005°
- Battery capacity: 2100MAH
- Endurance time: 9-24 hours
- Lens: within 800MM/31.5"
- Camera drive: Focus/shutter
- Standard load as turntable: 20KG/44.1LB
- Main material: aluminum alloy / copper / steel

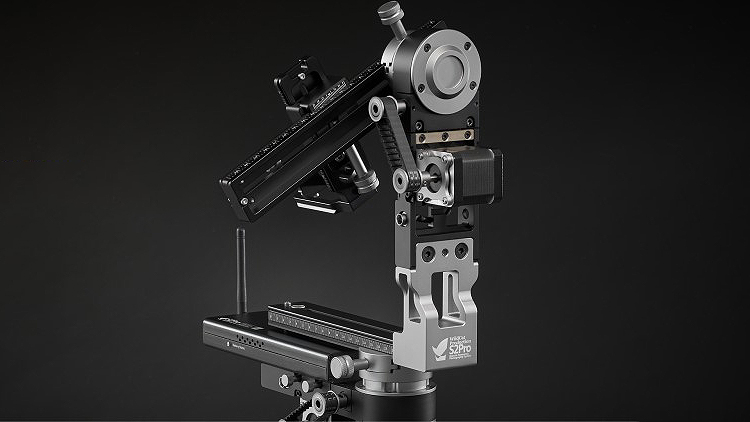

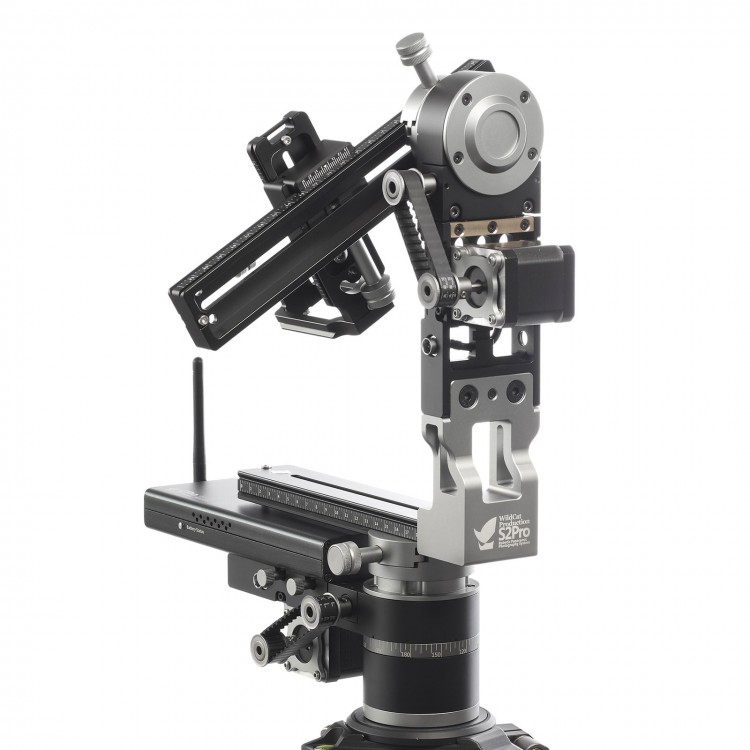

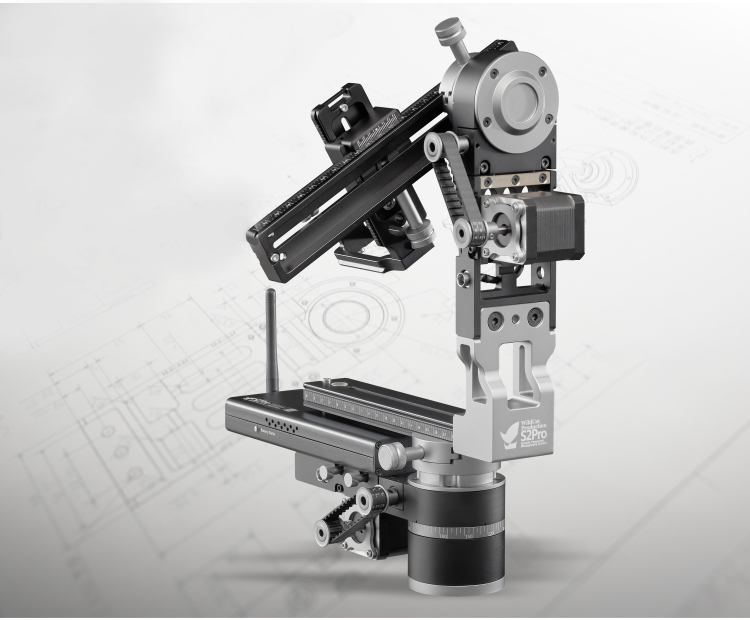

Mechanical Part:
- Transmission mode: synchronous wheel + worm gear
- Gear ratio: 90:1 for both shafts
- Physically adjustable clearance: Physically adjustable
- Clearance soft correction: Yes
- Bi-directional clamping fine-tuning quick mount: Yes (finely adjustable)
- Hinge scale ring: both axes (easy to manual)
- Connector: High quality metal insert

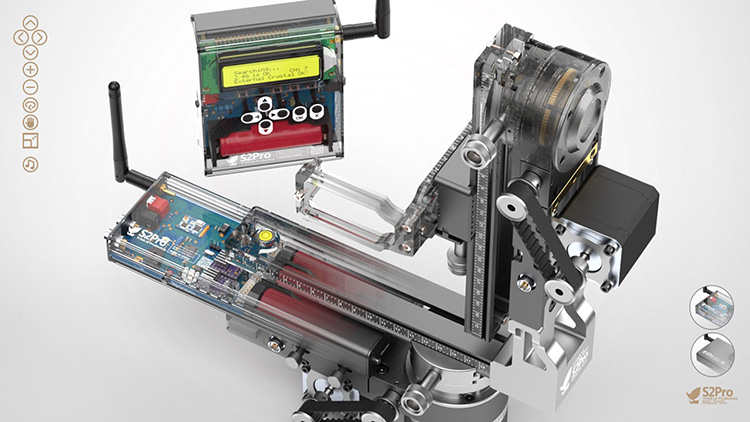

Electrical Parameters:
- Power supply: standard battery cells from regular manufacturers are easy to replace
- CPU: 32-bit ARM
- Crystal: high-precision ceramic resonator for Murata
- Motor drive: High-subdivision drive for TI
- Motor speed range: 1-20 (more delicate and smooth)
- Remote control mode: full-function handheld remote control terminal
- Wireless solution: 2.4G 2000m solution for Nordic
- Camera AF driver: Yes
- Maximum system resolution: 0.005°
- Noise: Approx. 45dB

Application Program:
- Planar Macro Matrix Program: Yes
- Planar Giant Matrix (Multi-shot Function): Yes
- Planar Giant Matrix (focal length): up to 1600mm/63"
- Single-layer spherical panorama program: Yes
- Single-layer spherical panorama (heaven and earth selection): Yes
- Multi-layer spherical panorama program: Yes
- Multi-layer spherical panorama (focal length supported): up to 400MM/15.7"
- Multi-layer spherical panorama (interval selection): Yes
- Multi-layer spherical panorama (layered automatic-calculation): Yes
- Ring object 360 program: Yes

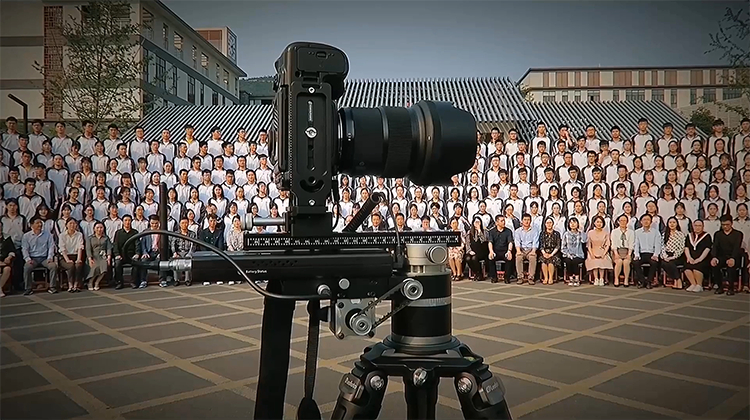

- Group photo transfer program: good support (no pause shooting)
- Group photo turnaround (loop shooting mode): Yes
- Dual-axis time-lapse program: Yes (system resolution up to 0.005°)

Package Included:
- 1 x Set of Panoramic Tripod Head

1. Colossus matrix photography:

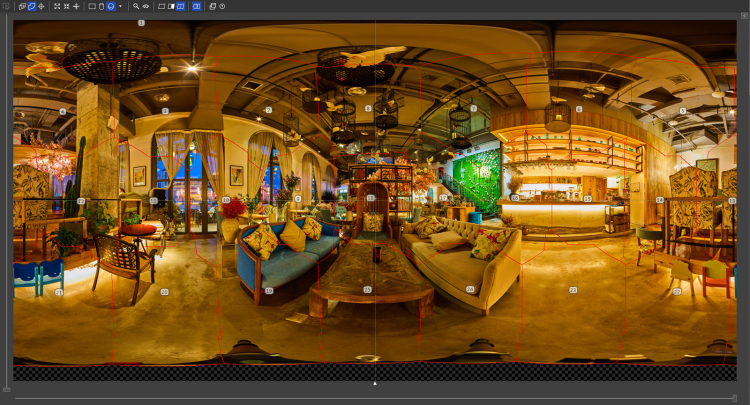

2. Spherical panoramic photography:

It provides VR panoramic images with higher image quality than fisheye with ordinary lenses

2 Modes:
- Single-layer 360 spherical panorama mode for fisheye lenses
- Multi-layer 360 spherical panorama mode for non-fisheye lenses
- MULTILAYER 360 SUPPORTS 400MM LENSES AT FULL FRAME AND PROVIDES ZONE SELECTION FUNCTION

3. Big Picture (Match medium format):

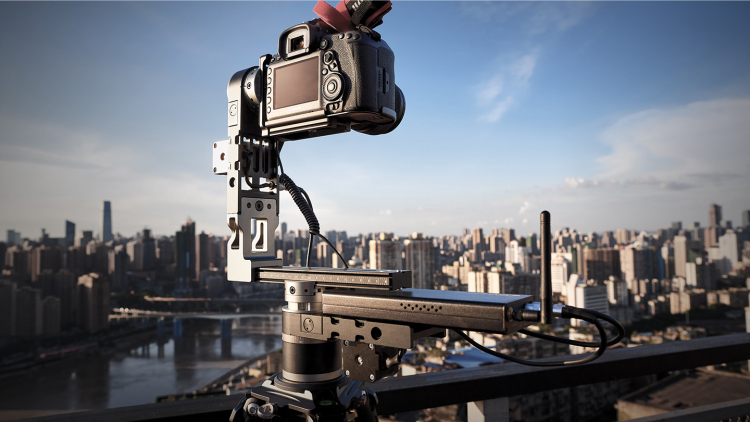

4. Dual-axis time-lapse photography:
Support delay video and delay static connection

5. Used with turntable:

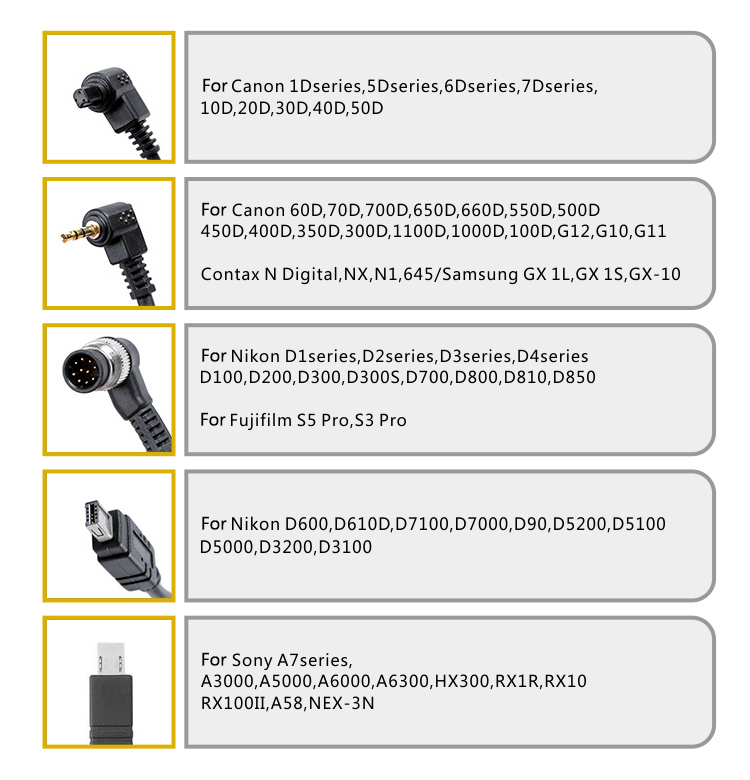

Each S2Pro device comes by default with the following five categories of conventional shutter cables:
