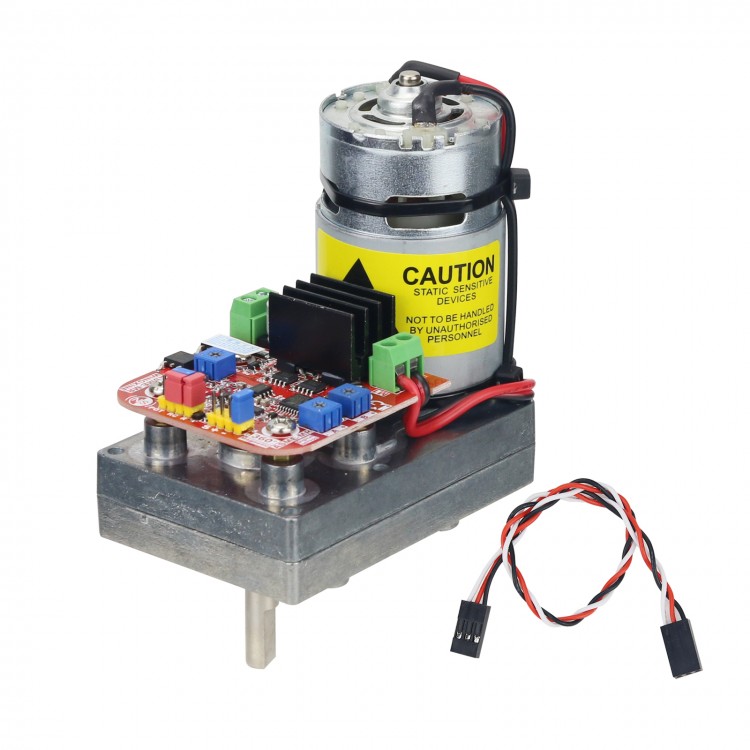

WINGXINE ASME-MR Series Digital Servo High Power 360° Magnetic Encoder 400Kg.cm Thickened Gearbox

WINGXINE ASME-MR Series Digital Servo High Power 360° Magnetic Encoder 400Kg.cm Thickened Gearbox

Demonstration Video:
http://v.youku.com/v_show/id_XMzg2NDkyMzAzNg==.html?spm=a2h3j.8428770.3416059.1

Advantages:
1. Use its digital port to directly read sensor data, and truly return the angle information. It is not the other way to read the chip voltage value to judge the angle
2. Users can set the origin. It is no longer necessary to consider the installation position first, just adjust the origin setting knob on the servo after installation to complete the origin setting. The origin can be memorized in the servo and will not be lost
3. The real 360-degree controllable range

Features:
- Suitable for servo controllers, wireless remote controllers for model airplanes and analog voltage control
- Alloy gear high power motor high torque output
- Aluminum alloy gearbox body is ultra-lightweight
- Easy to install and durable to use

Application:
- Heavy-duty motion control of arm joints and leg joints of large robots
- Industrial automation production line manipulator control
- Precise control of valve angle
- Large camera pan/tilt remote control
- Various occasions requiring large torque angle control

Rated Parameters:
- Rated voltage: 12V~24V/DC (11V/MIN~30V/MAX, limit voltage)
- No-load current: <500mA (current limit: 5A. It is recommended to use a switching power supply or battery greater than 5A)
- Limit angle: ±180° or 0°~360° (MAX). Servo has electronic limit adjustment
- Control method: 1. RC mode: 1ms pulse mode: 1ms~2ms (pulse width)/50Hz (frequency), suitable for wireless remote control. 2ms pulse mode: 0.5ms~2.5ms (pulse width)/50Hz (frequency), suitable for multi-channel servo controller mode. 2. Analog voltage mode: 0V-5V input voltage (0V corresponds to 0°, 5V corresponds to 360°)
- Control resolution: 360° corresponds to 12Bit resolution (4096), ARM32-bit MCU, digital port to read magnetic encoding data
- Material: Gear and shaft: alloy steel; gearbox body: cast aluminum
- Weight: 550g
- Mechanical life: >1,000,000 times/full load (conservative value)

Limit Parameters:
- Limit voltage: 11V~30V/DC (MAX)
- Current limit: 5A±0.2A (MAX)
- Working angle: ±180° or 0°~360° (MAX)
- Control methods: 1. RC mode: 1ms pulse mode: 1ms~2ms (pulse width)/50Hz~333Hz (frequency); 2ms pulse mode: 0.5ms~2.5ms (pulse width)/50Hz~333Hz (frequency). 2. Analog voltage mode: 0V-5V input voltage. 0V corresponds to 0°, 5V corresponds to 360°
- Weight: 510g-560g

Package Included:
- 1 x Set of Digital Servo

Note:
- Battery is not included in the package.
