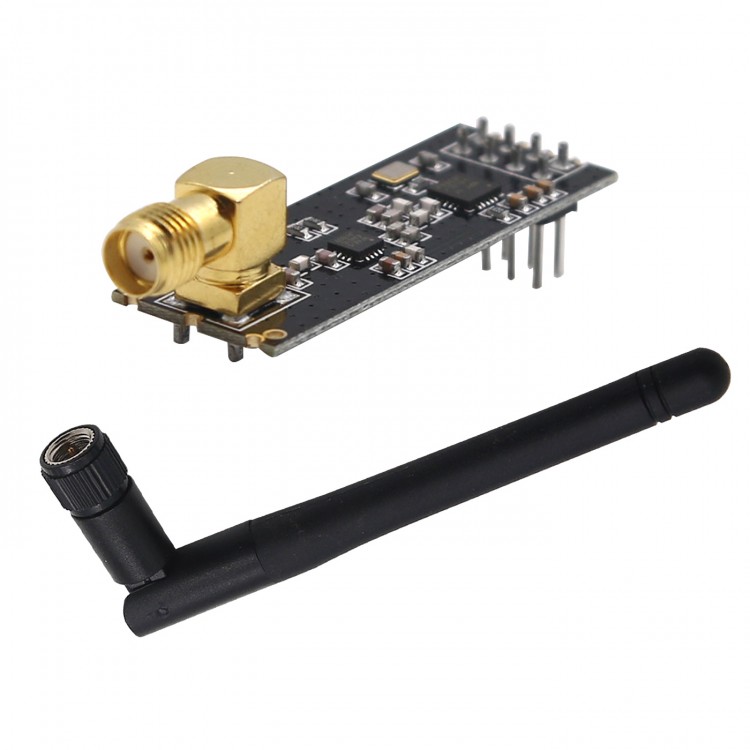

Wireless Transceiver Module 2.4G 1100m NRF24L01+PA+LNA Communications Module
+ SMA Antenna
Features:
- This wireless Transceiver module is an easy and suitable module if you want to setup your wireless communication system with low cost!!
- It can achieve a good balance between wireless transition performance and cost!
- You can easily add it with your own MCU/ARM/PIC/AVR/STM32 system!
- What's more, this nRF24L01+ module is designed with power amplifier and SMA antenna
- This allowed you to use the wireless communication up to 1000 meters! (No barrier)
Applications:
- For wireless remote control, somatosensory equipment
- For active FRID & NFC
- For smart grid and smart home
- For wireless audio
Specifications:
- Frequency: 2.4GHz~2.5GHz
- Operating voltage: 3 ~ 3.6V (Recommend 3.3V)
- Max. Output Power: +20dBm
- Working Current for Transmitting: 115mA Max.
- Current for Power-Down Mode: 4.2μA Max.
- Working Temperature: -20℃
- Receiving Sensibility@2Mbps: -92 dBm
- Receiving Sensibility@1Mbps: -95 dBm
- Receiving Sensibility@250 Kbps: -104 dBm
- PA Gain: 20dB
- LNA Gain: 10dB
- LNA Noise Class: 2.6dB
- Antenna Gain (Peak): 2Dbi
- Effective Range: 520m @2MB Rate (Empty Place)
Package Included:
- 1 x A Wireless Transceiver Communications Module
- 1 x SMA Antenna
