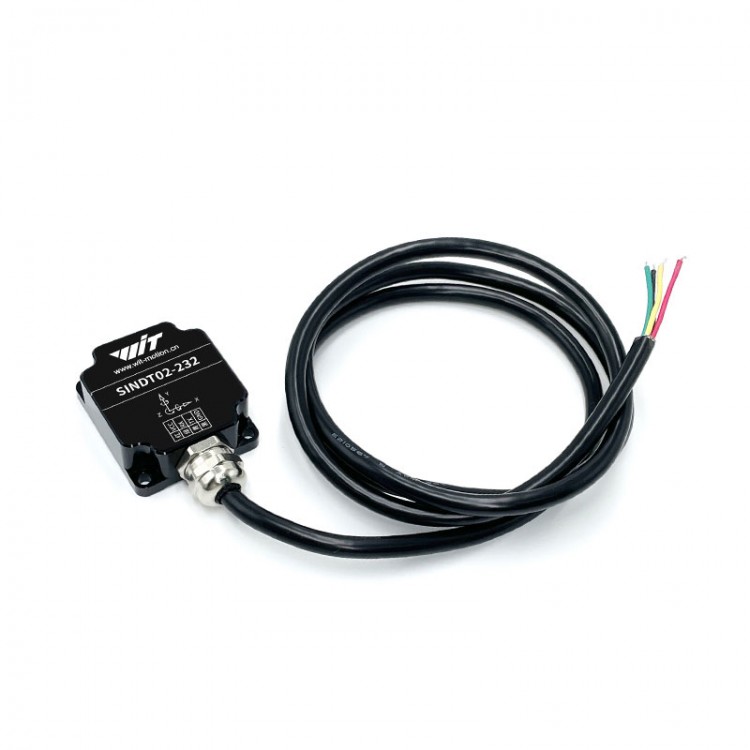

WIT SINDT02-232 Dual-axis Tilt Sensor 5-Meter Posture Angle Measurement Built-in Kalman Filter Algorithm

WIT SINDT02-232 Dual-axis Tilt Sensor 5-Meter Posture Angle Measurement Built-in Kalman Filter Algorithm

Description:
- The product is equipped with a high-precision tilt angle measurement unit, which measures the static gravitational acceleration and converts it into tilt angle changes, allowing the sensor output to measure the tilt and pitch angles relative to the horizontal plane.
- The output mode RS232, RS485, or TTL level interface is optional.
- The product has high precision, good stability, simple use, and is widely used in industrial inclination angle measurement. It is an ideal choice for industrial automation control and platform measurement posture.
- IP67 level protection, aluminum shell, strong resistance to external electromagnetic interference, stable performance, suitable for long-term operation in harsh industrial environments.
- The product is suitable for measuring in static or slowly changing dynamic environments, and is not suitable for rapidly changing dynamic environments.
- Application: elevator equipment, car chassis tuning, tower crane equipment, medical devices, tilt angle turntable equipment, solar tilt angle monitoring.

Specification:
- Product name: tilt sensor
- Power supply voltage: 5V - 36V
- Working current: common mode 25mA
- Communication method: serial TTL/232/485 (optional), all for Modbus protocol
- Output data range: Euler angle, X+/-180°, Y+/-90°(Y-axis is only for SINDT02 version)
- Angle precision: X, Y axis 0.1°
- Retrieval rate: Modbus is one question and one answer mode, with a maximum frequency of 200Hz
- Baud rate: 9600bps
- Installation method: vertical/horizontal
- Product size: L x W x D = 41 x 36 x 15mm
- Cable length: 1 meter
- High seismic performance: > 3500g
- Protection level: IP67
- Working temperature: -40 ~ +85°C

Package Included:
- 1 x Tilt Sensor
