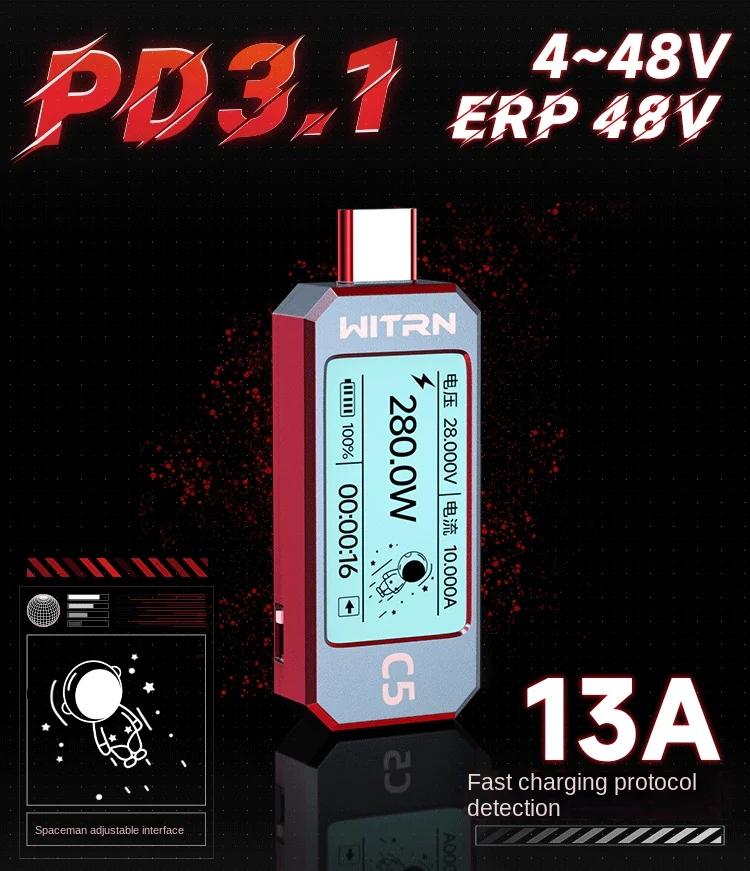

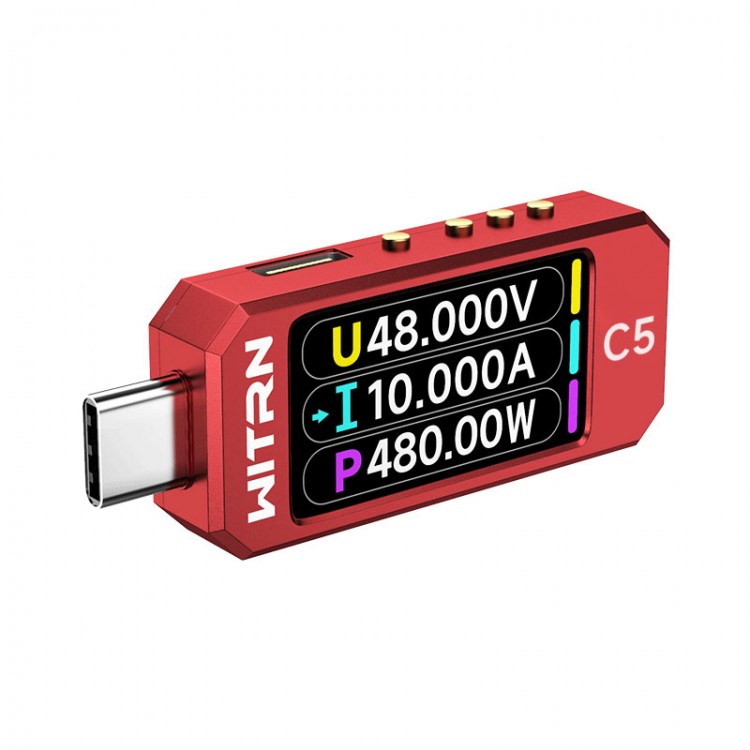

WITRN C5 Red USB Tester INA228-20bit ADC Voltage Current Meter DC4-48V PD3.1 Fast Charger Tester EPR Cheater

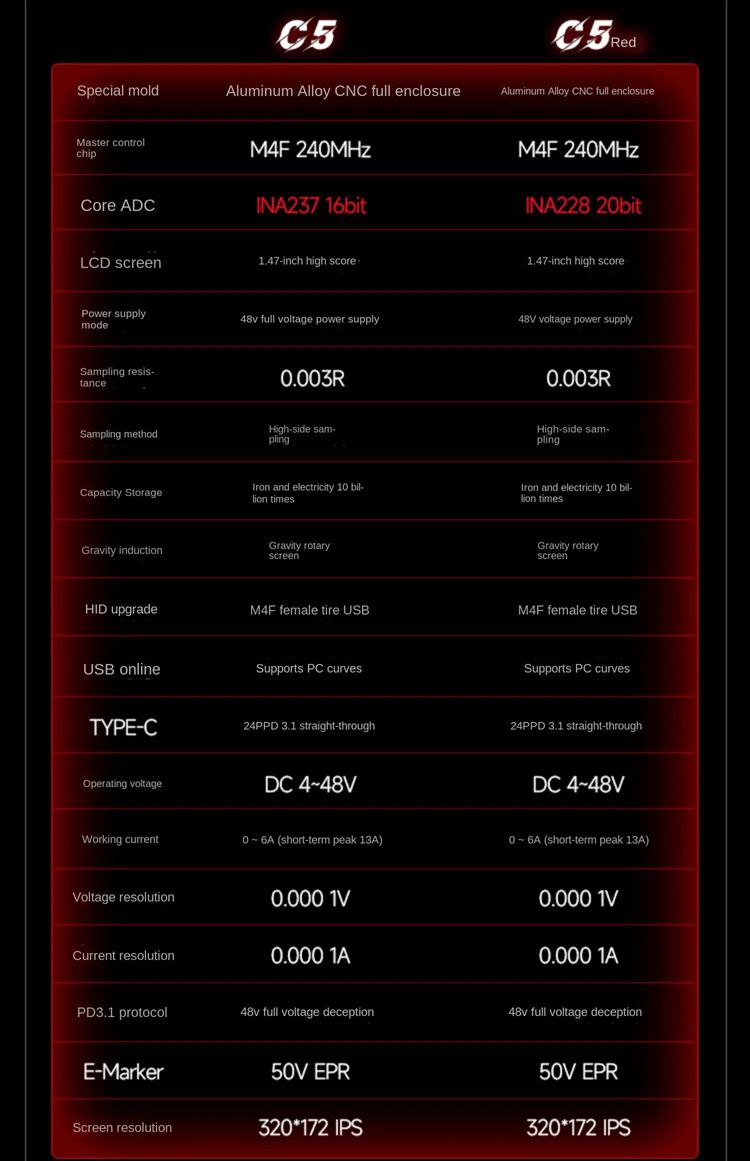

Specification:
- Special mold: aluminum alloy CNC full enclosure
- Main control chip: M4F 240MHz
- Core ADC: INA228 20bit
- LCD screen: 1.47-inch
- Power supply: 48V power supply
- Sampling resistance: 0.003R
- Sampling method: high side sampling
- Capacity storage: Ferroelectricity 10 billion times
- G-sensor: Gravity spinning screen
- HID upgrade: M4F USB
- USB on-line: support PC curves
- Type-C: 24P PD3.1 direct through
- Working voltage: DC4 - 48V
- Working current: 0 - 6A (short-time peak value of 13A)
- Voltage resolution: 0.0001V
- Current resolution: 0.0001A
- PD3.1 protocol: 48V full voltage cheating
- E-Marker: 50V EPR
- Screen resolution: 320 x 172 IPS
Package Included:
- 1 x USB Tester
