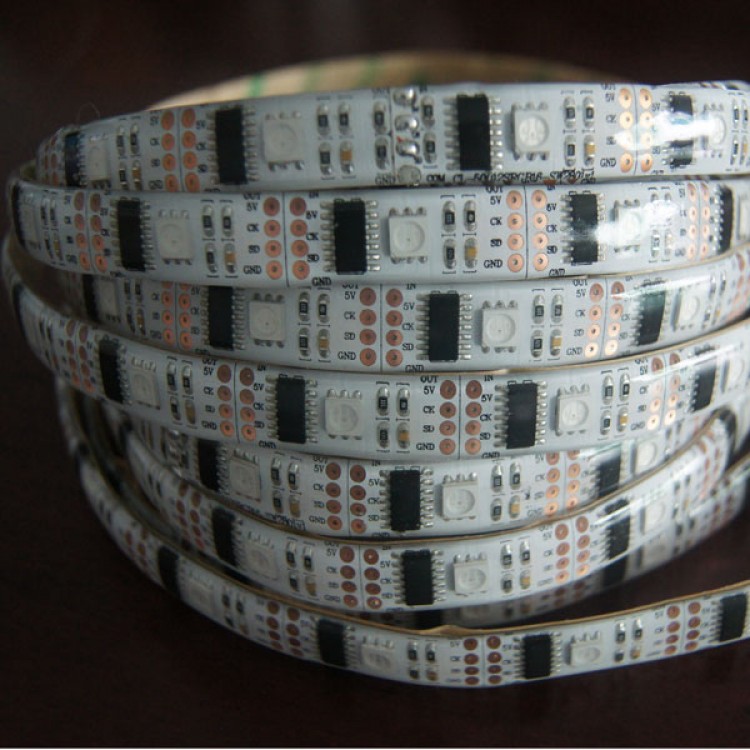

WS2801 5050 Dream Color RGB LED Strip 5 Meters 12V 36led/meter

Availability: Out Of Stock

  • Price:$76.48
  • Price in reward points: 765 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $74.95 $73.42 $71.13 $68.07 Contact US
Quantity:

WS2801 5050 Dream Color RGB LED Strip 5 Meters 12V 36led/meter
Specfication:
- Input Voltage: 12V
- Waterproof:no
- Work Power:9w
- Work Current: 3A
- LED Type: SMD5050
- LED quantity: 36leds/m
- Work temperature: -20+60
- Viewing Angle: 120degree
- Life Span: 50,000hours
- Package: 5meters/reel
- Strip length: strip length can be cut every 3 leds
- Easy install: 3M adhesive tape on the back
- Size:5000*10*3.5mm,5000*8*3.5mm &5000*12*3.5mm

Led strip ws2801 Connection:
R/Y/B/G/W Single color waterproof LED strip series: There are two wires for the product(Wire Pathway 22AWG; Wire Length 150MM), the Red one is connected to the posivtive section of the power supply while the Black one is for the cathode. If use the controller, the Red one is connected to the positive section of the controller while the Black one is for the cathode. See the diagram for better understanding:

led strip ws2801 Installation:
3M double glue on the back of the product. Rive off the protection paper then install the product to anywhere you need to.

led strip ws2801 Installation Notice:
1) Make sure the connection is correct according to the diagram.
2) Pay attention on the parameters limit on the above form. DO NOT run over the peak value.
3) Keep the surface of installation clear and level avoid breaking off.
4) Avoid the crook area is the just the position of LED and other components, in order to protect the product and extend the life span of the product
