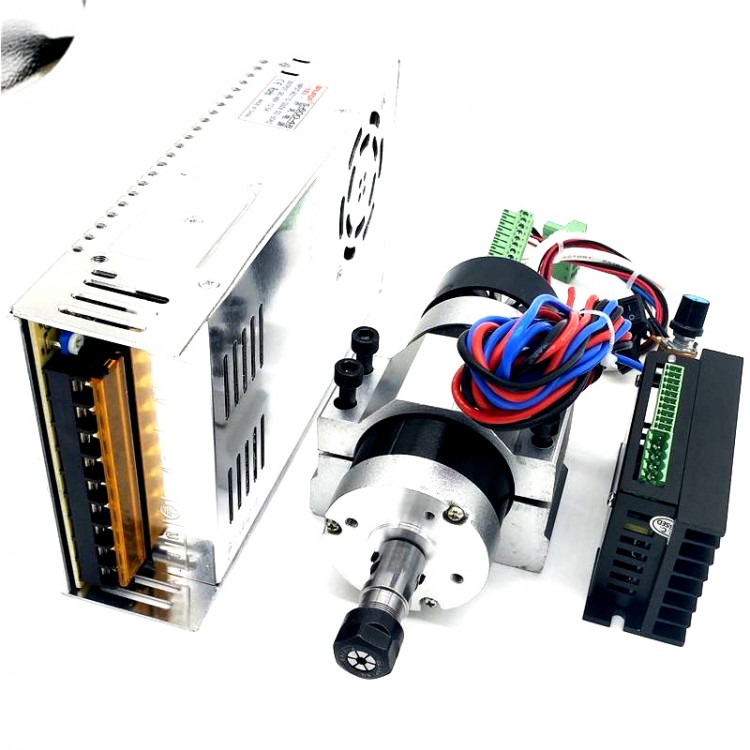

WS55-22 ER11 Brushless Spindle Motor Spindle + Drive + Power + Fixed clip 500W 4 Piece/Set

WS55-22 ER11 Brushless Spindle Motor Spindle + Drive + Power + Fixed clip 500W 4 Piece/Set

Features:

- No brush, low interference.

  Brushless motor removes the brush. The most direct change is that there is no spark generated when the brush motor is running,

  which greatly reduces the interference of the spark to the remote control radio.

- Low noise, smooth operation.

  The brushless motor has no brush. The friction is greatly reduced during operation, the operation is smooth, and the noise is much lower.

  This advantage is a great support for the stability of the equipment.

- Long life, low maintenance costs.

  Without brush, brushless motor wear is mainly on the bearing. From a mechanical point of view, brushless motor is almost a maintenance-free motor, only need some dust removal maintenance.

  Compared, we know where the advantages of the brushless motor relative to the brushed motor are.

Specifications:

- Spindle Motor: New brushless DC motor

- Working Voltage: 4 8VDC requires brushless drive, motor can run

- Power: 500W

- Speed: 12000r/min

- Torque: 0.6 (N.m)

- Insulation Resistance: >2 megohms

- Insulation Dielectric Strength: 400V

- Diameter:

  front and rear cover: 57MM

  motor middle part: 55MM

- Length of the collet part: 43mm of the shank (including nut and core)

- The diameter of the collet part: 20mm

- Total motor length: 185mm (including fan clamping position and motor)

- Spindle net weight: 1.4KG

- The radial runout of the main shaft: about 0.01-0.03.

- Can be used to engrave materials such as metal or non-metal.

- This spindle with strong air cooling which can work for a long time.

Package Includes:

1 x Brushless Spindle Motor

1 x Drive

1 x Power

1 x Fixed Clip

Note:

1.Kit can be connected to 110V or 220V

2. This kit defaults to 3.175MM collet, if need other specifications of the chuck, please leave a message.

    This motor is used by many DIY users whose reaction is good: high speed & low noise, suitable for engraving PCB, acrylic, drilling Holes and so on.
