ER11 BLDC 500W Motor Driver Controller Engraving Machine Principal Axis Stationary Fixture CNC PCB Switching Power Supply for Four Suites

ER11 BLDC 500W Motor Driver Controller Engraving Machine Principal Axis Stationary Fixture CNC PCB Switching Power Supply for Four Suites

Product Specification:
- 500 w ER11 spindle brushless motor parameters:
- Working voltage: 48 VDC need drives, brushless motor to operate
- Power: 500 w
- Speed: 12000 r/min
- Distance: 0.6 (N.m)
- Insulation resistance: > 2 ohms
- Insulation dielectric strength: 400 v
- 55 mm diameter:
- Spindle net weight: 1.4KG
- The spindle radial runout about 0.01 to 0.03.
- Can be used for metal or non-metal materials such as carving. The spindle with forced air cooling, can work long hours.

Brushless main features:
- Brushless, low interference, in addition to the brushless motor brush, the most immediate change is no brush spark generated when the motor running, thus greatly reduce the electric spark interference of remote radio equipment.
- Low noise, smooth operation, brushless motor without brush, less friction force during operation, smooth operation, low noise will be many.
- Long life and low maintenance costs, less brush, brushless motor wear is mainly on the bearing, from the mechanical point of view, brushless motor is almost a free maintenance of the motor

Description:
- WS55-180 and WS55-220 are a high performance,cost-effective 3 phase BLDC motor controller.Voltage range is from 20VDC to 50VDC.The controller can drive the DLDC motor with HALL or without HALL.
- The driver is based on advanced technology and be provided with high speed、high torque、low noise、low vibration,over current protection,overload protection,less phase line protection,phase line short protection、alarm output、speed signal output、 positive negative rotation control etc.This controller can be used in small equipment 、Electric Power Tools、bump、exhaust Fan、Jade grinding machine、Vibrating motor etc

Product Instruction:Click here

Working and storage environment:
- Storage temperature: -20℃～ +65℃
- Working and storage environment: environment: Avoid direct contact with dust, fumes and corrosive gases; temperature: 0-45℃; humidity < 80%,No frost, frost free; Vibrating: 5.9m/S² MAX
- Storage humidity : 0~95%RH
- Dimension: 96mm（long）*67mm（wide）*37mm（high)
- Weight: Approximate 195g

Note：
Try running the motor low speed first,then increase the speed and load gradually after there is no problem；
If the motor fever soon and feel very hot about tens of seconds to one or two minutes，stop the motor,then check the cause of the problem.

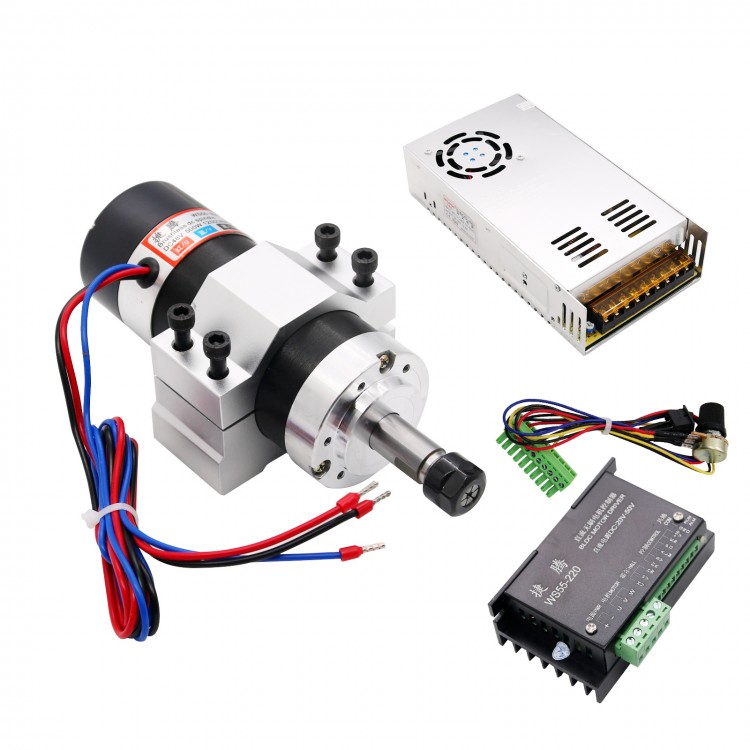

Product list:
- 1  X  Engraving machine principal axis
- 1  X  Stationary fixture
- 1  X  BLDC Motor Driver
- 1  X  Switching power supply
