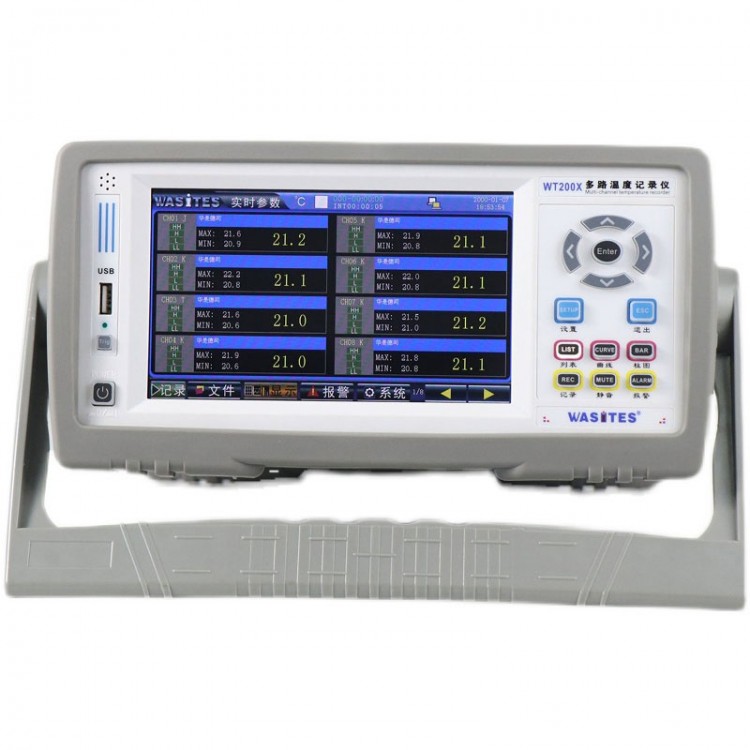

WT200X Multi-Channel Temperature Recorder (WT200-64 64CH) 7" Touch Screen & Temperature Rise Display

WT200X Multi-Channel Temperature Recorder (WT200-64 64CH) 7" Touch Screen & Temperature Rise Display

Features:

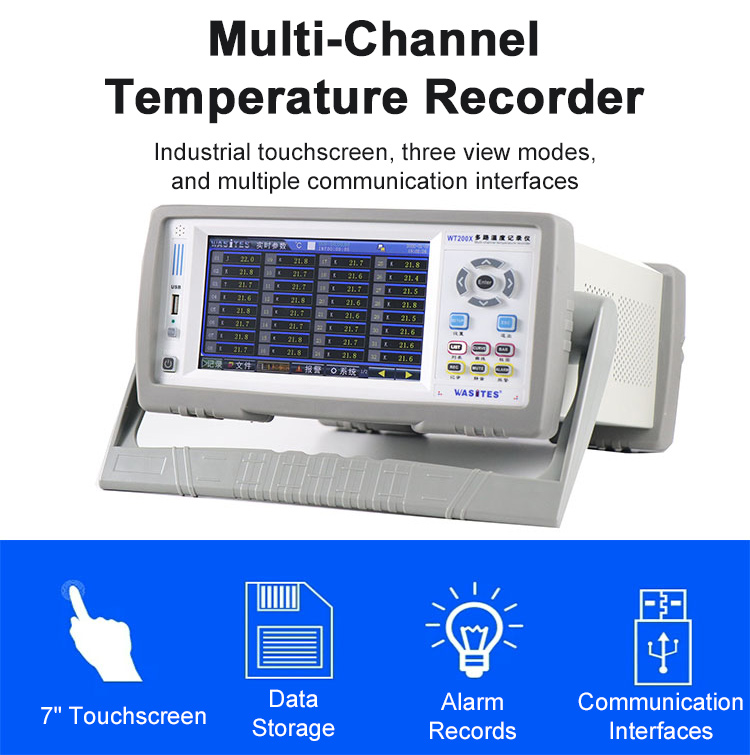

* Multi-channel temperature data logger with 7-inch industrial touchscreen, three view modes, and multiple communication interfaces
* 7-Inch HD IPS industrial-grade LCD touchscreen, 1024×600 resolution
* Equipped with a 32-bit high-speed MCU data processor and 24-bit high-speed AD measurement chip, providing fast response, high accuracy, and stable reliability
* Multi-interface display: file list, real-time list, bar chart (temperature rise), real-time/recorded/analysis curves, alarm list, system settings, etc.
* User-friendly operation prompts and intuitive design make the device easy and simple to operate.
* Supports multiple sensor inputs: K, J, E, T, N, S, R, B.
* Basic measurement accuracy: 0.2°C ±2 digits (excluding sensors), cold-junction compensation accuracy: 0.5°C.
* Each channel supports independent error correction Y=KX+B.
* Each channel can use a different thermocouple type.
* Customizable channel names can be exported to EXCEL.
* Channel-to-channel voltage difference up to AC/DC 350V (higher voltage customizable), with strong anti-interference capability.
* File list display. It supports up to 128 files. Each storing up to 130,000 data sets. With a 1-second interval, continuous recording can last up to 194 days. Recording intervals are adjustable (hh:mm:ss).
* Recorded files can be deleted or exported individually or in batches. Direct export to EXCEL via USB or PC.
* Standard four communication interfaces: USB, RS485, RS232, LAN (network).
* Supports detailed file curve analysis, X/Y-axis coordinate settings, curve panning and zooming, time-axis line movement, temperature value display, and analysis for any selected time period.
* Modular design: each module supports 8 channels, expandable up to 64 channels. Users can expand as needed, with automatic recognition.
* Wide applications: Suitable for industrial equipment inspection, LED and household appliance lighting, electrical appliance testing and maintenance, boiler temperature monitoring, and power/electronic circuit component inspection.

Specifications:
* Display Mode: 7-inch TFT True Color Industrial Touch Screen
* Display Format: Real-time List Values, Real-time Bar Chart, Real-time Curve Graph
* Record Query: View historical curves and historical alarms on the device
* Number of Channels: 8 channels per module, up to 64 channels supported
* Supported Thermocouples: K, J, E, T, N, S, R, B
* Basic Accuracy: 0.2°C + 2 digits (excluding thermocouple error)
* Measuring Range: -200 to 1820°C (based on thermocouple type range)
* Cold Junction Compensation: Accuracy: 0.5°C
* Resolution: 0.1°C
* Calibration: Independent error correction per channel, formula Y = kx + b (x = measured value)
* Number of Files: 128 (cyclic recording)
* File Capacity: One file can record up to 130,000 data sets (channel number not differentiated)
* USB Port: Export record files; can also read software files stored in internal memory
* Recording Duration: With 1-second recording interval, continuous recording up to 194 days; Total duration = Recording Interval × 194 days
* Sampling Speed: Per channel – Fast: 0.1s, Medium: 0.5s, Slow: 1s
* Channel Isolation: AC/DC voltage up to 350V, high-voltage live measurement, excellent anti-interference capability
* Control Output: Standard 2 relay outputs (hysteresis and delay adjustable)
* Alarm Sound: One buzzer (sounds on any alarm, can be muted)
* Recording Interval: HH:MM:SS, adjustable from 1s to 24h:60m:60s
* Communication Interface: USB, RS485, RS232, LAN (all standard)
* Power Supply: AC85–265V ±10%, Frequency 50Hz/60Hz, Power consumption <10W
* Thermocouple: Each channel equipped with one 2-meter K-type thermocouple

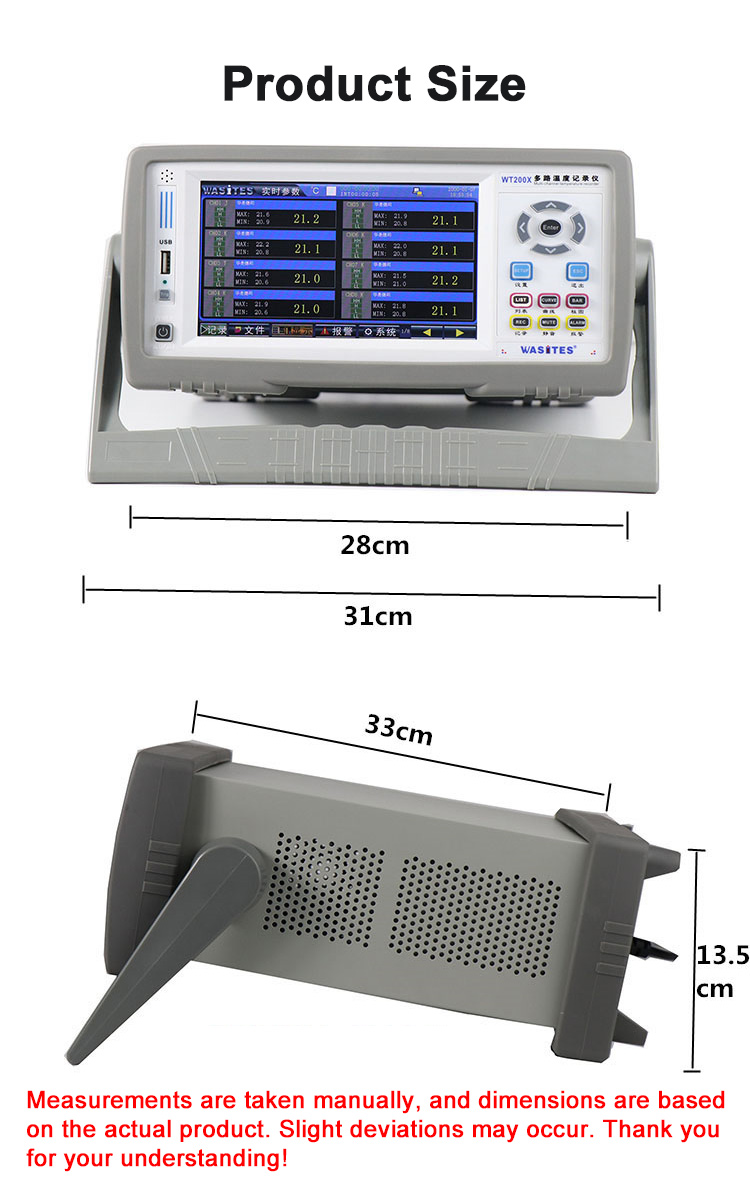

* Dimensions: Width 31cm × Depth 33cm × Height 13.5cm
* Environmental Conditions: 5–40°C, 20%–80%RH (non-condensing)

Packing List:
* 1 × Main Unit
* 1 × PC Data Cable
* 1 × Power Cable
* 1 × Certificate of Conformity / Warranty Card
* 1 × USB Communication Cable
* 1 × Test Report
* 1 × Set of Thermocouple Wires
* 1 × User Manual

Packaging Details:
* Weight: 6.23kg
