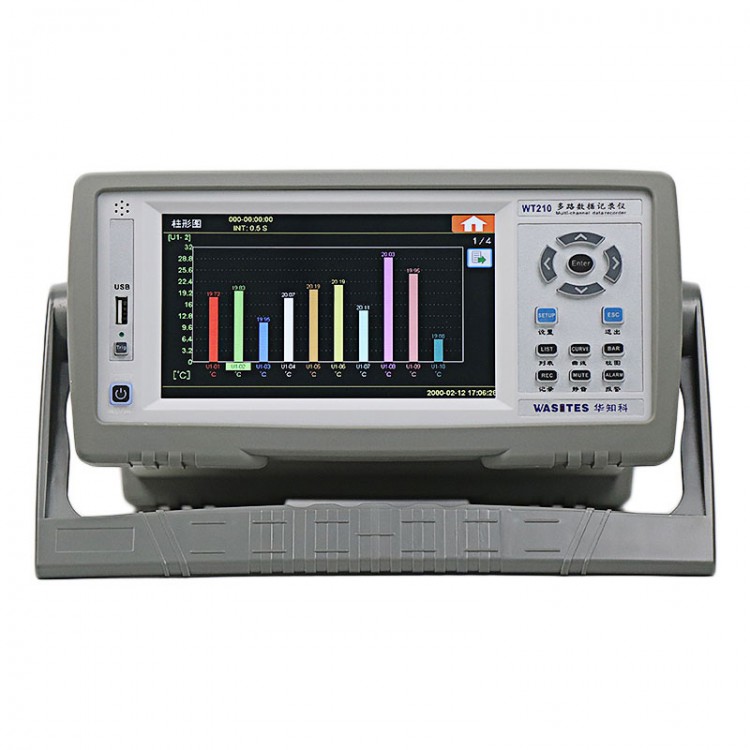

WT210-10 10CH Temperature Logger Multi-Channel Data Recorder 7" Touchscreen Supports Universal Input

WT210-10 10CH Temperature Logger Multi-Channel Data Recorder 7" Touchscreen Supports Universal Input

Features:
* Multi-channel data analyzer with one-touch quick recording. Easy-to-use, intuitive operation.
* Industrial-grade 7-inch touchscreen, 800×480 resolution, full HD viewing angle.
* High-speed measurement, universal input: DC 0-100V measurement input, 350V channel-to-channel isolation for live testing.
* Fast performance and strong data analysis capability. Even at 0.1-second recording intervals, it can record for 200 hours (~8.33 days). Pre-loaded with 23 units and supports custom units.
* Dimensions: 310 mm × 330 mm × 135 mm
* Five Main Display Functions: File List, numerical list, curve list, bar chart list and alarm list
* Seven Setting Pages: Unit settings, conversion settings, display settings, recording settings, alarm settings, communication settings, and system settings
* Wide Applications: Widely used for equipment temperature monitoring and maintenance, environmental temperature monitoring, evaluation of electronic circuit components, cold storage monitoring, motor and machine temperature measurement, LED lighting temperature measurement, fuel cell temperature measurement, furnace temperature management, and vehicle development and in-vehicle component evaluation

Specifications:
* Display Screen: 7-inch HD IPS Touch Screen, 1024×600 Resolution
* Measurement Module: 10 channels per module; one unit supports up to 4 modules
* Interface Display: File List, Value List (Statistics List), Real-time Curve (Record Curve), Real-time Bar Chart, Real-time Alarm (Historical Alarm), System Settings
* Statistical Values: Real-time Value, Maximum Value, Minimum Value, Average Value, Peak-to-Peak Value
* Thermocouple Measurement: K, J, E, T, N, S, R, B; Resolution: 0.01°C
* RTD Measurement: PT100, Cu50; Resolution: 0.01°C
* Voltage Measurement: 0–100mV, 0.01 V–100V; Resolution: 0.001mV, 0.01V
* Current Measurement: 0–20mA; Resolution: 0.001mA
* Measurement Accuracy:
  ** Thermocouple: 0.2°C + 2 digits (excluding thermocouple error); Cold Junction Compensation Accuracy: 0.5°C
  ** RTD (Resistance Temperature Detector): 0.2°C + 2 digits (excluding RTD error); Cold Junction Compensation Accuracy: 0.5°C
  ** Voltage: ±0.3% of reading + 0.1% of full scale + 2 digits
  ** Current: ±0.3% of reading + 0.1% of full scale + 2 digits
* Measuring Range: -200 to 1820°C (based on thermocouple type)
* Channel Isolation: AC/DC voltage up to 350V; high-voltage live measurement; excellent anti-interference capability
* Sampling Speed: 50ms sampling per channel
* Recording Interval: Minimum 0.1s; interval varies with number of active channels; per channel ≥50ms (H:M:S:mS)
* Calibration: Independent calibration per channel; cold junction calibration
* File Analysis: Historical curves viewable; arbitrary time-range analysis; X/Y axis adjustable; curves can be shifted and zoomed; time markers movable; corresponding temperature values displayed
* File Export: Any file can be exported to USB drive or internal storage
* Alarm: Upper/Lower limit alarm settings; historical alarm records; buzzer sound (can be muted)
* Communication: Standard USB/RS485/RS232/LAN (Ethernet); standard PC software included
* Thermocouple: Each channel equipped with one 2-meter K-type thermocouple
* Custom Name: Each channel can be custom named and exported to Excel
* Power Supply: AC86–265V ±10%, Frequency 50Hz/60Hz, <10W
* Main Unit Size: 310mm × 330mm × 135mm (W×D×H)

Packing List:
* 1 × Main Unit
* 1 × Quality Inspection Report
* 1 × User Manual
* 1 × Certificate of Conformity + Warranty Card
* 1 × Set of Thermocouple Wires
* 1 × Communication Cable A
* 1 × Communication Cable B
* 1 × Power Cable

Packaging Details:
* Weight: 5.63kg
