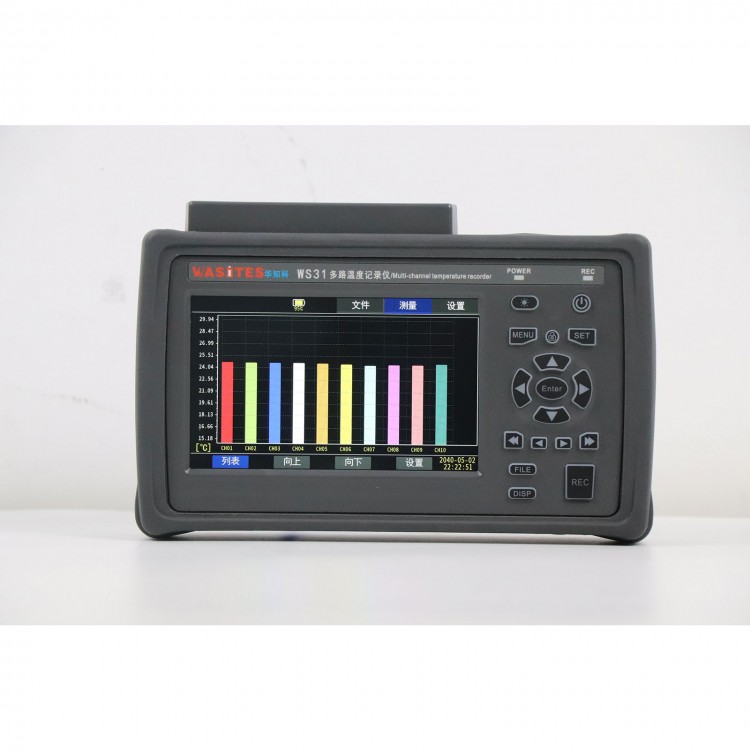

WASITES WS31 10CH Handheld Multi-Channel Temperature Recorder Supports Thermocouples and Pt100 RTD
Description:
The multi-channel temperature recorder features a 32-bit high-speed CPU for data processing and a 5-inch industrial display. It supports K, J, E, T, N, S, R, and B type thermocouple inputs, with three display modes: list, curve, and bar chart, allowing users to read parameters more intuitively. It provides comprehensive functionality to meet the measurement needs of production lines, laboratories, and R&D environments.
The device is widely used in industries such as lighting appliances, power tools, household appliances, motors, electric heating equipment, pharmaceuticals, petroleum, chemical, metallurgy, and electric power, as well as in research institutes, production lines, laboratories, and quality inspection departments.
Custom measurement functions can be configured according to specific requirements, enabling use in more complex application scenarios.
Features:
* The main unit supports 10 channels of thermocouple and RTD input, with a resolution of 0.01℃.
* Equipped with a 5-inch touch screen, it offers list, curve, and bar chart display modes.
* Standard configuration includes 10 × 2m K-type thermocouples; PT100 probes are optional.
* Wide Applications: Ideal for laboratories, R&D, production line monitoring, and quality inspection in industries such as electrical appliances, motors, heaters, pharmaceuticals, chemicals, metallurgy, and power.
Specifications:
* Display Type: 5-inch IPS industrial-grade LCD touchscreen
* Display Mode: Real-time list values, real-time bar chart, real-time curve chart
* Record & Query: Data can only be analyzed and queried via computer software
* Number of Channels: 10 channels
* Thermocouple Types: K, J, E, T, N, S, R, B
* RTD Supported: Pt100
* Basic Accuracy: ±0.2°C + 2 digits (excluding thermocouple error)
* Measurement Range: -200 to 1820°C (depending on thermocouple type)
* Cold Junction Compensation: Accuracy ±0.5°C
* Resolution: 0.01°C
* Number of Files: 20 files (cyclic recording)
* File Capacity: Each file can record up to 200,000 data sets (regardless of channel count)
* Recording Duration: Total duration = recording interval × 46.29 days
* Sampling Speed: 100ms per channel
* Channel Isolation: AC/DC 350V high-voltage isolation
* Control Output: None
* Alarm: Single buzzer (sounds when any alarm is triggered; can be muted)
* Recording Interval: Adjustable, 1-300 seconds
* Communication Interface: Standard USB
* Power Supply: Built-in 5000mAh lithium battery, Type-C charger; DC 5V < 2W
* Thermocouples Included: Each channel comes with one 2m K-type thermocouple
* Dimensions: 195mm × 127mm × 41mm
* Weight: Approx. 1.5kg
* Operating Environment: 5-40°C, 20%-80% RH (non-condensing)
Packing List:
* 1 × Main Unit
* 1 × Adapter & Type-C Data Cable
* 1 × User Manual
* 1 × Certificate of Conformity/Warranty Card
* 1 × Set of K-Type Thermocouple Wires
Packaging Details:
* Weight: 1.11kg
