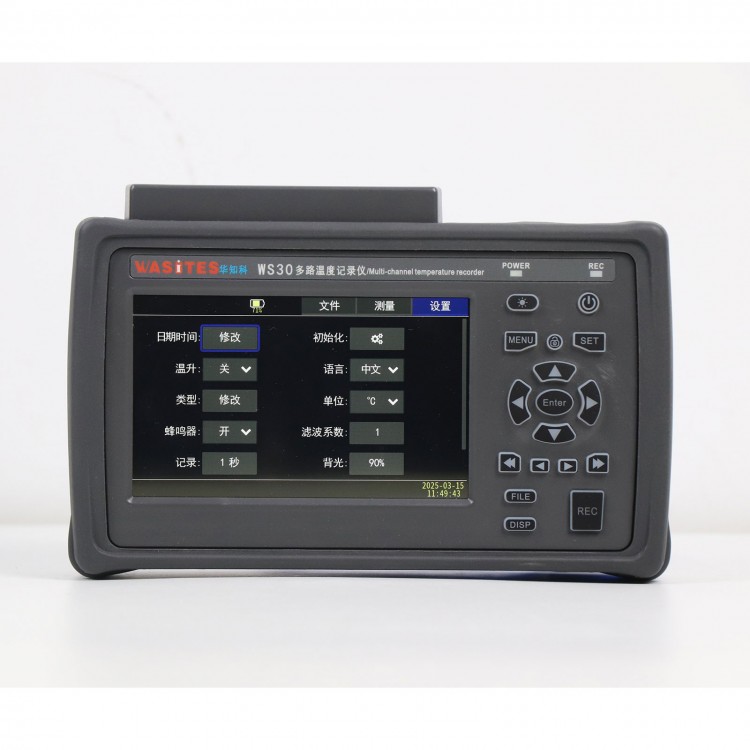

WASITES WS30 10CH Handheld Multi-Channel Temperature Recorder Supports Thermocouple Data Acquisition
Description:
WS30 multi-channel temperature recorder uses a 32-bit high-speed CPU for data processing and a 5-inch industrial display. It supports K, J, E, T, N, S, R, and B type thermocouple inputs, with three display modes: list, curve, and bar chart, allowing users to read parameters more intuitively. It features comprehensive functions to meet the measurement needs of production lines, laboratories, and R&D.
The temperature logger is widely applied in industries such as lighting appliances, power tools, household appliances, motors, electric heating equipment, pharmaceuticals, petroleum, chemical, metallurgy, electric power, research institutes, as well as production lines, laboratories, and quality inspection departments of manufacturing enterprises.
Custom measurement functions can be configured according to different requirements to meet more complex application scenarios.
Features:
* Main Unit: 10 Channels, Thermocouple Data Acquisition
* Resolution: 0.01°C
* 5-inch Touchscreen Display: List, Curve, and Bar Chart
* Standard Configuration: 10pcs K-Type Thermocouples, 2 Meters Each
Specifications:
* Display Type: 5-inch IPS industrial-grade LCD touchscreen
* Display Mode: Real-time list values, real-time bar graph, real-time curve graph
* Record & Query: Data analysis and query only via computer software
* Number of Channels: 10 channels
* Thermocouple Types: K, J, E, T, N, S, R, B
* Basic Accuracy: ±0.2°C + 2 digits (excluding thermocouple error)
* Measurement Range: -200 to 1820°C (depending on thermocouple type)
* Cold Junction Compensation: Accuracy ±0.5°C
* Resolution: 0.01°C
* Number of Files: 20 files (circular recording)
* File Capacity: Each file can record 200,000 data points (all channels included)
* Recording Duration: Total duration = recording interval × 46.29 days
* Sampling Speed: 100ms per channel
* Channel Isolation: AC/DC 350V high-voltage measurement
* Control Output: None
* Alarm: Single buzzer (sounds on any alarm; can be muted)
* Recording Interval: 1-300 seconds, adjustable
* Communication Interface: Standard USB
* Power Supply: Built-in 5000mAh lithium battery, Type-C charger; DC 5V, <2W
* Thermocouples Included: Each channel comes with one 2m K-type thermocouple
* Dimensions: 195mm × 127mm × 41mm
* Weight: Approx. 1.5kg
* Operating Environment: 5-40°C, 20%-80% RH (non-condensing)
Packing List:
* 1 × Main Unit
* 1 × Adapter & Type-C Data Cable
* 1 × User Manual
* 1 × Certificate/Warranty Card
* 1 × Set of K-type Thermocouple Wires
Packaging Details:
* Weight: 1.11kg
