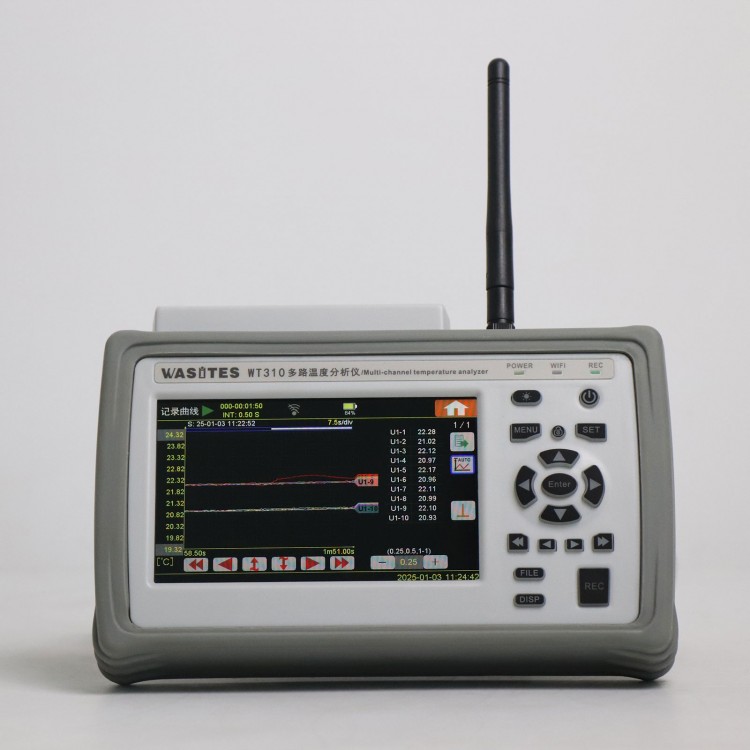

WT310 10CH Multi-Channel Temperature Analyzer for Thermocouple RTD (PT100) & Humidity Acquisition
Advantages:
* The main unit supports 10 channels with wireless communication/expansion
* Supports thermocouple, RTD (PT100), and humidity acquisition, with up to 3 expandable sub-modules
* Resolution: 0.01℃
* 5-inch touch screen display: list, curve, and bar chart
* Standard configuration includes 10 pieces of 2-meter K-type thermocouples
* Optional: PT100 probe, humidity probe
Features:
* High-definition 5-inch IPS industrial-grade LCD touch screen, resolution 800 × 480.
* It uses high-speed MCU data processing and 24-bit high-speed AD measurement chip, providing fast response, high accuracy, and reliable stability.
* Communicates with a computer via wireless connection.
* Wireless connection to the WT-M01 wireless thermocouple unit, enabling measurement of up to 40 temperature channels.
* Wireless connection to WT-M02 humidity unit and WT-M03 PT100 unit, supporting multi-type acquisition (WT310 only).
* Recording interval as fast as 0.1 seconds, with interval settings in HH:MM:SS.SSS format.
* Multi-interface display: file list, real-time list, bar chart, real-time/recorded/analysis curve display, alarm list, system settings, etc.
* It supports real-time detailed X/Y-axis coordinate adjustment, enabling movement up/down/left/right, zoom in/out, moving time marker lines, and displaying corresponding temperature values; intelligent curve adjustment.
* Supports 10, 20, or 40 multi-interface real-time numeric displays.
* Supports multiple sensor inputs: K, J, E, T, N, S, R, B; PT100 (WT310 only).
* Each channel can be set to use a different thermocouple type.
* Customizable channel names, which can be exported to Excel.
* Voltage difference between channels can reach up to AC/DC 350V, providing strong anti-interference capability.
* Each channel can independently set high/low alarm values with audible and visual alarms.
* Independent error correction for each channel: Y = KX + B.
* Built-in 8GB large memory, file list display, supports up to 100 files, each file storing 120,000 data sets; at 1-second intervals, continuous recording can last up to 138 days.
* TYPE-C interface, with OTG functionality, integrates charging, communication, USB drive, and virtual USB drive.
* 18W fast charging, fully charged in 2 hours, maximum use up to 10 hours (Wi-Fi off).
* High-speed USB interface, up to 40 times faster than ordinary MCU full-speed.
* Recorded files can be selected individually or in batches for deletion or export; files can be exported directly to Excel via USB or PC.
Specifications:
* Display Type: 5-inch TFT true-color industrial touchscreen, 800 × 480 pixels
* Display Modes: Real-time list, curve (historical curve), bar chart, current alarms (historical alarms), file record list
* Record & Query: View and analyze curves and historical alarms on device; additional analysis via computer software
* Number of Channels: 10 channels per device, wirelessly expandable up to 40 channels
* Expansion Units:
** WT-M01: Thermocouple wireless unit
** WT-M02: Humidity wireless unit (supports WT310 expansion only)
** WT-M03: PT100 platinum resistance wireless unit (supports WT310 expansion only)
* Supported Thermocouples: K, J, E, T, N, S, R, B
* Supported RTD: PT100 (WT310 only)
* Basic Accuracy: ±0.2°C + 2 digits (excluding thermocouple error)
* Measurement Range: -200 to 1820°C (depending on thermocouple type)
* Cold Junction Compensation: Accuracy ±0.5°C
* Resolution: 0.01°C
* Calibration: Independent error correction per channel: Y = kx + b (x = measured value)
* TYPE-C Interface: OTG function; supports charging, PC communication, USB drive, and virtual USB drive integration
* Number of Files: 100
* Total Capacity: 12 million data sets; recording files can be exported for custom time periods
* Recording Interval: 100ms-2h:59m:59s. Recording interval can be set arbitrarily up to 950ms (minimum 0.1s when 2 channels are enabled).
* Recording Duration: With 0.1s interval, continuous recording up to 13.88 hours; total duration = recording interval × 138.8 hours
* Sampling Speed & Filtering: Single channel fastest: 50ms; filtering coefficient 1-64 (higher coefficient → slower measurement but more stable value)
* Communication Interface: Wireless WiFi (2.4GHz), TYPE-C (USB); standard analysis software included
* Channel Isolation: AC/DC up to 350V high-voltage measurement; strong anti-interference capability
* Alarm: Single buzzer (sounds on any alarm; can be muted)
* Power Supply: Built-in 5000mAh battery, ~10 hours (WiFi off); standard charger included; supports 18 W charging
* Thermocouples Included: Each channel comes with one 2m K-type thermocouple
* Dimensions: 195mm × 127mm × 41mm
* Weight: Approx. 1.5kg
* Operating Environment: 5-40°C, 20%-80% RH (non-condensing)
Packing List:
* 1 × Set of Temperature Recorder
Packaging Details:
* Weight: 1.98kg
