• WYDZ-LAN-10M-6GHz 20DB Gain Broadband Amplifier Broadband RF Amplifier Module with High Flatness

WYDZ-LAN-10M-6GHz 20DB Gain Broadband Amplifier Broadband RF Amplifier Module with High Flatness

Availability: In stock, usually dispatched in 1 business day

  • Price:$19.06
  • Price in reward points: 191 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $18.68 $18.30 $17.73 $16.96 Contact US
Quantity:

WYDZ-LAN-10M-6GHz 20DB Gain Broadband Amplifier Broadband RF Amplifier Module with High Flatness

Application Scenarios:

1. Beidou/GPS receiver
2. Receiver system (FM radio reception, radar reception, etc.)
3. Electromagnetic compatibility receiving system
4. Software defined radio receiver
5. Medium frequency signal amplification

Indicator Parameters:
- Powered by: TYPE-C cable
- Frequency range of module: 10M-6GHz
- Noise figure: 4-5dB (refer to the measured curve for different frequencies)
- Gain: 20DB (refer to the measured curve for different frequencies)

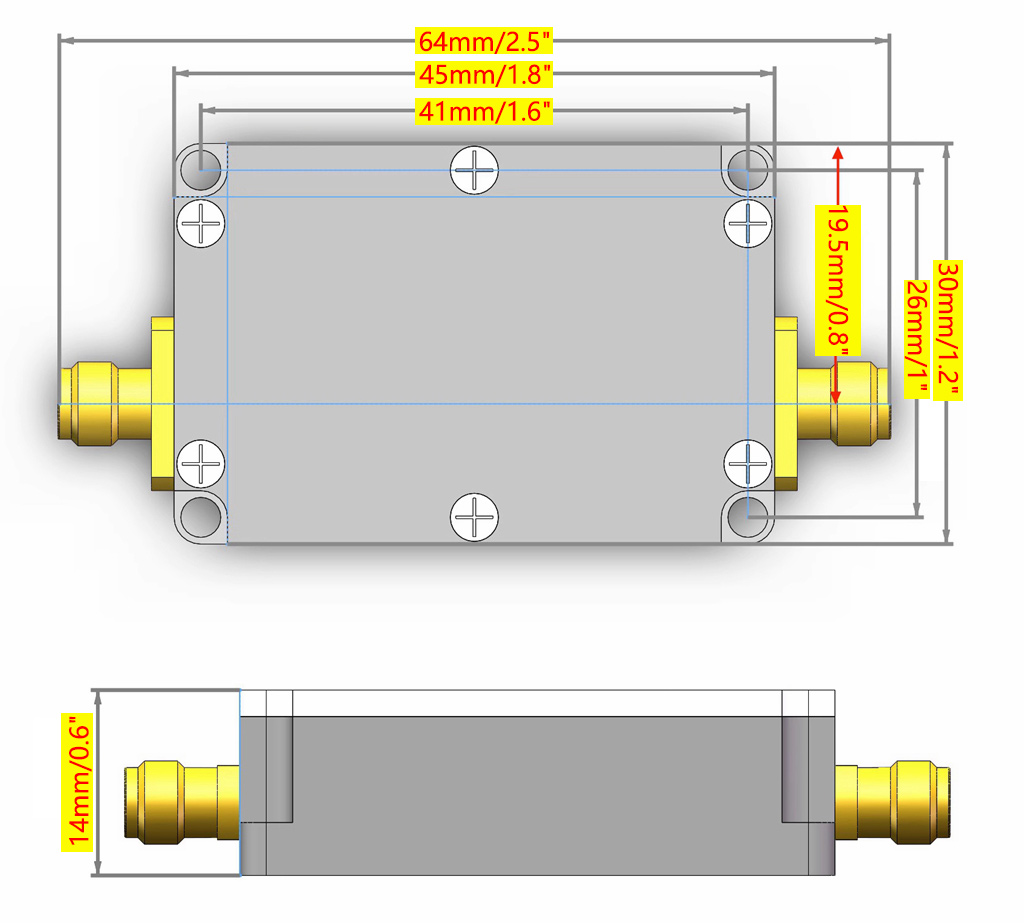

- Volume: 4.5 x 3 x 1.4cm/1.8 x 1.2 x 0.6" (excluding SMA connectors)
- Weight: 66g/0.1lb (including main unit + type-c cable)
- Current: <100mA
- P1dB: 18dBm at 2GHz
- Output interface: SMA female. Input and output impedance: 50 ohms

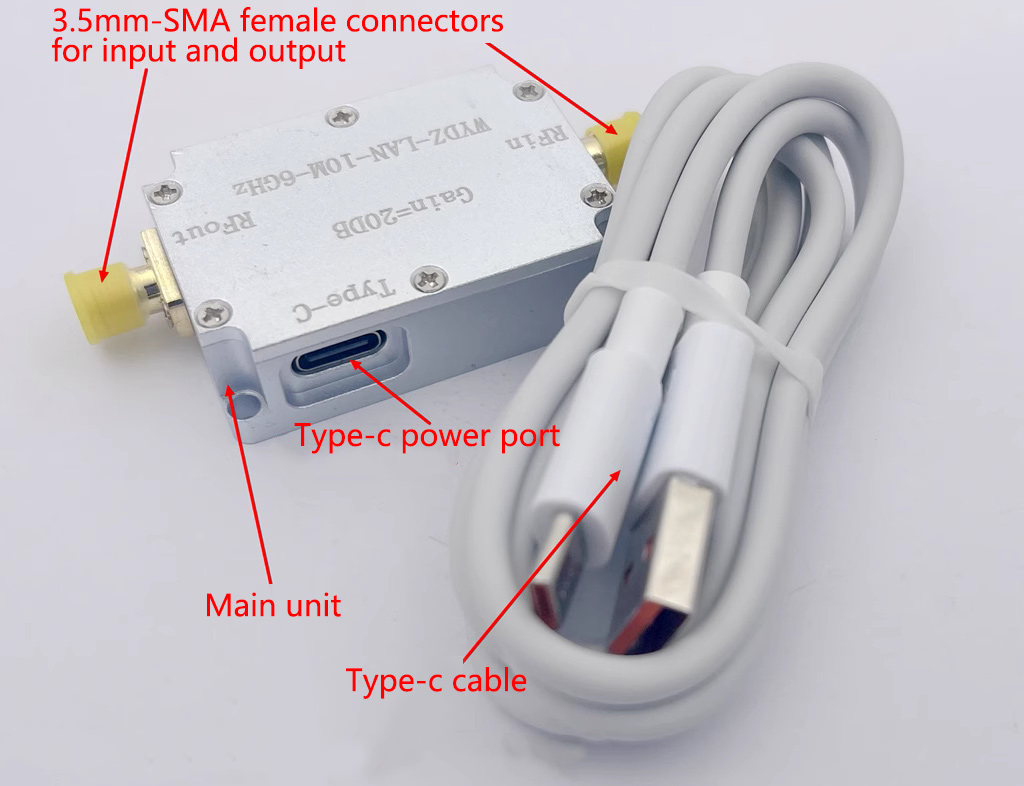

Package Included:

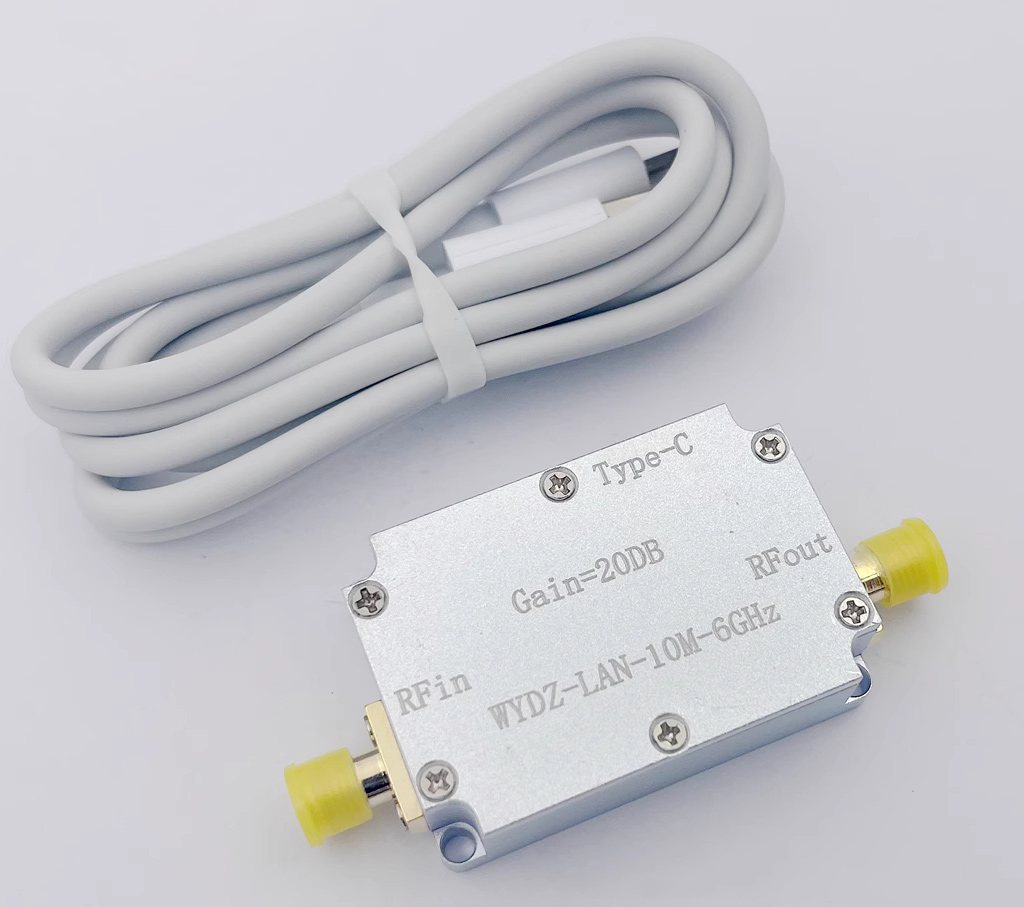

- 1 x Main unit with aluminum alloy shell
- 1 x 1m/3.3ft type-c cable

Packaging Details:
- G.W.: 0.15KG/0.3LB

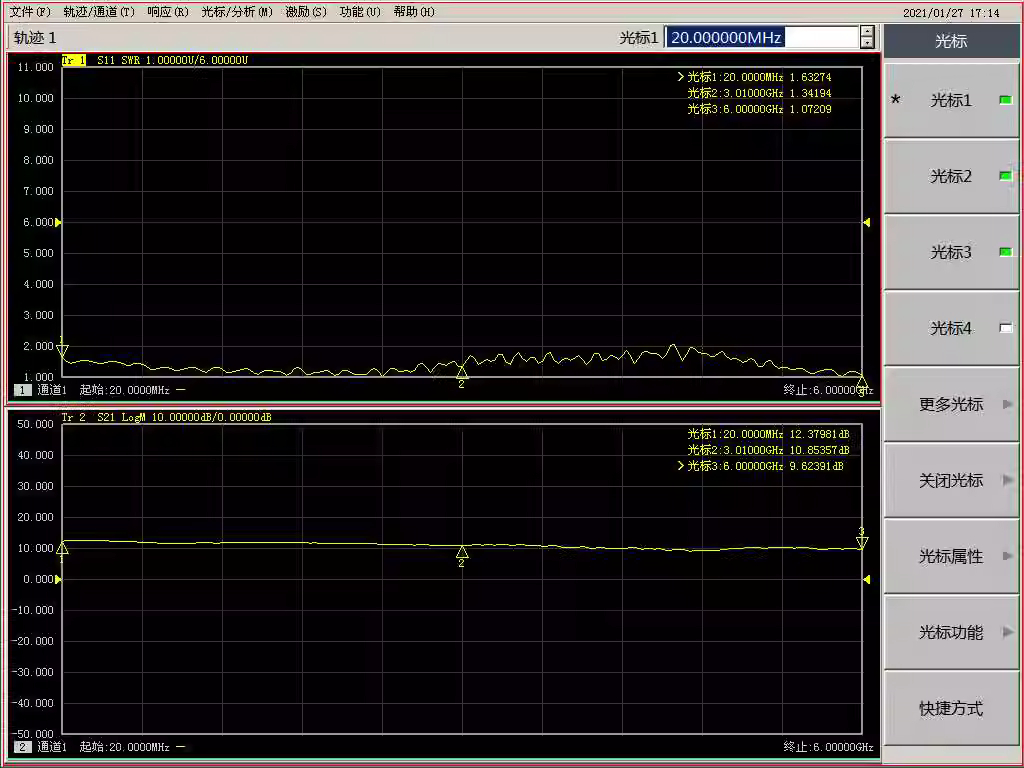

Measured S-Parameters of 20DB Amplifier:
