WYDZ-LAN-10M-6GHz 30DB Gain Broadband Amplifier Broadband RF Amplifier Module with High Flatness
Application Scenarios:
1. Beidou/GPS receiver
2. Receiver system (FM radio reception, radar reception, etc.)
3. Electromagnetic compatibility receiving system
4. Software defined radio receiver
5. Medium frequency signal amplification
Indicator Parameters:
- Powered by: TYPE-C cable
- Frequency range of module: 10M-6GHz
- Noise figure: 4-5dB (refer to the measured curve for different frequencies)
- Gain: 30DB (refer to the measured curve for different frequencies)

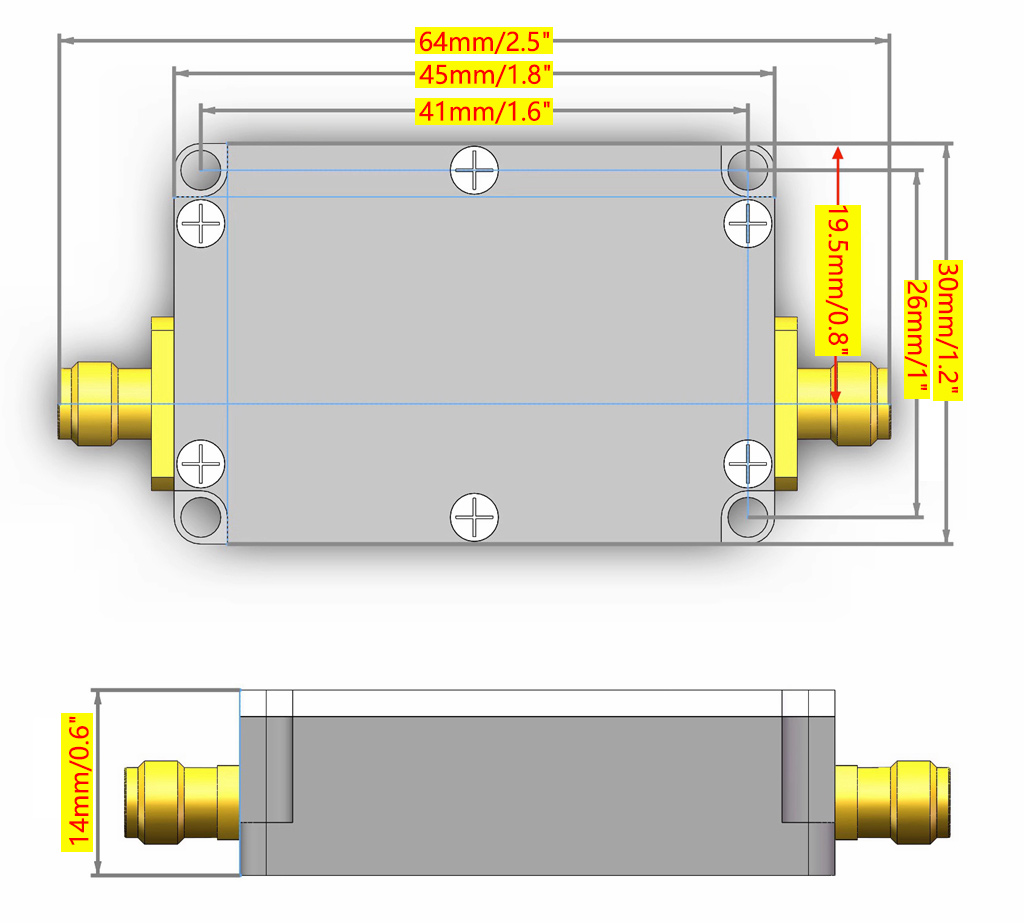

- Volume: 4.5 x 3 x 1.4cm/1.8 x 1.2 x 0.6" (excluding SMA connectors)
- Weight: 66g/0.1lb (including main unit + type-c cable)
- Current: <100mA
- P1dB: 18dBm at 2GHz
- Output interface: SMA female. Input and output impedance: 50 ohms
Package Included:

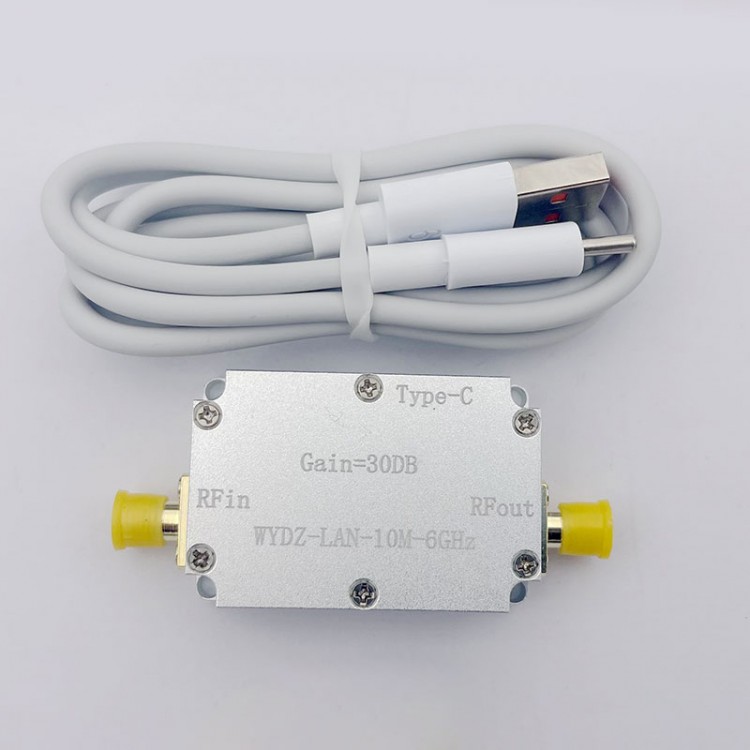

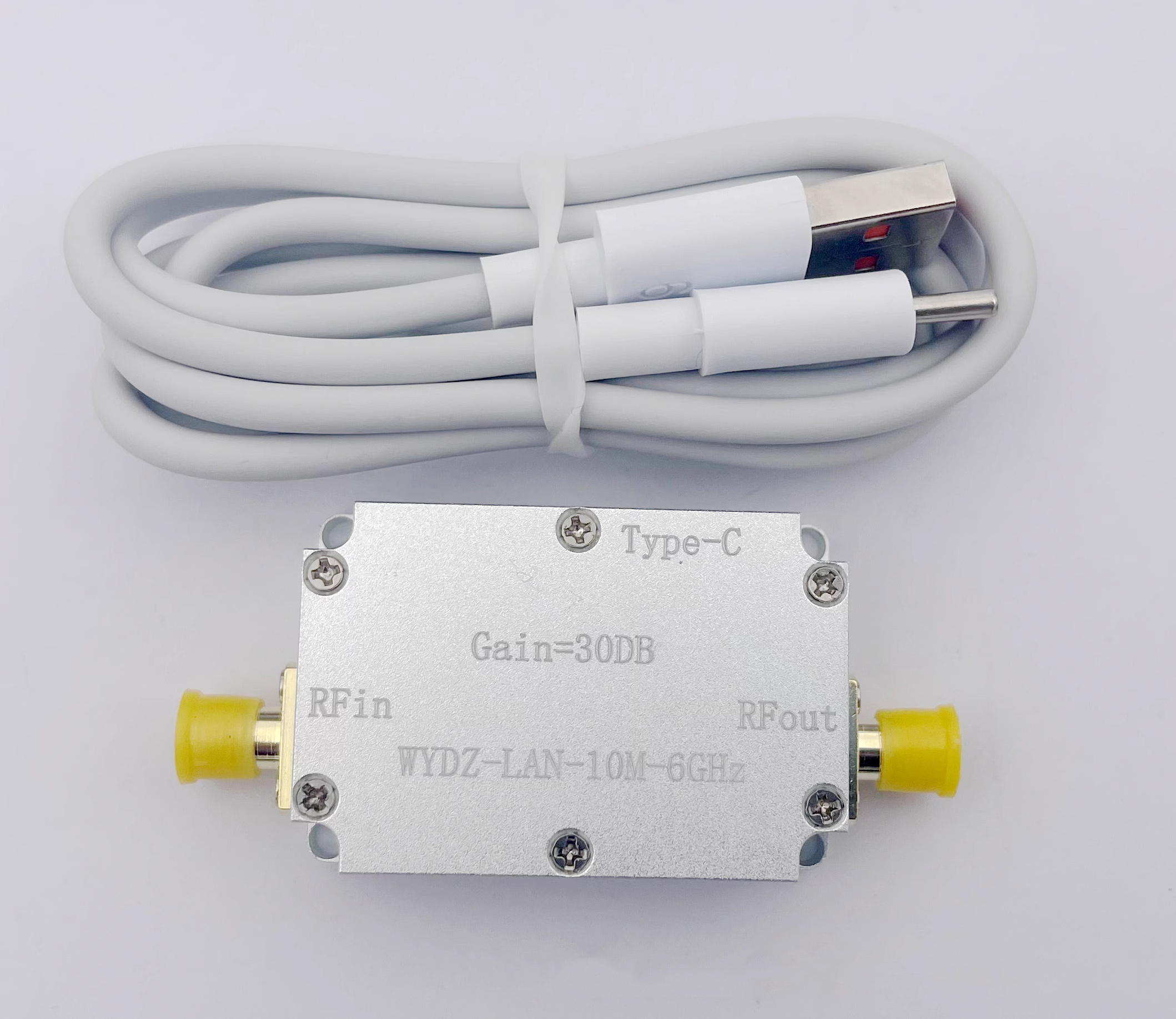

- 1 x Main unit with aluminum alloy shell
- 1 x 1m/3.3ft type-c cable
Packaging Details:
- G.W.: 0.15KG/0.3LB

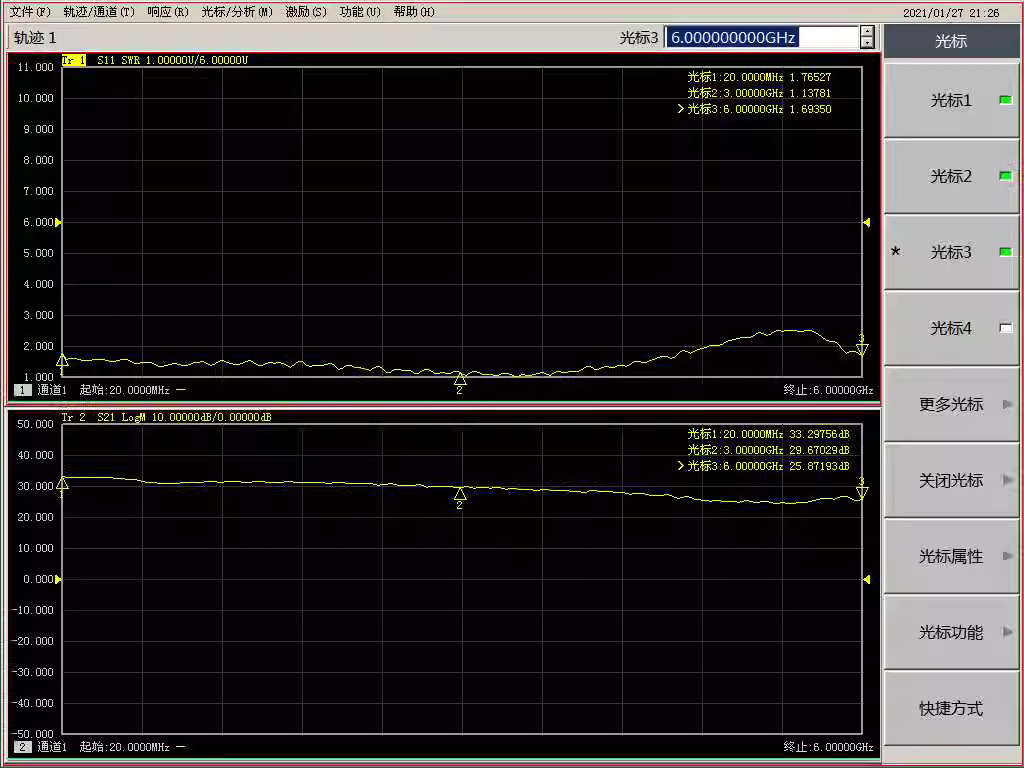

Measured S-Parameters of 30DB Amplifier:
