Product Description:
The X1002 is a PCIe M.2 NVMe SSD expansion board specially designed for the Raspberry Pi 5. It installs underneath the Raspberry Pi 5 and supports NVMe protocol M.2 SSDs, providing high-speed read/write performance, fast data transfer, and ultra-fast boot times.

The X1002 hardware does not limit the capacity of the NVMe SSD; the maximum capacity depends on the Raspberry Pi's operating system.

Attention:
If you encounter boot failure or the SSD is not recognized, please check the following:
1. Verify the power supply and ensure the spring contact of the X1002 aligns correctly with the Raspberry Pi 5 chip.
2. Check the wiring: the FFC cable has a specific orientation—confirm that the markings on the cable match the correct connection.
3. Update your firmware following the user manual instructions.

Incompatible with the following SSDs:
* WD Blue SN550/SN580 series
* WD Green SN350 series
* WD Black SN850 series
* Other NVMe SSDs using the same controller for Phison
* These specific models have proven compatibility issues. It is recommended to avoid using them when considering the X10xx series NVMe expansion boards.

Supports NVMe SSD Protocol:
* With a copper standoff and a screw for SSD installation
* Compatible with NVMe M.2 SSDs of any length: 2230/2242/2260/2280

Product Features:
* Compatible with other HAT expansion boards
* FFC cable length is only 30mm
* Supports installation of the official active heatsink as well as third-party heatsinks H501/503
* Equipped with ACT LED indicator. ON: power on/standby; Flashing: reading/writing
* Reserved space for installing a POE module
* Supports 2230/2242/2260/2280 NVMe M.2 SSDs
* Powered directly via FFC cable to the X1002 expansion board (provides up to 5W continuous power)
* X1002 hardware has no capacity limit for NVMe SSDs; actual capacity support depends on the Raspberry Pi operating system

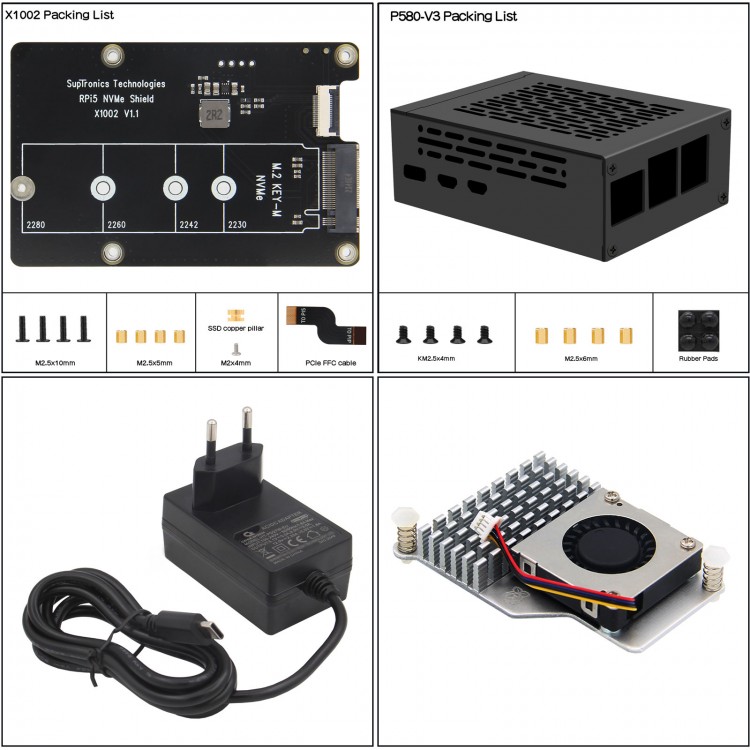

Packing List:
* 1 x X1002 RPi5 NVMe Shield
* 4 x M2.5x10mm Screws
* 4 x M2.5x5mm F/F Spacers
* 1 x SSD Copper Standoff
* 1 x M2x4mm Screw (to fix MVME M.2 SSD)
* 1 x PCIe FFC Cable
* 1 x P580 Metal Shell
* 4 x KM2.5x4mm Screws
* 4 x M2.5x6mm Spacers
* 4 x Rubber Pads
* 1 x H500 Heatsink
* 1 x PD27W Power Adapter (EU Plug)

Packaging Details:
* Weight: 0.16kg

Note:
* Raspberry Pi 5, M.2 NVMe SSD and SD card are not included.
* The following images are for reference only. The actual product appearance and number of accessories are subject to the items received. Thank you for your understanding!
