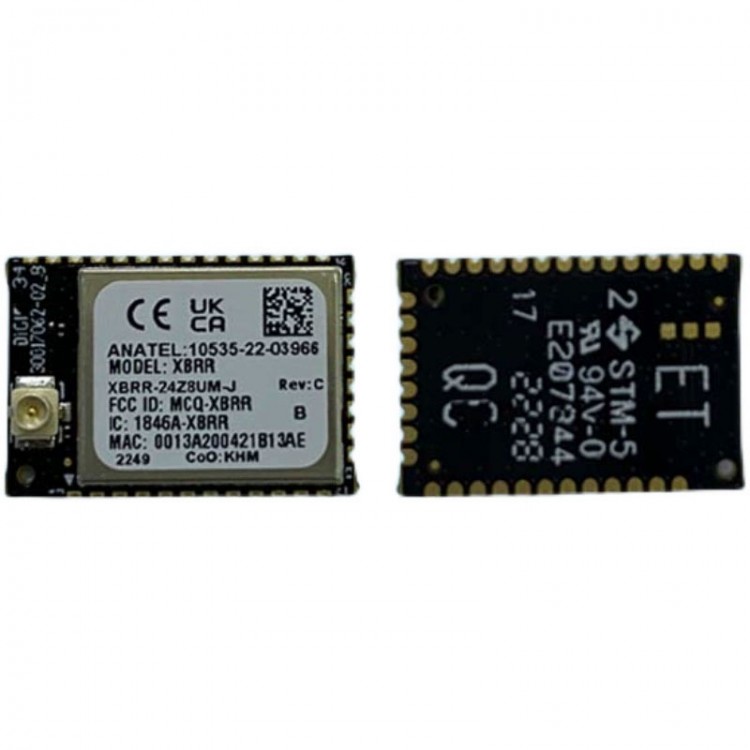

XBEE XBRR-24Z8UM-J Original Wireless Module Zigbee Module RF Transceiver Module of Compact Size

XBEE XBRR-24Z8UM-J Original Wireless Module Zigbee Module RF Transceiver Module of Compact Size

Specifications:
- 2.4 GHz, Zigbee, U.FL Ant, MMT
- Memory: 1 MB flash, 96 kB RAM
- Transceiver chipset: Silicon Labs EFR32MG SoC
- Data rate: RF 250 Kbps, serial up to 1 Mbps
- Indoor/urban range*: Up to 60 m (200 ft)
- Outdoor/line-of-sight range*: Up to 1200 m (4000 ft)
- Transmit power: +8 dBm
- Receiver sensitivity: -103 dBm normal mode
- Bluetooth performance: Supports BLE 4.2 (slave only) and capable of inter-operating with BLE 5.0 devices that support 1M PHY. Hardware is software upgradable to 5.0, but not yet enabled except payload extensions (future release). 1 Mbps, up to 15 m (49 ft) indoor/urban range*, up to 300 m (984 ft) outdoor/RF line-of-sight range*, + 8 dBm transmit power, -95 dBm normal mode receiver sensitivity (1% per)
- Serial data interface: UART, SPI
- Operating temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Dimensions (L x W x H): 13 x 19 x 2 mm (0.533 x 0.76 x 0.087 in)
- Supply voltage: 1.72 to 3.8 V
- Transmit Current: 30 mA at 8 dBm
- Protocol: Zigbee 3.0

Attention:
- Range figure estimates are based on free-air terrain with limited sources of interference. Actual range will vary based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including indoor and outdoor structures such as walls, trees, buildings, hills, and mountains.

Package Included:
- 1 x Module
