Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $97.32 | $95.34 | $92.36 | $88.39 | Contact US |

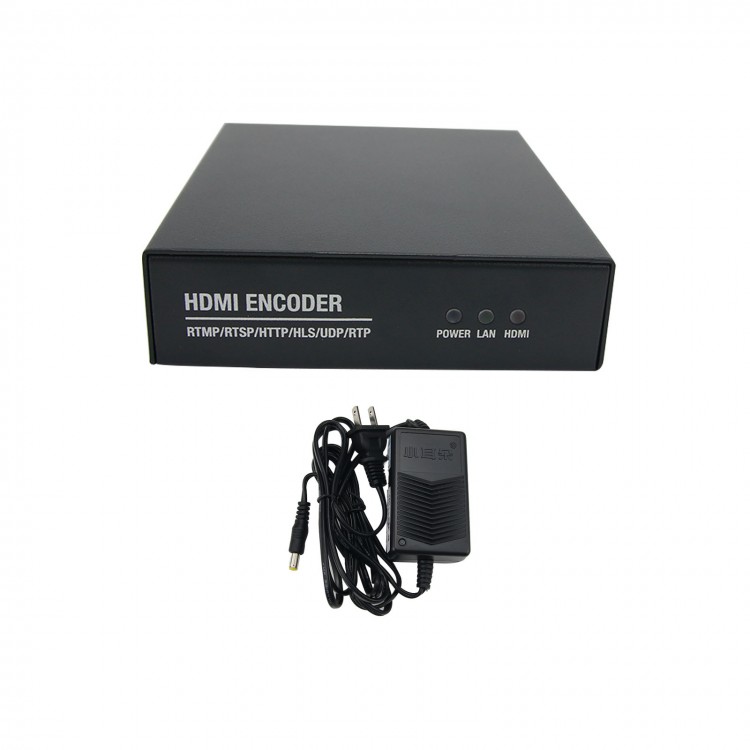

XE3A H.264 HDMI Video Encoder 1080P Full HD Resolution 1920x1080 60FPS HDCP For Live Broadcast
Advantages:
- The device itself delays 80-200ms
- Support for standard RTMP protocol live broadcast
- Output 1-way main bit stream and 3-way secondary bit streams
- H.264/MJPEG video encoding
Features:
- Support for TS, HLS, RTSP, RTMP, FLV, ONVIF, multicast
- Support multi-stream output
- Support the highest resolution 1920x1080
- Support OSD settings, system upgrading and system reset
- Coding frame rate 5-60 adjustable
- Support for ONVIF protocol, for seamless connection with monitoring platforms such as Hikvision & Dahua
Specifications:
Audio Video Input:
- Video Input: 1-way HDMI
- Audio Input: 1-way HDMI built-in audio/1-way HDMI external audio
Video encoding:
- Encoding type: H.264/MJPEG
- H.264 level: Baseline/Main/High optional
- Encoding frame rate: 5-60 adjustable
- Key frame interval (frame): 5-300 adjustable
- Bit rate (kbit): 32-32000 adjustable
- Resolution after encoding: 1920x1080/1680x1056/1280x720/1024x576/850x480/720x576/720x540/720x480/720x404/704x576/640x480/640x360/608x448/544x480/480x480/480x384/480x360/480x320/480x272/480x270/400x320/400x224/352x480 /352x228/320x256/320x240/320x180/240x180/ same as input resolution
- Stream control: CBR/VBR optional
- Streaming: Support for RTMP/ RTSP /HTTP TS/HTTP FLV/HLS/UDP multicast/RTP multicast
Audio encoding:
- Audio input: HDMI/analog optional
- Encoding sampling rate: 44100/48000 optional
- Coding method: AAC /AAC+/AAC++/MP3/MP2/ AC3 optional
- Encoding bit rate: AAC: 48000-320000 adjustable/AAC+: 24000-48000 adjustable/AAC++: 12000-32000 adjustable/MP3: 64000-320000 adjustable/MP2: 64000-320000 adjustable/AC3: 40000-640000 available Tune
- Digital volume: -50 to 50 adjustable
- RTSP stream uses G711A encoding: disabled/enabled optional
OSD:
- Transparency: 0-128 adjustable
- Type: Text/Picture/Scrolling Text
- Area: 4 areas available
- X coordinate: 0-1920
- Y coordinate: 0-1080
- LOGO: Can upload 4 LOGO for selection
- Font size: 8-72
- Background color: transparent/white/black
- Font color: RGB color optional
General:
- Network: 100M
- Configuration management: configuration management through WEB
- For ONVIF: Support for ONVIF to find and browse videos
- Power supply: 12V/DC, 2A
- Power consumption: <5W
- Working temperature: -20℃+60℃
- Operating humidity: <90%, no condensation
- Product size: 9.7*11.2*2.7cm
Support Multiple Third-party Live Broadcast Platforms:
- For aodianyu.com
- For live assistant
- For Huya.com
- For Douyu
- For zhangyu
- For LETV
- For V.QQ.COM
- For mudu.tv
Package Included:
- 1 x Set of HDMI Encoder
