XFSFY-1201MA 120g (0.001g) Halogen Moisture Analyzer Rapid Halogen Moisture Meter for Grains Feed

XFSFY-1201MA 120g (0.001g) Halogen Moisture Analyzer Rapid Halogen Moisture Meter for Grains Feed

Working Principle of Halogen Rapid Moisture Tester:
The moisture analyzer uses a high-efficiency drying heater—a circular halogen lamp—to heat the sample, replacing the traditional oven heating method. This approach provides fast and uniform heating. The XFSFY series integrates and upgrades the traditional oven-drying method by combining the heating module, weighing module, operation module, and intelligent human-machine interface into one system. The system can intelligently stop based on the moisture change trend and analyze the moisture content of the sample, displaying the result directly on the screen. It truly enables one-button testing, and the measurement results are highly consistent with those from the oven-drying method. Most sample measurements can be completed within just a few minutes, making it much more efficient than the oven method and highly favored by enterprise users.

Applicable Industries and Sample Types:
1. General Industries: Grain, wood, paper, textiles, coal, ores, sand, soil, fertilizers, feed, chemicals, tobacco, and more.
2. Food and Pharmaceuticals: Traditional Chinese medicine, Western medicine, dehydrated food, fillings, fruits and vegetables, dried fruits, wheat products, sugars, meats, edible oils, white tea, black tea, Pu'er tea, corn, feed, moist grain, rice, wheat, paddy, nuts, coffee beans, etc.
3. Inorganic Salt Powders: Calcium carbonate, refractory materials, talcum powder, alumina, gypsum, desiccants, ceramic slurry, ceramic powders, etc.
4. Battery Industry: Lithium battery powders, lithium battery slurry, battery-grade sheets, graphene, etc.
5. Plastics and Rubber Industry: ABS, PP, PVB, PC, COC, BMC, DMC, SMC, BOPP, PBT plastic film, EPS foam, PET plastics, PA polyamide, LCP, PVC, recycled plastics, bottle flakes, PE polyethylene, rubber, PS polystyrene, EPE pearl cotton, etc.
6. Solid Content Testing: Paint, milk and soy milk, glue, adhesives, slurry, mud, sludge, chemical liquids, soy sauce, water reducers, etc.

Features:

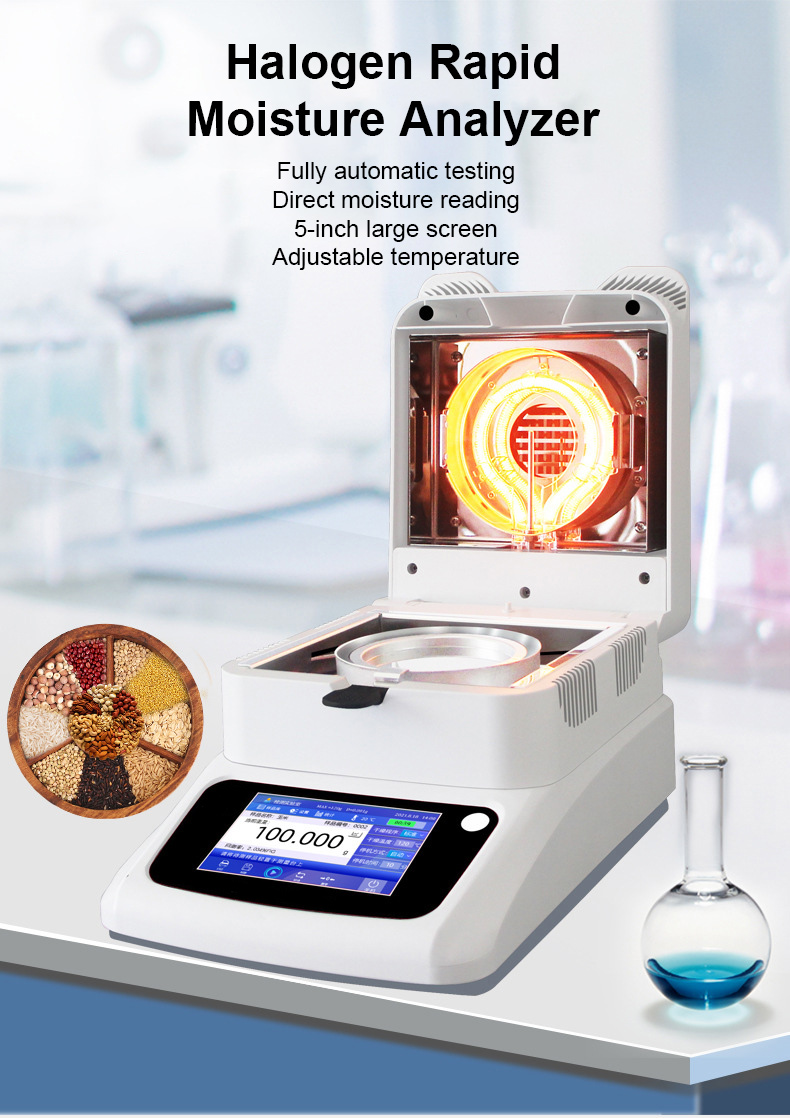

Halogen Rapid Moisture Analyzer
* Fully automatic testing
* Direct moisture reading
* 5-inch large screen
* Adjustable temperature

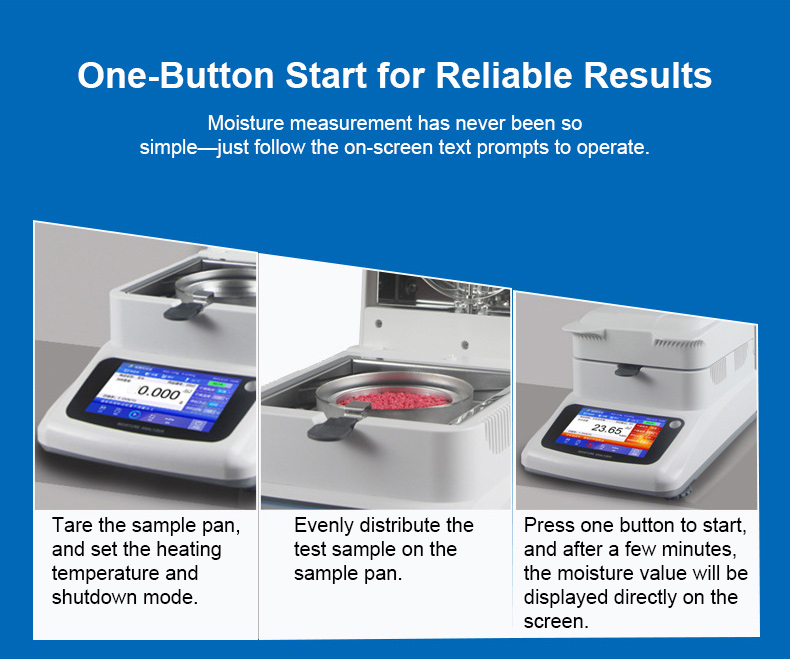

One-Button Start for Reliable Results
* Moisture measurement has never been so simple—just follow the on-screen text prompts to operate.

5-Inch Programmable Color Touchscreen
* A single interface simultaneously displays moisture %, solid content %, testing temperature, and other information. It features built-in guided Chinese operation and voice prompts, allowing the operator to follow graphic instructions step-by-step to complete the workflow.
* The 5.0-inch high-resolution screen offers a resolution of 800×480, a wide viewing angle, and a backlight brightness of up to 500 nits.

High-Efficiency Circular Halogen Heating Lamp
* The 450W high-efficiency circular halogen lamp, paired with a stainless steel heating chamber, provides faster, more uniform, and more energy-efficient heating compared to ordinary plastic-covered chambers. This reduces the chance of sample burning and ensures more accurate test results. The adjustable temperature range is 40-230 °C.

Imported Sensor
* The core weighing system uses a German-imported sensor for HBM, offering excellent stability, low temperature drift, and high accuracy.
* It also includes a built-in overload protection device to better protect the sensor.

Comprehensive Data Processing System
* This system facilitates daily data management and analysis for enterprises.

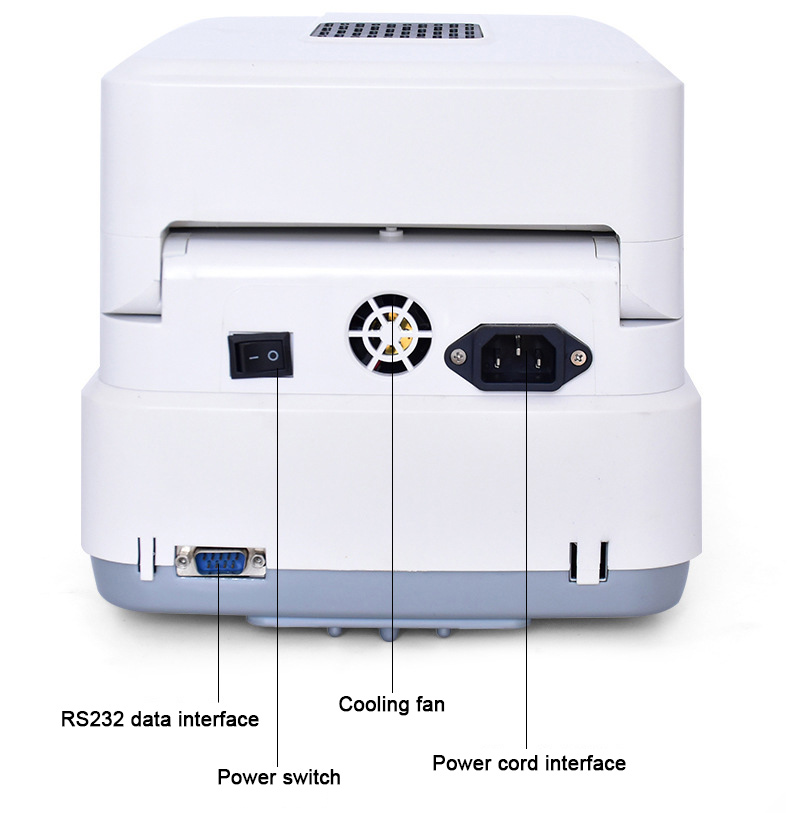

* Equipped with an RS232 serial port and optional USB interface, it can be connected to thermal printers, label printers, and computers.

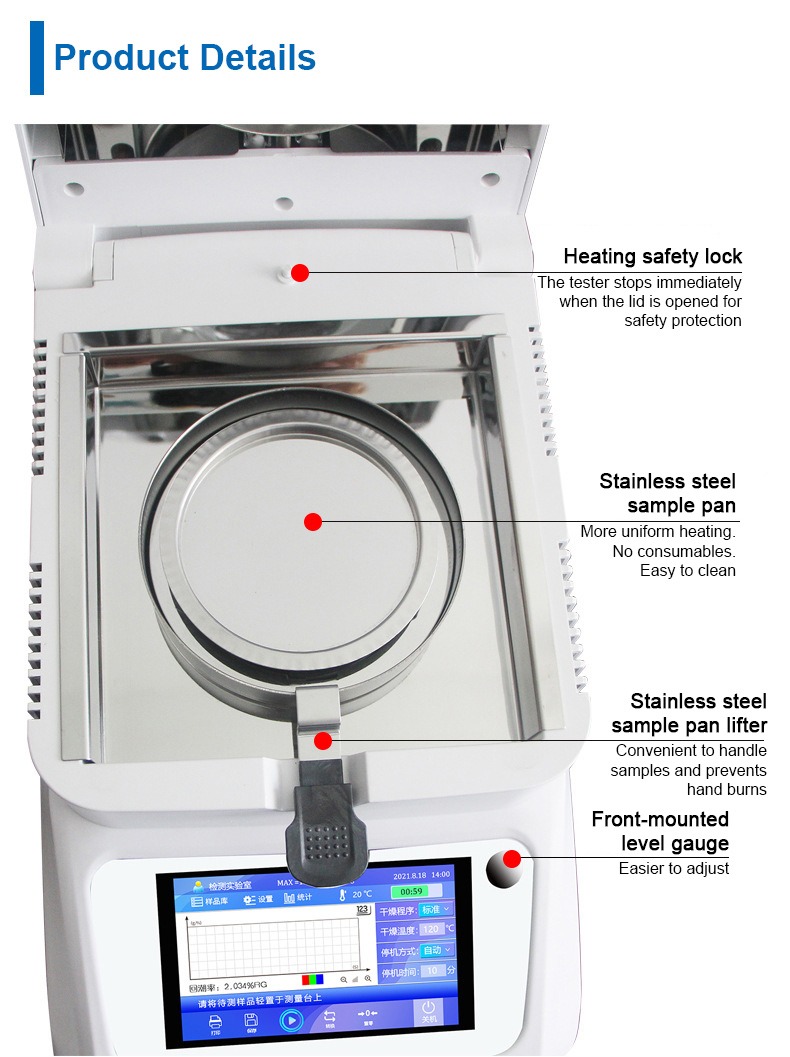

More Product Details
* Heating safety lock: The moisture tester stops immediately when the lid is opened for safety protection.
* Stainless steel sample pan: It ensures more even heating, requires no consumables, and is easy to clean.
* Stainless steel sample pan lifter: It is convenient to handle samples and prevents hand burns.
* Front-mounted level gauge: It makes leveling easier.

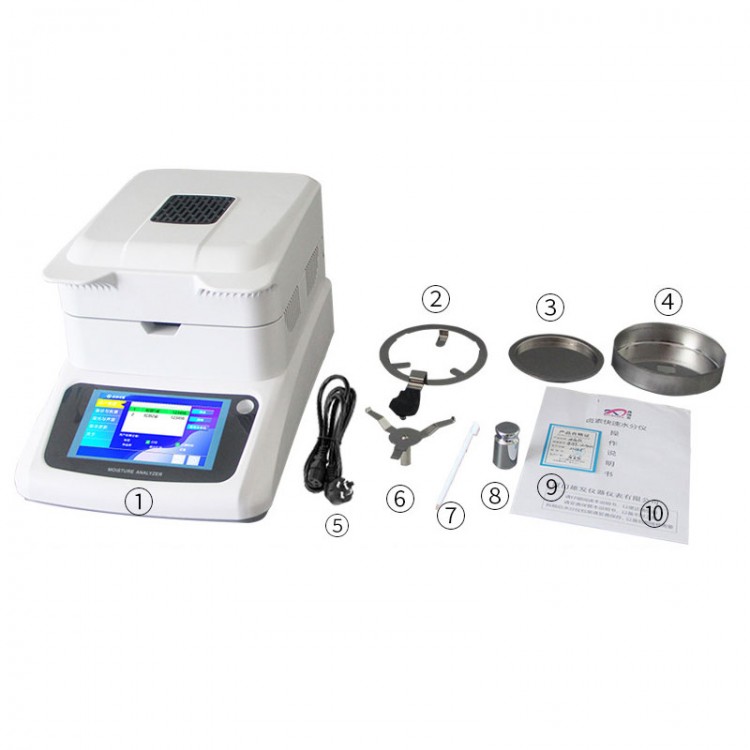

Packing List:
* 1 x Moisture meter main unit
* 1 x Pan lifter
* 1 x Stainless steel sample pan
* 1 x Heat focusing plate
* 1 x Power cord
* 1 x Tripod stand
* 1 x Touchscreen stylus
* 1 x Calibration weight
* 1 x Certificate of conformity
* 1 x Operation manual

Packaging Details:
* Weight: 9.5kg

Note:
* Batteries are not included.
