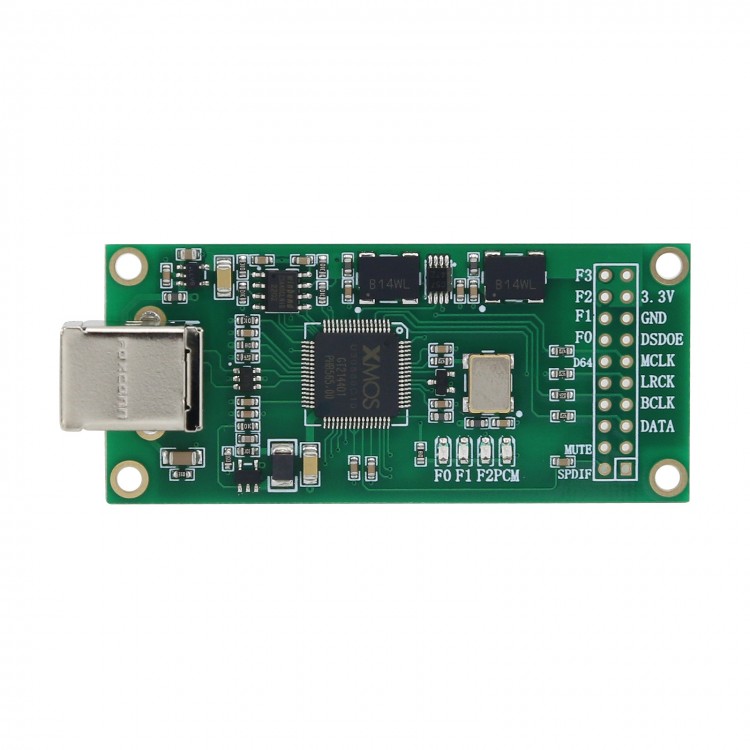

XMOS XU208 Asynchronous USB digital converter DSD Upgrade SITIME Crystal

XMOS XU208 Asynchronous USB digital converter DSD Upgrade SITIME Crystal

Description:
- IT is upgrade SITIME crystal version more better.
- The latest xmos xu208 solution, supported DSD format II2S output also supports PCM
- XMOS USB interface supports SACD DSD, DTS data flow playback! Sound quality is much higher than the traditional CD playback sound quality, xmos provided USB audio features have been such as Meridian, OPPO, Sennheiser and Sony and other companies selected technology.
- Xmos Gold Plated PCB Interface Definition Supports Amanero Italian Interface

xmos xu208 support DSD format II2S output supporting PCM

Drive Linkage  Password:m5ra

Black color:Updated SITIME crystal oscillator version(2PCS 24.576M,22.5792M crystal)

The product design and features:
1. Use XMOS latest series xU208 as the core processing USB to IIS / DSD,
2. Crystal is very close to XMOS, reduce the interference of the external clock signal, double gold-plated PCB, PCB thickness and original Italian thickness,
3. With the sampling instruction output indication
4. Provide DSD_ON and MUTE output
5.XMOS chip 3.3V power supply using ultra-low noise ADP150 regulator chip
6. This product uses MCLL as a decoupling, each power supply through LC filter decoupling, HIFI design
7. Compatible with the size of the Italian Amanero usb module, I2S / DSD output pin one by one correspondence.

Technical indicators:
- The sampling rate supported by each output interface:
- PCM: 44.1KHz, 48KHz, 88.2KHz, 96KHz,
- 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz
[Where I2S out supports full sampling rate, S / PDIF supports up to 192KHz]
DSD: 2.8MHz (DSD64) - DoP, native
5.6 MHz (DSD128) - DoP, native
11.2 MHz (DSD256) - DoP,native
[Where I2S out supports all DSD formats, S / PDIF supports DSD64 DOP mode]
Bit Width: Up to 32 bit over I2S output
Up to 24 bit over S / PDIF

System compatibility:
1, Windows 7, Windows 8, Windows 10; 32/64 bit, need to install a dedicated driver
2, Native MacOS 10.6 and later, use the system comes with the drive
3, Native Linux with UAC2 compliant kernel, using the system comes with the driver, (in the Ubuntu and Daphile system tested above, based on INTEL X86 platform)
4, Android OS 4.2 and above, the need for equipment to support OTG function, in general, Andrews 5.0 system is the default support, 5.0 the following recommendations with a dedicated player to use.

Package Included:
1 x New XU208 xmos USB digital audio interface U8 asynchronous daughter card
