XPTHC-300-3 Arc Voltage Plasma Torch Height Controller Plasma THC for CNC Plasma Cutting Machines
Description:

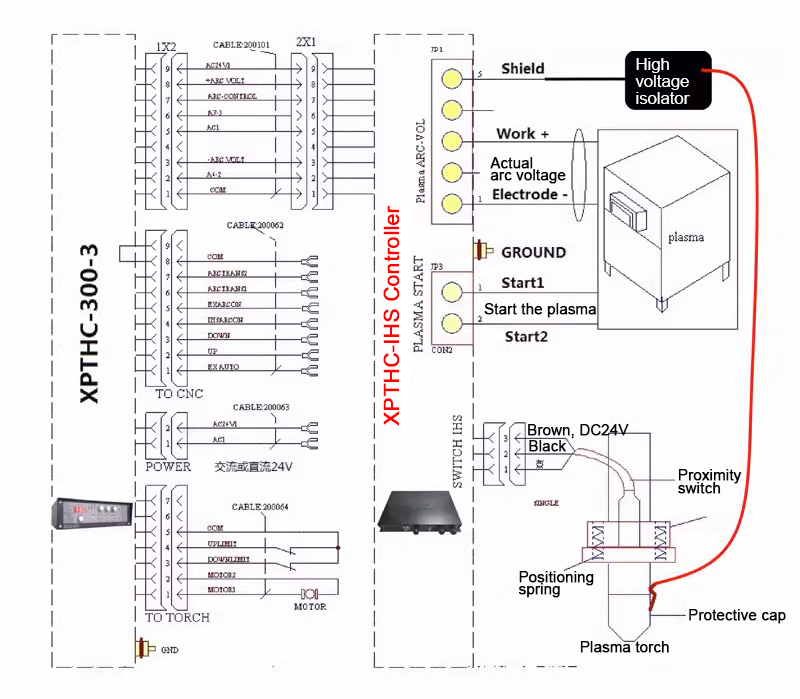

XPTHC-300-3 is mainly suitable for large-scale CNC gantry fine plasma cutting machines, providing a complete supporting control cable for the height controller, simplifying user wiring and improving anti-interference and stability. High-voltage isolator is for high-frequency plasma, so that it can adapt to various harsh field environments.
XPTHC-300-3 uses a high-performance 32-bit processor for ARM Cortex-M3, with analog closed-loop circuitry and automatic gain control for more intelligent control and innovative design.
Features:

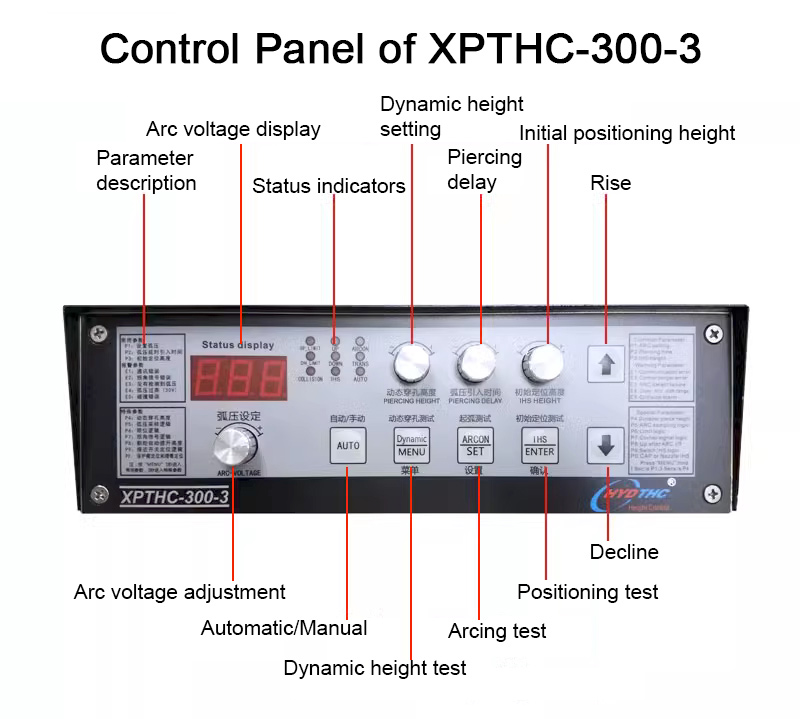

- Digital parameter settings and quick adjustment knobs for ease of use
- Automatic two-speed positioning to improve positioning accuracy, protect the torch, and extend the life of the protective cap
- Underwater protective cap positioning and proximity switch positioning
- Automatic height signal logic intelligent judgment adapts to different numerical control systems
- Intelligent dynamic piercing function and collision avoidance function
- Abnormal alarm prompt
- AGC (automatic gain control) with PWM stepless speed regulation, high-speed and high-precision smooth and stable tracking
- Two arc voltage setting modes can adapt to traditional plasma cutting and plasma bevel cutting
Specifications:
- Product name: XPTHC-300-3
- Power supply: AC24V, 50/60HZ or DC24V
- Compatible motor: DC24V motor
- Output power: 40-100W
- Drive mode: PWM mode

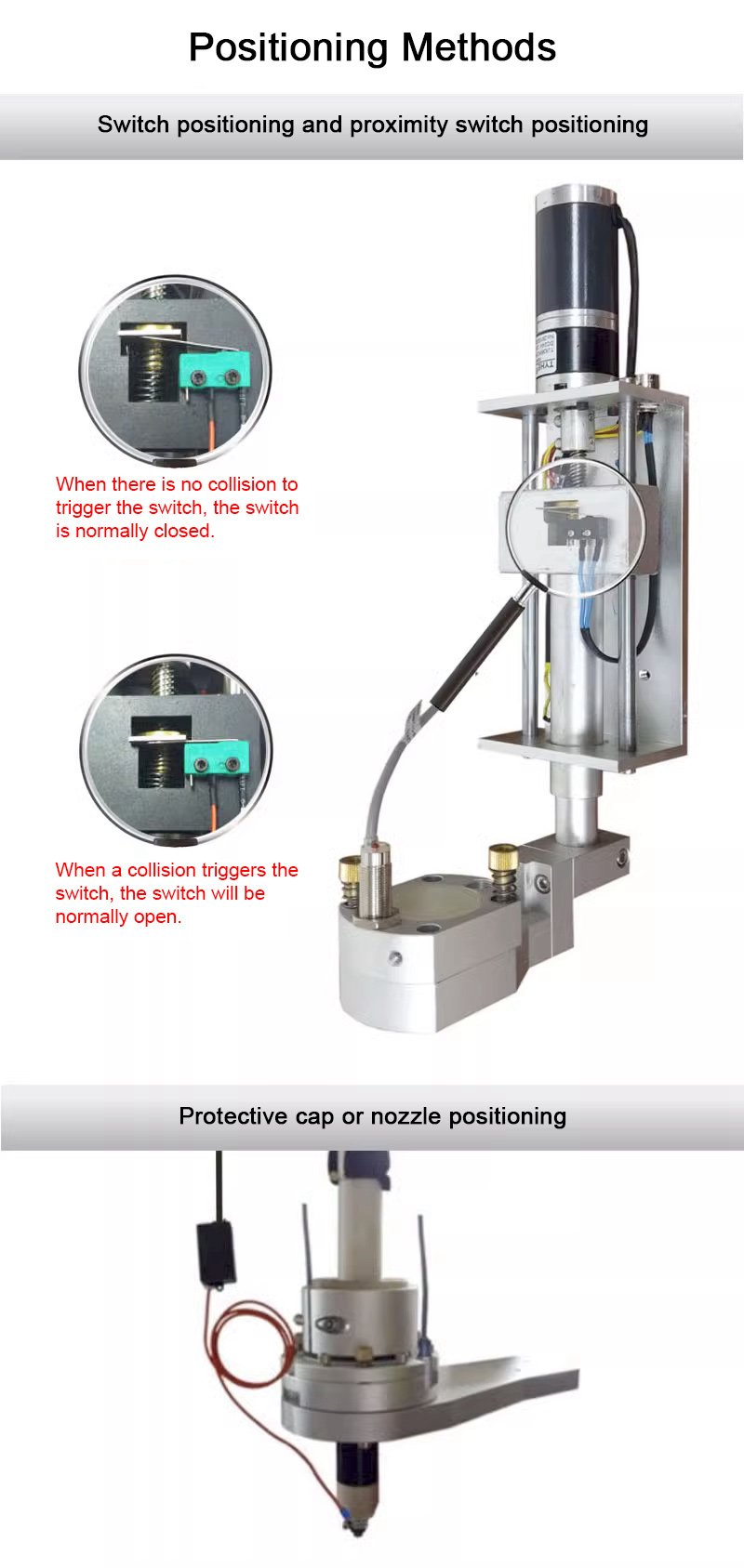

- Positioning method: switch positioning and proximity switch positioning
- Voltage ratio: 50:1
- Control accuracy: ±1V to ±3V
- Lifting speed: 1000-3000mm/min
- Arc voltage adjustment range: 50~250V
- Maximum cutting tracking speed: 10000mm/min
- Working temperature: -10°C to 60°C
Package Included:

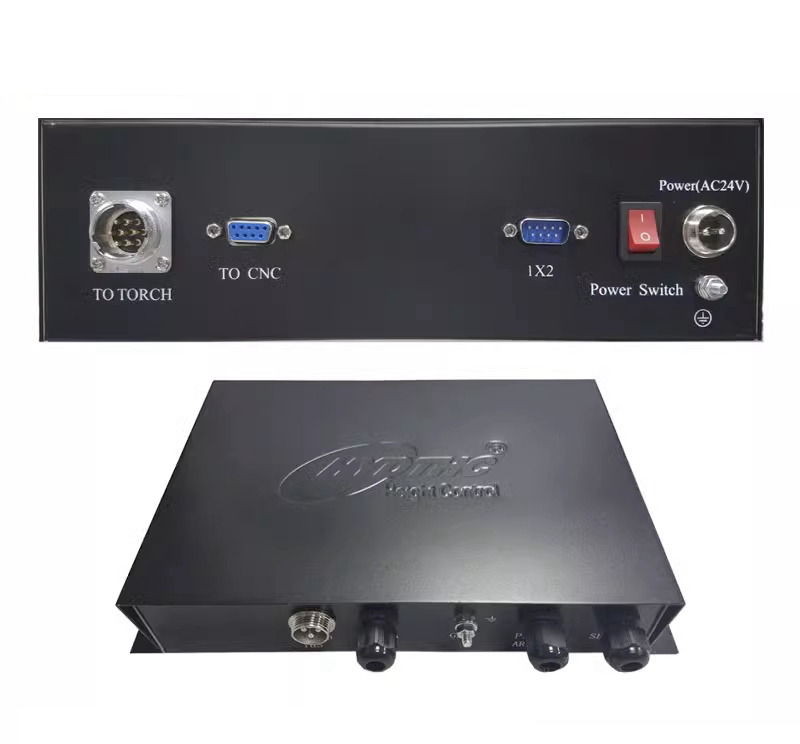

- 1 x XPTHC-300-3 Control Module
- 1 x XPTHC-IHS Controller
- 1 x Proximity Switch (for proximity switch IHS only)
- 1 x HV Retaining Cap Cable
