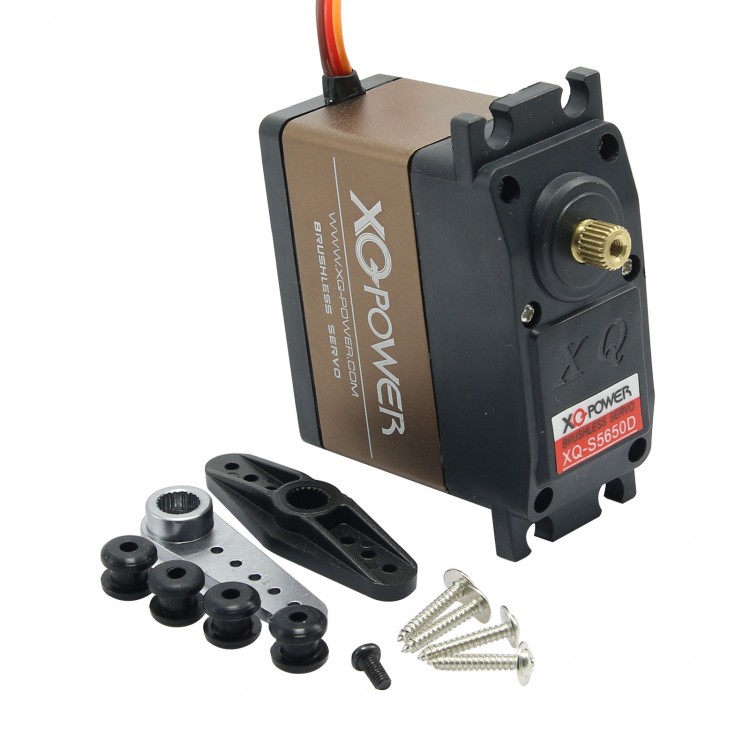

XQ-POWER XQ-S5650D Brushless Digital Servo 60kg/8.5V for RC Model
High Quality digital servos from XQ Power featuring high voltage circuitry. The Titanium gears and high grade cables help to tame the power while the plastic and metal case helps disperse heat and reduce flex during use.
Features:
- Support high voltage
- Titanium Gear
- Waterproof
- Plastic case, resist heat and corrosion
- Aluminium middle hull, easy to eliminate heat
- Adopt high quality coreless motor
- Small dead band width and high speed signal transmitting and receiving
Specifications:
- Dead band: 2μs
- Control System: PWM
- Operating Temperature Range: -25 ~ 70℃
- 360° Modifiable: NO
- Motor Type: Coreless Motor
- Bearing Type: Dual Ball Bearings
- Gear Type: Titanium Gears
- Programmable: NO
- Speed: 7.2V: 0.20sec/60°, 8.5V: 0.18sec/60°
- Torque: 7.2V: 48 kg/cm , 8.5V: 60 kg/cm
- Voltage: 7.2V - 8.5V
- Size: 60.1*30.1*59.7mm
- Weight: 177.5g

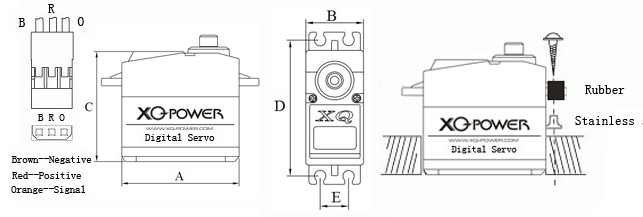

Assembly Drawing
