XR Axis 60*60mm Manual Displacement Platform High Precision Optical Platform XR60-R

Availability: In stock, usually dispatched in 1 business day

  • Price:$115.03
  • Price in reward points: 1150 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $112.73 $110.43 $106.98 $102.38 Contact US
Quantity:

XR Axis 60*60mm Manual Displacement Platform High Precision Optical Platform XR60-R

Features:

- Using cross roller guide for high accuracy, smooth movement
- Lightweight: its main material aluminum alloy makes it suitable for built in other devices
- Drive Mode: micrometer drive mode for extra accuracy
- To achieve precise mobile, high precision, stable performance, supporting facilities, strong interchangeability, convenient installation and disassembly. Proportion of mounting hole design to adapt to different requirements for installation and convenient fast combined into multidimensional mobile station.

Parameters:
- Model: XR60-R
- Movement Direction: X, R Axis
- Adjustment: Front & Rear/Left & Right, 360° Rotating Fine Adjustment
- Material: Aluminum Alloy (Surface black anodizing)

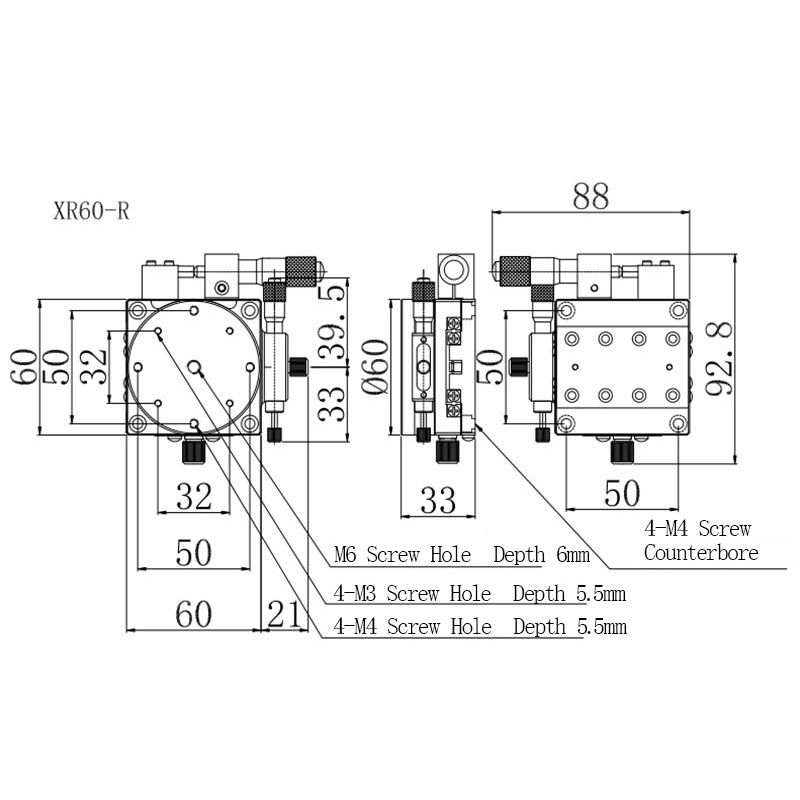

- Dimension: 60*60 mm
- Rail Type: V-type precise cross roller guide
- Travel: X Axis: ±6.5mm; R Axis: Coarse 360° Rotation, Fine Adjustment ±5°
- Load: 29.4N (3kgf)
- Accuracy: 10μm
- Parallelism: 5μm
- Weight: 0.56kg

Package Included:
- 1 x Manual Displacement Platform
