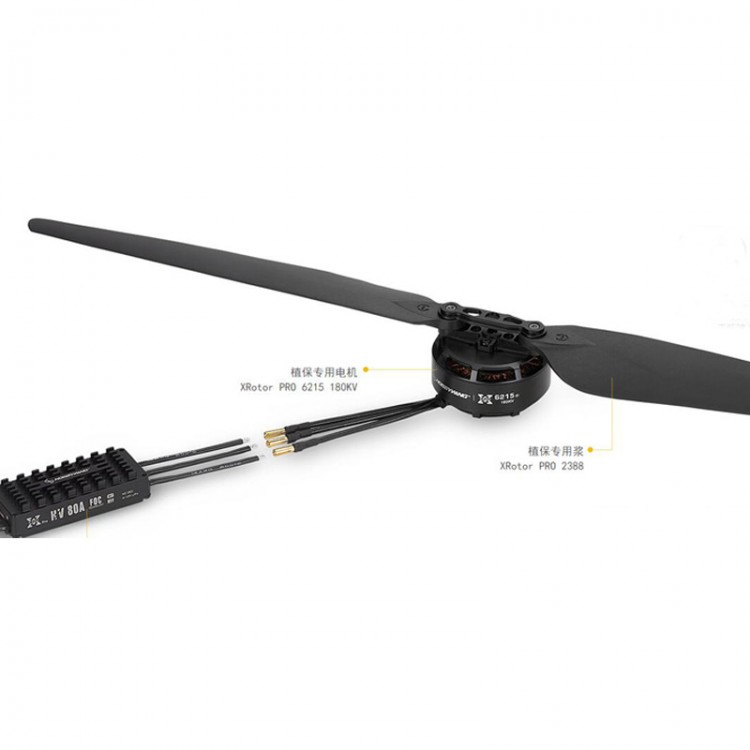

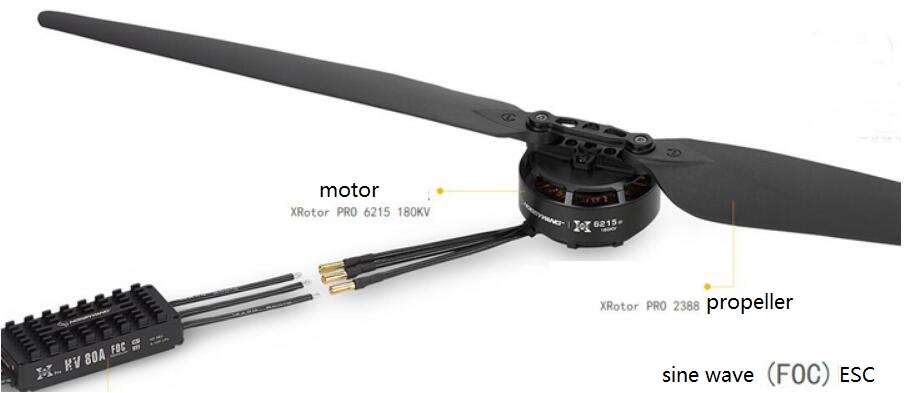

XRotor 6 FOC Power System 6251 180KV Motor + HV 80A FOC V4 ESC + PRO 2388 CCW Propeller TL6215-B
Product Description:
- XRotor 6 FOC Power System Combo the max tension:12kg/axis (48V)
Recommend takeoff weight:3.5~5kg,uses 12s battery,application environment temperature range:-20℃-65℃,power assembly weight:502.5g,with guard IPX7 grade.
- XRotor pro HV 80A FOC V4 ESC
- Optimized FOC power system

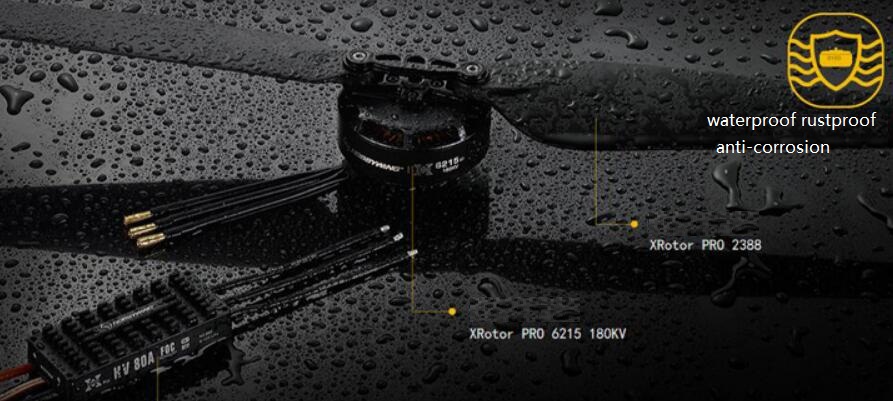

- Waterproof,rustproof and anti-corrosive
- Impact-resistant
- Heat-resistant
Parameter:

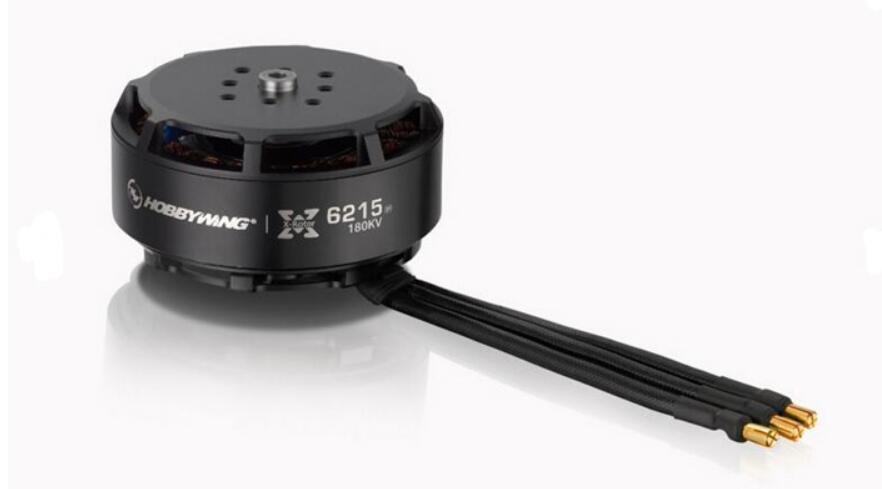

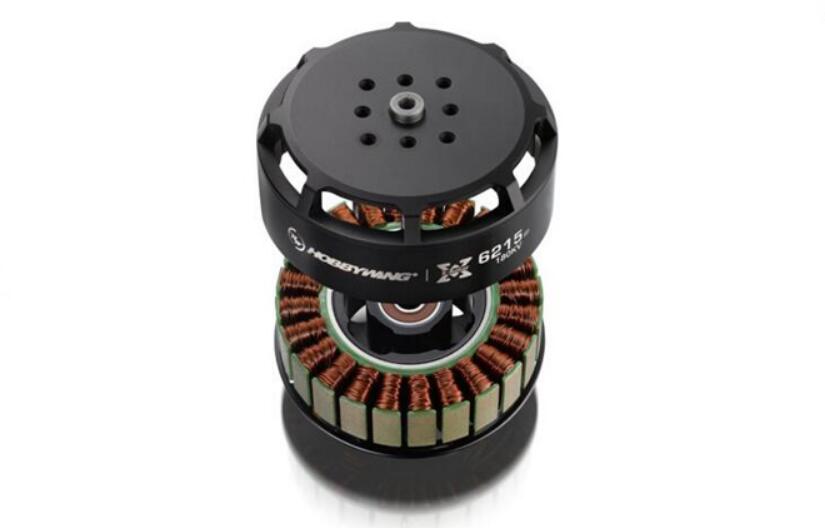

Motor mode: XRotor PRO 6215 180KV
- KV value:180
- Outer Diameter:69mm
- Weight:345g
- Blade mounting hole: M3
- Fixed base mounting hole:M4
- Outlet:enamelled wire straight out

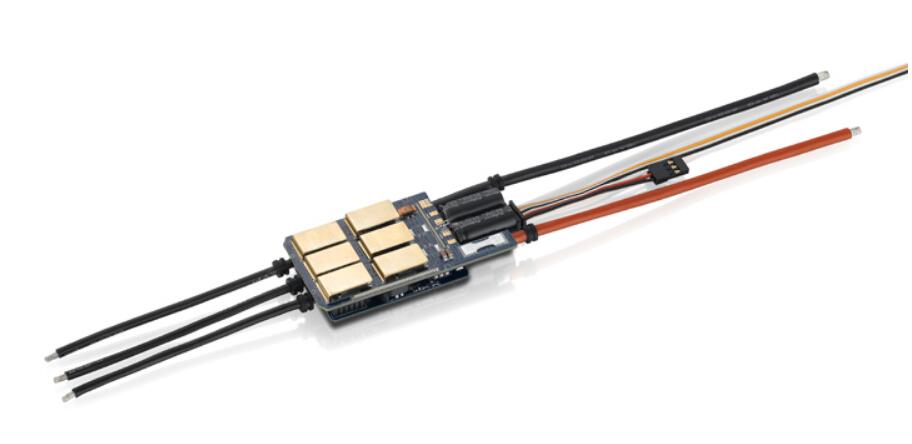

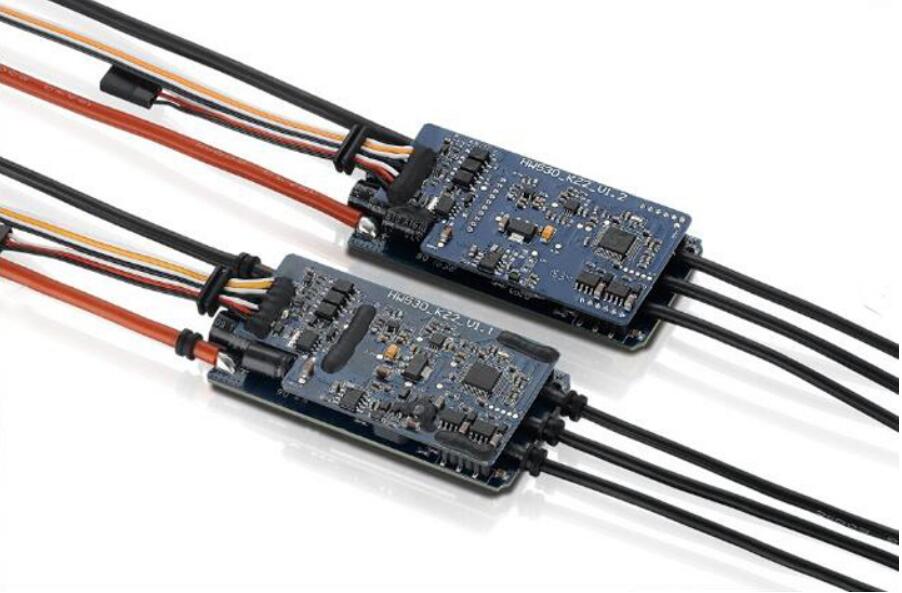

ESC mode:XRoto PRO 80A HV FOC V4
- Recommended Input Voltage: 12S LiPo
- Max. Input Voltage: 50.2V
- Max. Input Current:80A
- BEC:No
- Operating Pulse Width: 1100us-1940us
- Compatible signal frequency:50-500Hz
- The max current:80 A (Requires excellent heat dissipation conditions)
- Input line:12AWG
- Output line:14AWG
- Weight:82.5g(Wire is not included)
- Dimension:83.5x35x19.4mm
Propeller:
- Reverse propeller mode:XRoto PRO 2388
- Weight:75g
Package List:
- 1 x XRotor PRO 6215 180KV motor
- 1 x XRoto PRO 80A HV FOC V4 ESC
- 1 x XRoto PRO 2388 Propeller CCW
