X-100 PAD 2 Features:
- Key Programming
- Oil Reset/Engine oil light reset
- Odometer Adjustment
- Tire Pressure Warning Light Reset
- Timing belt light reset (Manual Operation)
- EPB Electrical Parking Brake Adaptation
- TPS Throttle Body Adaptation
- Steering Angle Calibration
- Battery Reset
- DPF PIN Code Reading
- Hexadcimal editor(Win Hex)
- OBDII Diagnosis
- Support the latest vehicles with CAN BUS and UDS protocol
- Update Via WIFI (always equip your device with the latest software)

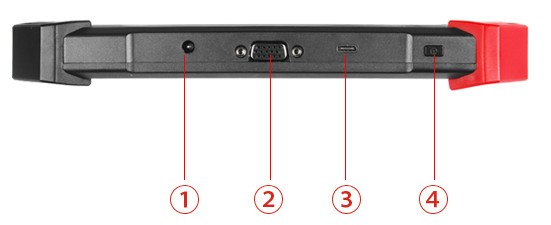

1.USB Type C Port: Compatible with HDMI TV port
2.Power Button: Power on or off
3.DC Charging port: Battery charging
4.DB15 Port: Supports wired connection with car by the cable


1.Earphone jacket
2.USB 2.0 Port: data synchronization with PC
3.Mini HDMI Port

Front View of X-100 PAD 2:

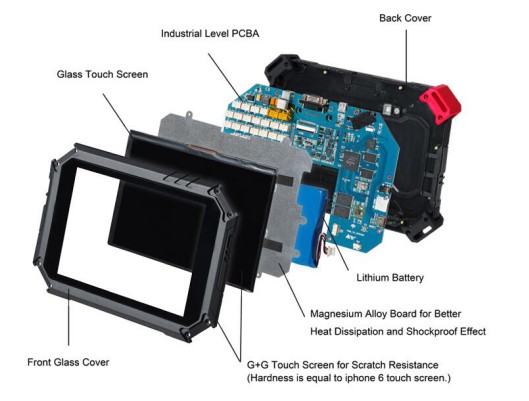

X-100 PAD2 Exploded Diagram

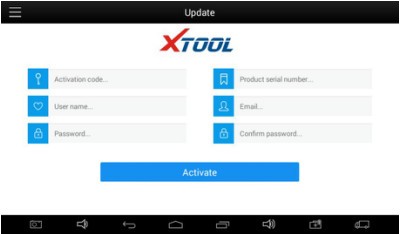

Easy registration with X-100 PAD 2 connected to WIFI. Don’t bother to use PC for registration.

Connect to vehicle directly with cable

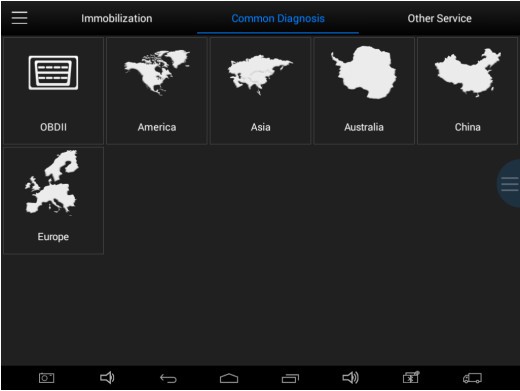

Diagnosis interface for choosing vehicles' model

You can choose your area before you start


Each area will contain the all the brand this device can do, here is thelist:
America: for Buick, for Cadillac, for Chevrolet, for Dodge, for GM, for GMC, for Hummer, for Pontiac, for Saturn, for Ford

Asia: for Acura, for Honda, for Hyundai, for Infiniti, for Isuzu, for KIA, for Lexus, for Mazda, for Mitsubishi, for Nissan, for Ssangyong, for Subaru, for Suzuki, for Toyota

China: for BYD, for Great Wall Motor, for Brilliance, for JAC, for Geely Cars, for Lifan Cars, for Chery

Europe: for Audi, for Benz, for Citroen, for Ford, for Fiat, for Jaguar, for Lancia, for Land Rover, for Opel, for Peugeot, for Porsche, for Renault, for Romeo, for Seat, for Skoda, for Smart, for VW

One-click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder!

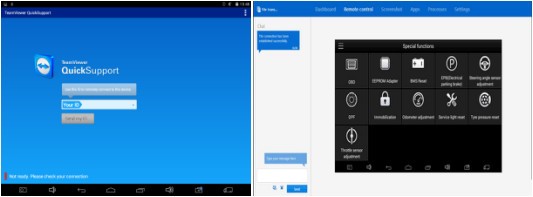

Remote access, which is perfect for training, demonstration and even remote diagnosis.

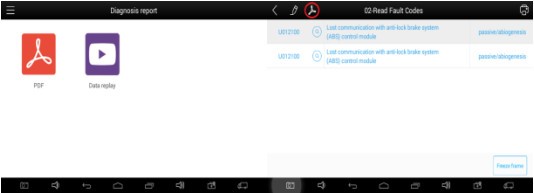

Diagnosis reports in PDF file. Print out the diagnosis report and show it to car owners when they come and fetch their cars.
They will be really happy knowing what kinds of problems have been fixed for their cars.

Key Programming Features:
- New keys programming
- PIN Code reading with EEPROM
- Hexadcimal editor(Win Hex)
- Reads keys from immobilizer's memory
- New immobilizer programming
- Vehicle Identification Number programming
- Reset ECM & reset immobilizer
- New remote controller programming
- With full and strong database for the most important vehicle makes

Oil Reset Functions Features:
- Innovative one-click oil reset for VW, for Audi, for BMW, for Mercedes,for Seat, for Skoda, for Volvo, etc.
- Support engine oil, spark plugs, front brake pads, back brake pads, air conditioner, brake liquid, coolant liquid, vehicle checking , etc. resetting for BMW. And the supported for BMW models are F01/F02/F03/F04/F07/F10/F11/F12/F13/F18/F20/F30, etc.
- Support for Mercedes Benz new C Class, E Class models and for Mercedes Benz VITO/VIANO/SPINTER.
- Support the lifespan percentage resetting of engine oil for Buick, for Cadillac etc.
- Support for Porsche Cayenne, for Panamera till 2012
- Support maintenance light reset for Volvo, for Land Rover.

Package including:
- 1pc x OBD II-16
- 1pc x HONDA-3
- 1pc x KIA-20
- 1pc x MAZDA-17R
- 1pc x HYUNDAI/KIA-10
- 1pc x Main Cable (DB15_Male To VGA_Male)

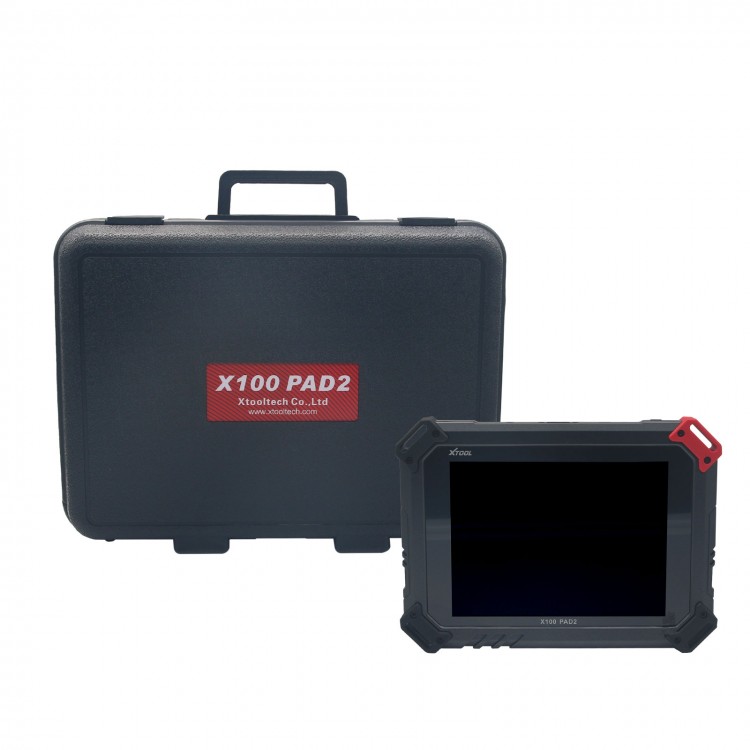

- 1pc x X-100 PAD 2
- 1pc x DC12V(AC100~240V) 3ACharger
- 1pc x US Power Adapter
- 1pc x EU Power Adapter
- 1pc x EEPROM
- 1pc x USB Type-C to Mini USB cable
- 1pc x Type-C cable
- 1pc x Certificate of Quality
- 1pc x Packing List
- 1pc x User Manual
