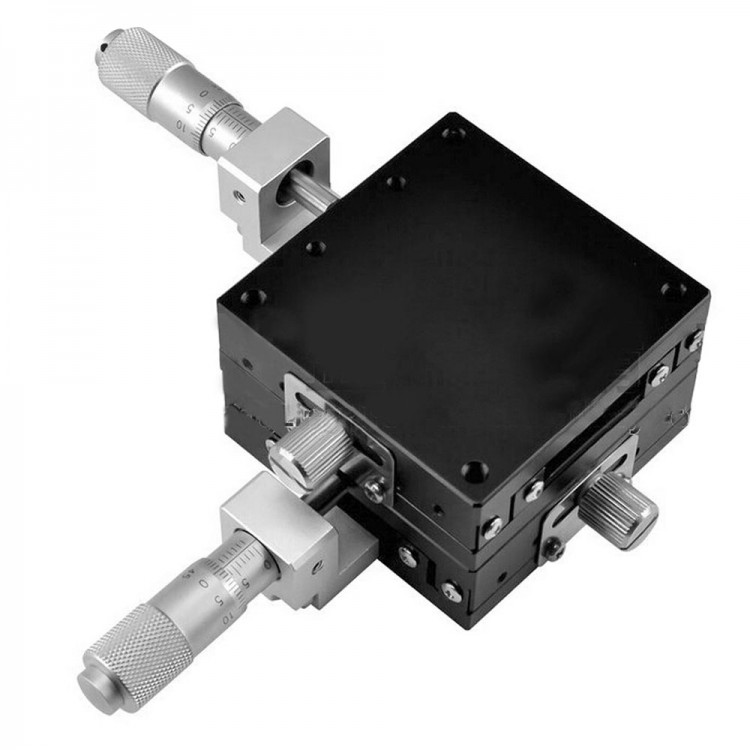

XY-Axis Stages Linear Stage Ball Bearing Precision Manually Platform 60x60mm
Description:
- Axes of Travel :X, Y
- Travel in X and Y: 13mm
- Load Capacity: 4kgf (39.2N)
- Bearings: Ball bearing
- Main Material: Alluminum alloy
- Minimum scale: 0.01 mm
- Accuracy: 0.01 mm
- Parallelism: 0.03 mm
- Weight: 0.42kg
- The XY60-C-BB Metric Linear Translation Stage is a high precision linear stagte that incorporates 13mm (±6.5mm) travel into a 60 x 60mm footprint
- The guide rail consists of high precision steel ball and carefully made steel rod that feature high precision
- The locking mechanism secure the stage position with negligible motion when the stage is engaged and disengaged
