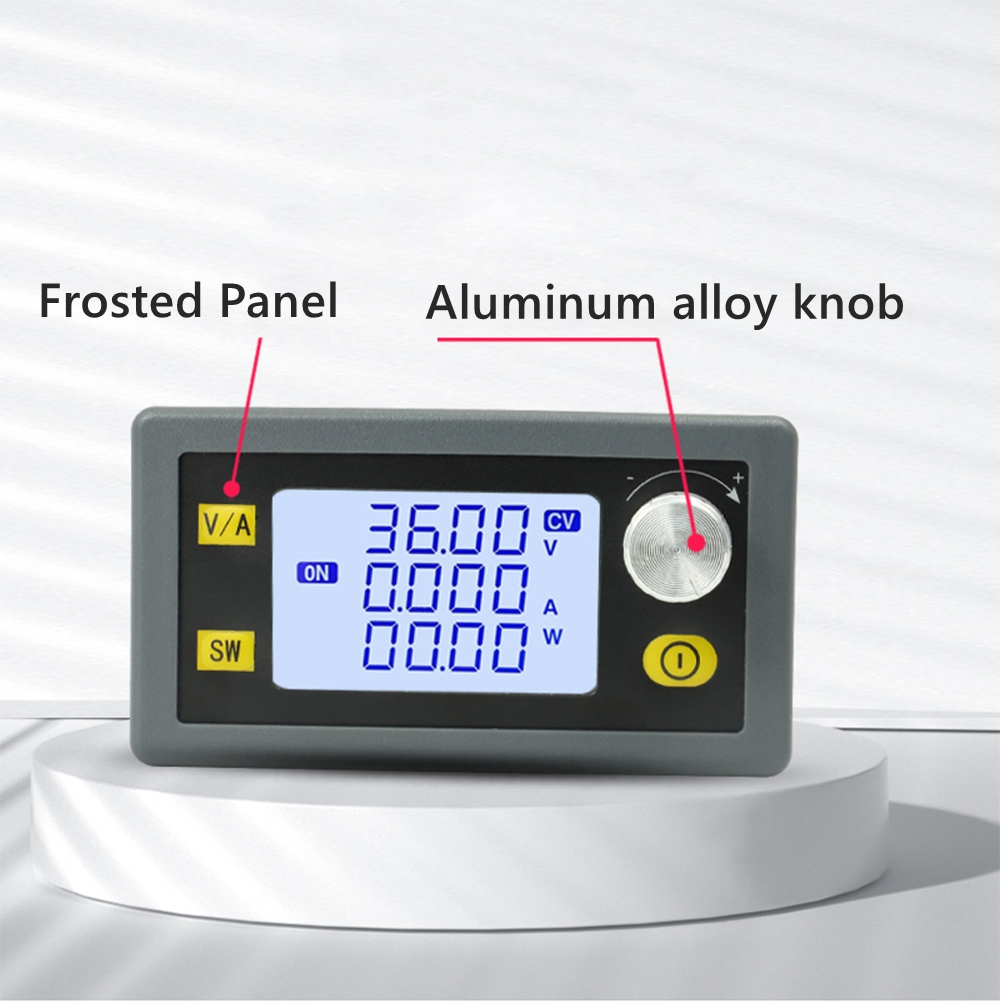

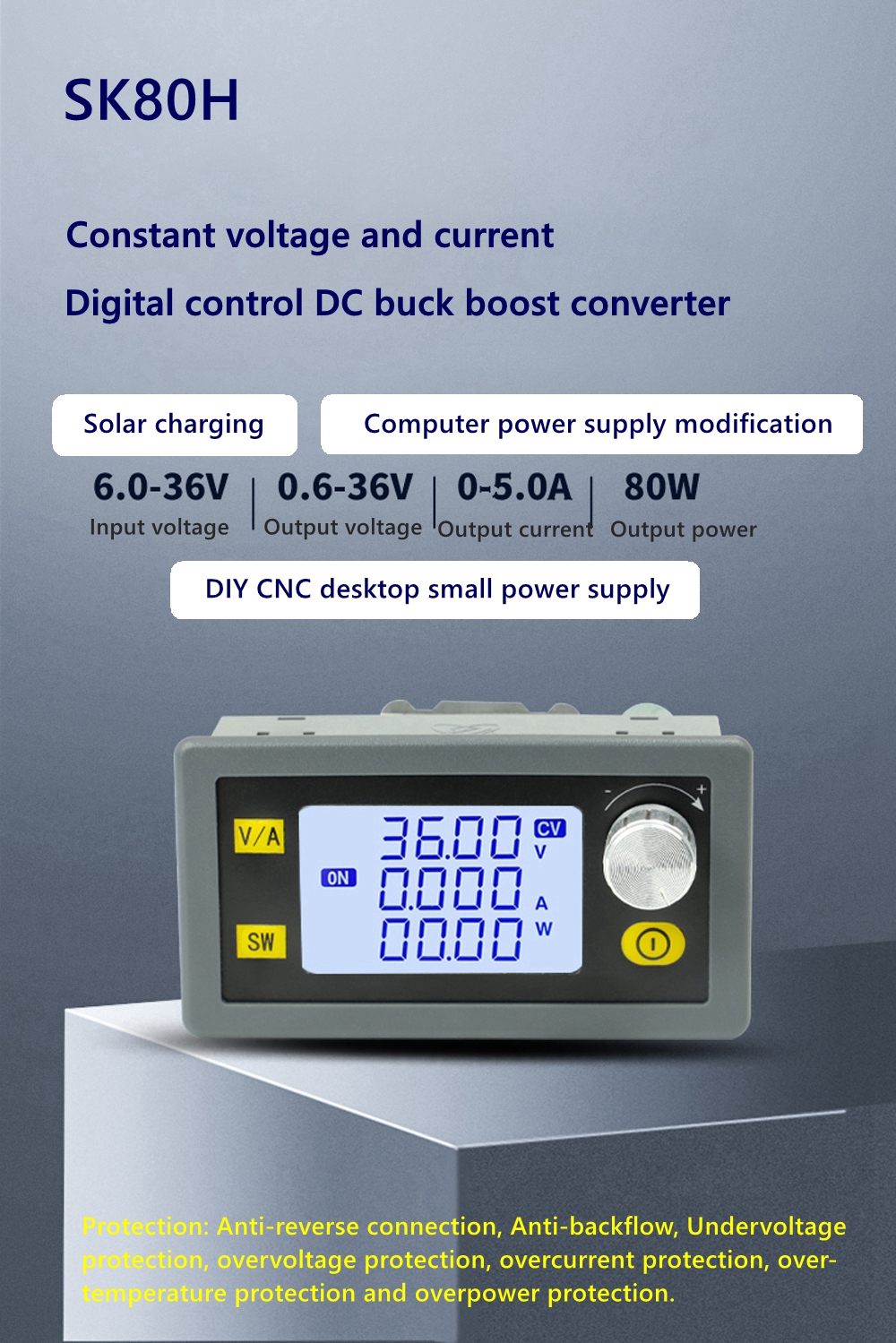

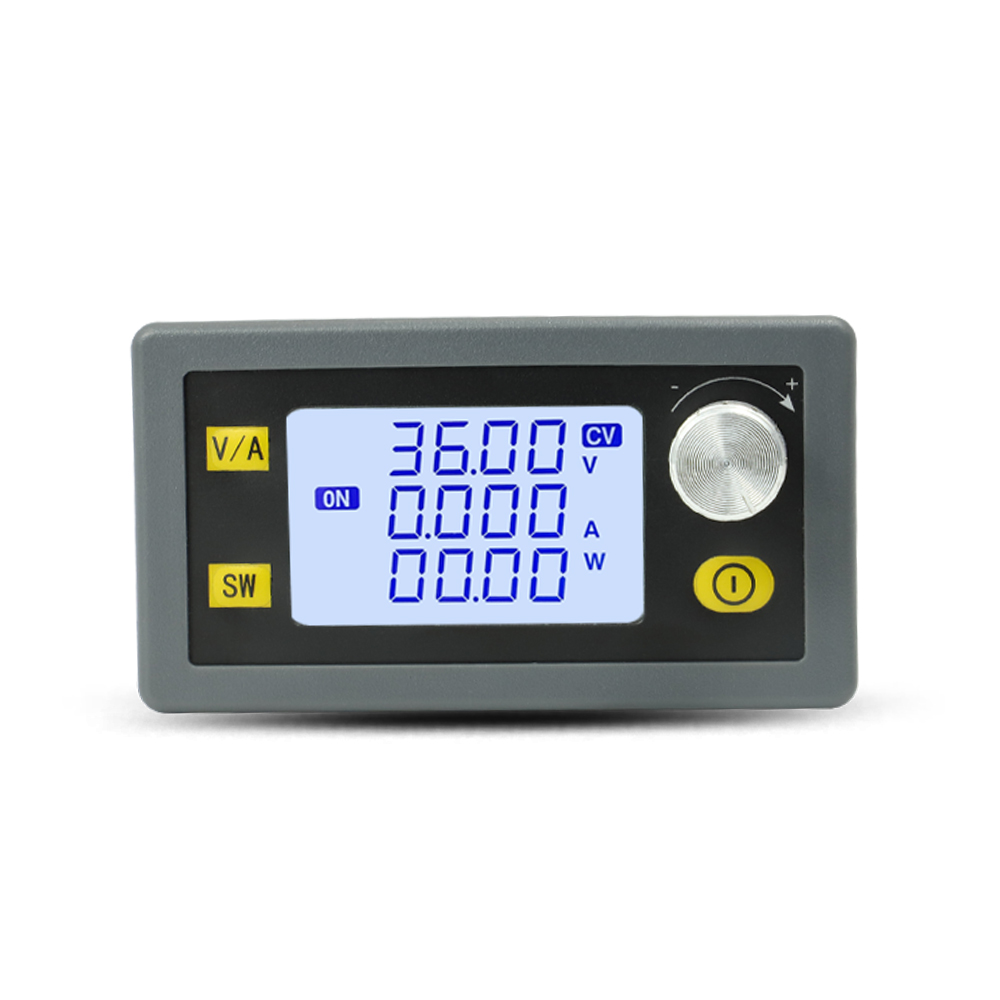

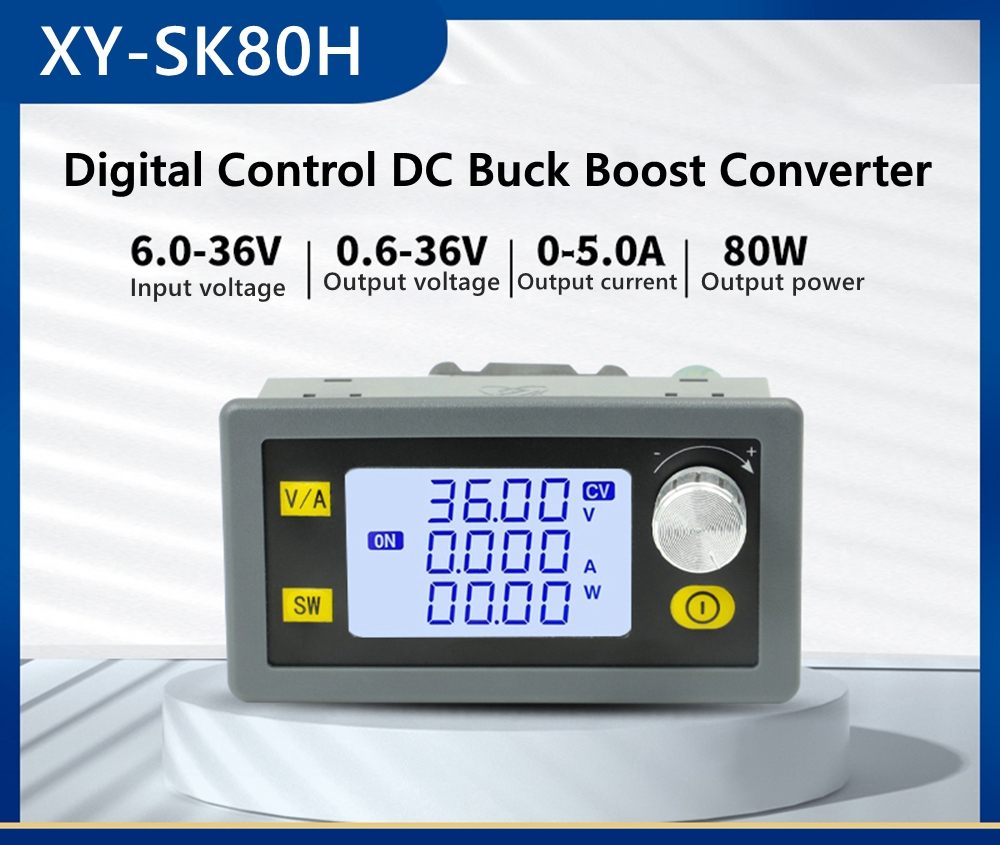

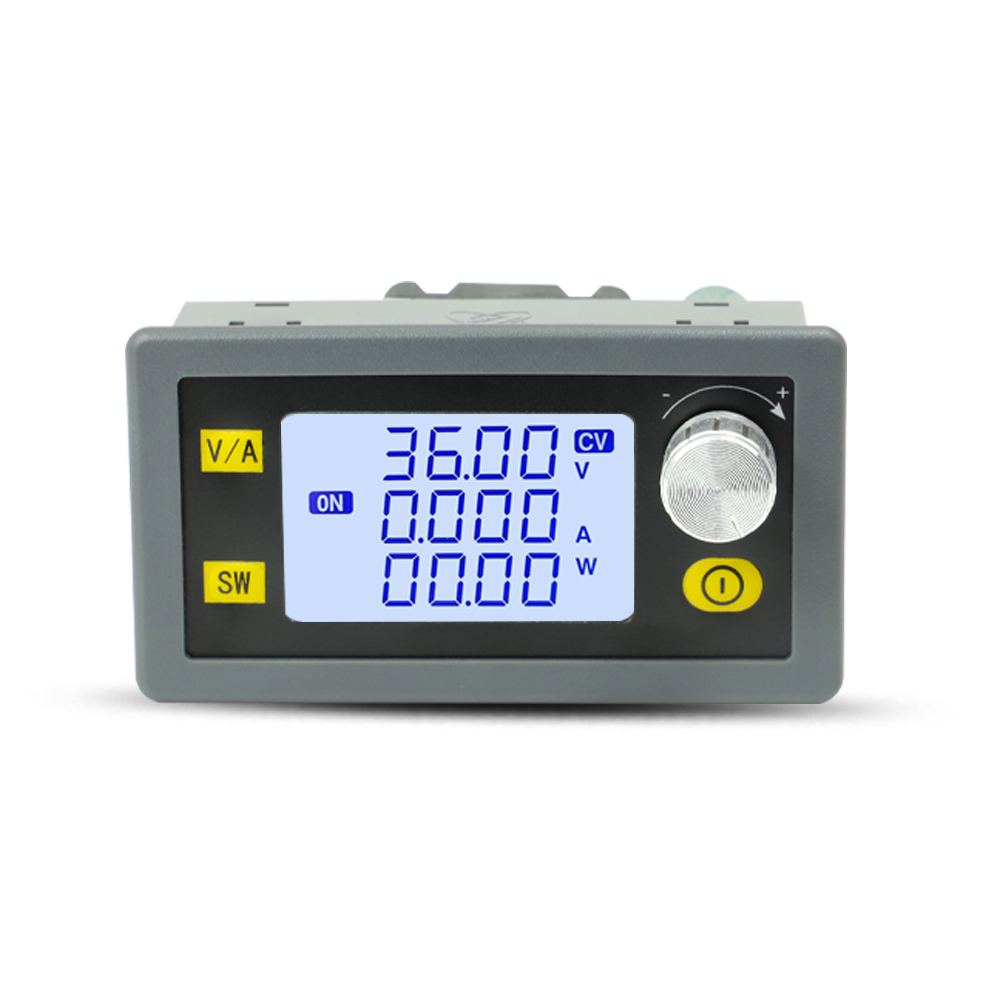

XY-SK80H Digital Control DC Buck Boost Converter Constant Voltage and Constant Current Solar Charging Module

XY-SK80H Digital Control DC Buck Boost Converter Constant Voltage and Constant Current Solar Charging Module

Features:
- Solar charging
- Computer power supply modification
- DIY CNC desktop small power supply
- Capacity/Energy/Running time statistics

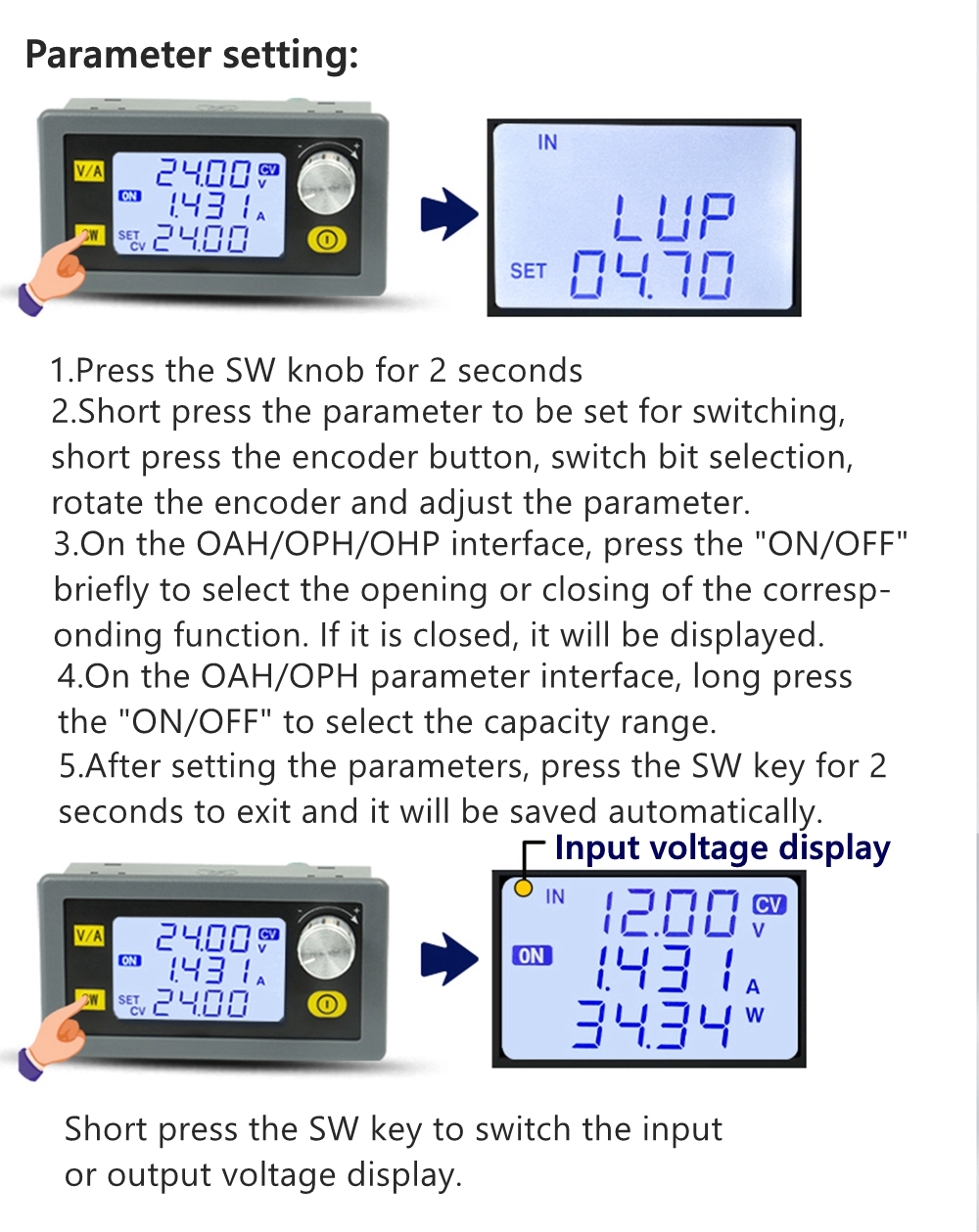

- Setting the maximum capacity/Energy/running time
- Note: When AP/OPH and OHP functions are not enabled, the power supply will automatically record the capacity/energy and operation time. After OAH/OPH and OHP functions are enabled, the power supply will automatically turn off the output when the set value is reached; After the OHP function is enabled, the running time of the power supply is in the countdown mode;

Parameter:
- Model: XY-SK80H
- Input voltage: 6.0~36V
- Output voltage: 0.6~36V
- Output current: 0~5.0A
- Voltage accuracy: +/-0.5% +1 word
- Output power: 80W
- Current accuracy: +/-0.5% + 3 words
- Voltage resolution: 0.01V
- Current resolution: 0.001A
- Transmission efficiency: about 88%
- Soft start: yes

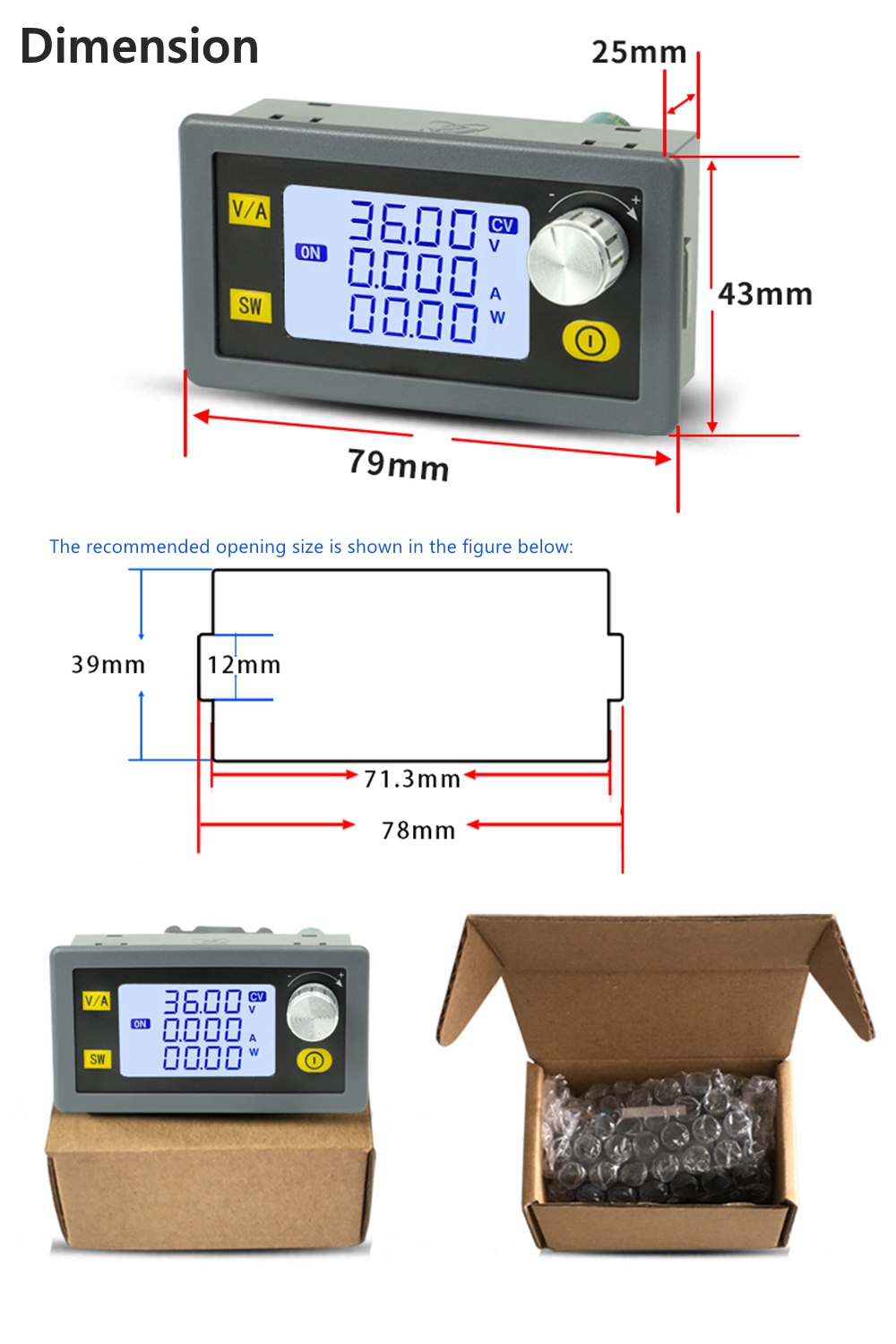

- Size: 79 x 25 x 43mm

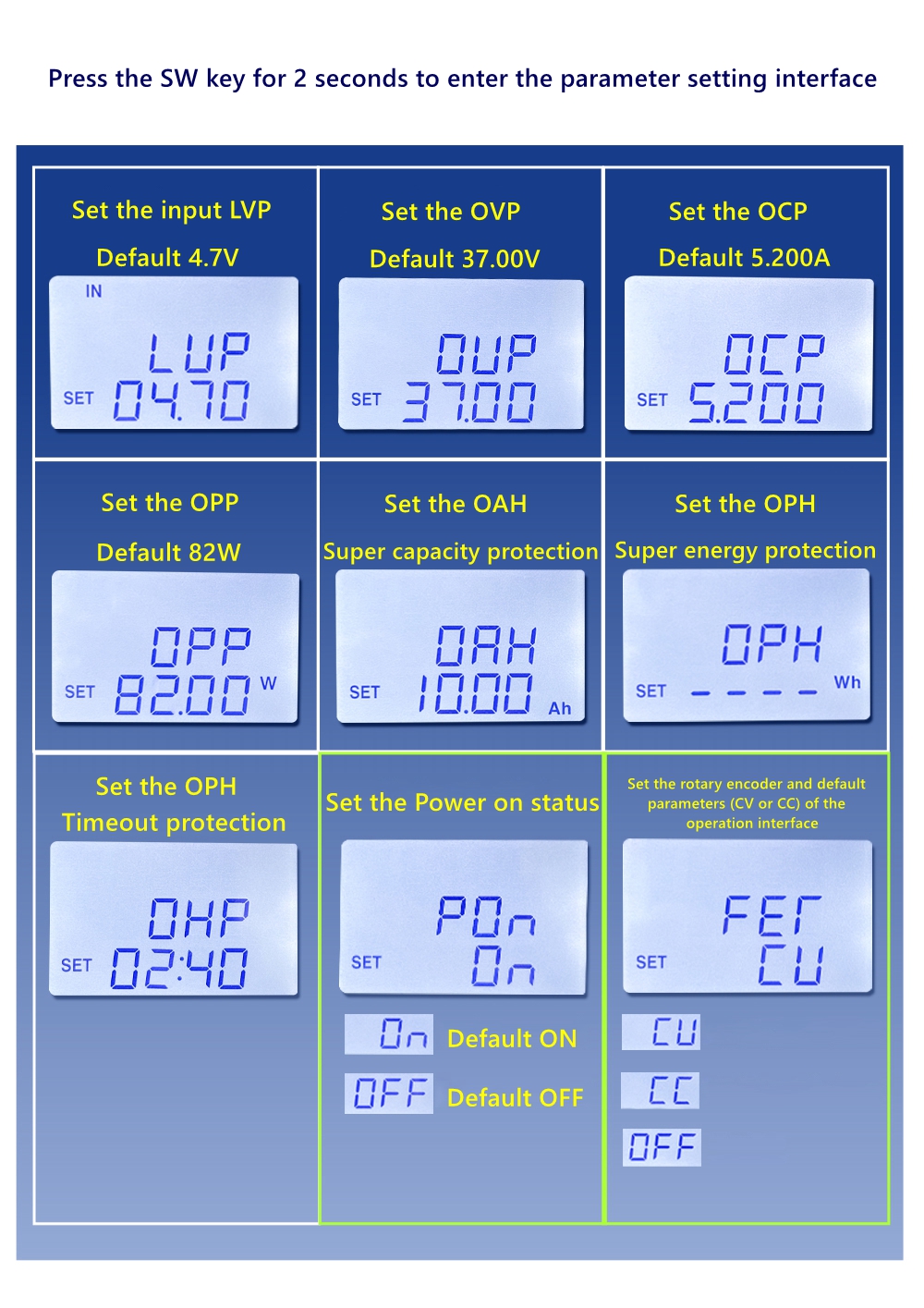

Protection:
- Input anti-reverse connection: yes
- Output anti backflow: yes
- Input undervoltage protection: 4.7~30V adjustable, default 4.7V
- Output overvoltage protection: 0~37V adjustable, default 37V
- Output overcurrent protection: 0~5.2A adjustable, default 5.2A
- Output overpower protection: 0~82W adjustable, default 82W
- Over temperature protection: yes; default 100℃
- Timeout protection: 0~100H adjustable, closed by default
- Over capacity protection: 0~9999AH, closed by default
- Superenergy protection: 0~9999WH adjustment, closed by default

Package Included:
- 1 x XY-SK80H Buck Boost Converter
