Y1 Standard Version Bluetooth Receiver Board Module QCC5125 Lossless Modify Speaker Amplifier Board

Y1 Standard Version Bluetooth Receiver Board Module QCC5125 Lossless Modify Speaker Amplifier Board

Y1 Standard Version:
- Without decoding function
- Bluetooth Chip: QCC5125
- Input: Bluetooth 5.1 (support for APTX-HD, LDAC), USB Type-C (buttons to adjust volume, pause)
- Output: Standard four-wire i2s (with MCK)

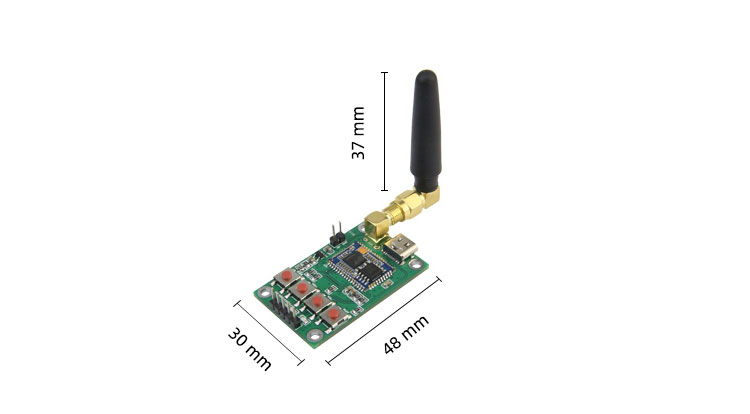

- Size: 48x30mm (with a antenna)

Features:
- Powerful function, outstanding sound quality
- Wireless input. Using QCC5125 Bluetooth 5.1 solution which is newer than CSR8675. Support encoding formats such as for LDAC, aptX-HD, AAC and aptX Adaptive. Support 24bit 96kHz audio CD-level sound quality, highly cost-effective. Supports USB type C input, wired connection to computer and mobile phone
- Good sound quality, no delay, no lag. Reduce the secondary loss of sound quality compression, accurately reproduce full audio broadband, HIFI-level high-fidelity
- Suitable for home audio to add Bluetooth wireless receiving function

Specifications:
- PCB board: 48mm x 30mm x 1.6mm (LxWxThickness)
- Weight: 18 grams (pin header spacing 2.54mm)
- External power supply: 5V DC (powered via pin headers)
- Input interface: USB Bluetooth 5.1 (QCC5125)
- Output interface: IIS (MCLK, BCLK, DATA, LRCK, GND)
- Bit depth sampling rate: 16-24Bit, 44.1-96kHz
- Power consumption: 0.025W (5mA)
- Bluetooth specifications: For LDAC, aptX-Adaptive, aptx-HD, SBC, AAC (Your phone must support for LDAC and APTX)

Package Included:
- 1 x Set of Bluetooth Receiver Module

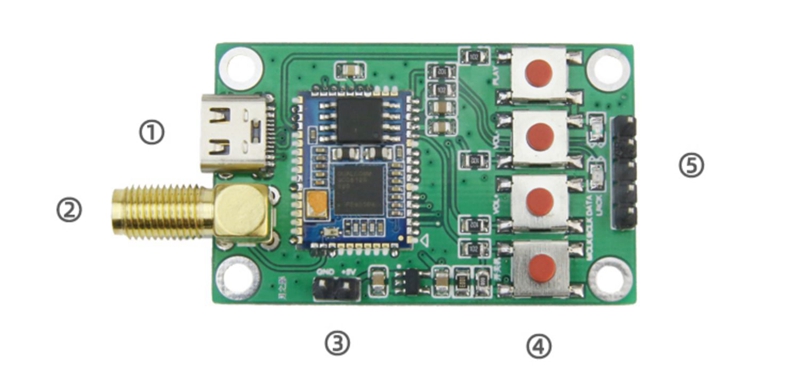

① USB audio signal input port, type C interface. All systems are driver-free. For Windows, Mac, Linux, Android phones, Apple phones
② Bluetooth antenna interface (automatically turns on when it powers on)
③ 5V external power supply input pin headers. The left is GND, the right is +
④ Function buttons are (reserved), volume +, volume -, play/pause
⑤ IIS signal output pin headers: MCLK, BCLK, DATA, LRCK, GND
