Description:

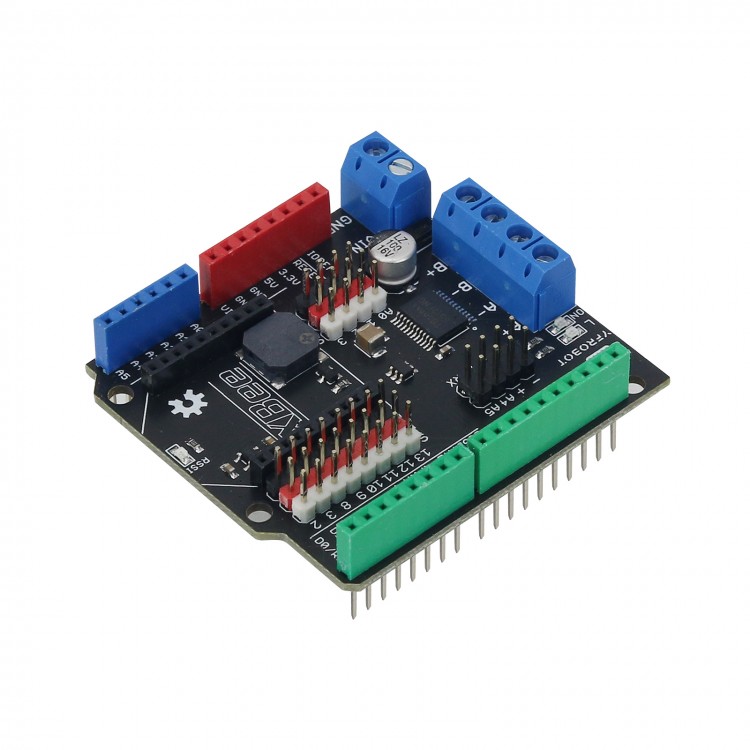

- PM-R3 development board has the same pin position with Arduino R3, so users can apply it on UNO R3 or mega 2560. If you want to make a smart car, this R3 developing board is a good choice. It can drive DC motor of two channals, and it has H bridge composed by MOSFET, and comparably low conduction resistance, and brake function, and higher motor driving frequency. Each H bridge can provide 1.2A,3.2A summit outpput current, the motor voltage input range is 2.5V to 13.5V.
Specification:
- Input voltage:3-9V
- Output voltage:9V (custom)
- Output current:3A (max)
- Motor drive voltage:9V
- Drive current:1.2A/3.2A
- Buzzer
- XBee expansion interface
- Multichannel sensor interface
Details:
- Module step-up unit,continuous stable 9V 3A output
- Motor output interface can connect 2-channel DC motor
- Power input interface,voltage 3.7-8V
- Expansion port 1,expansion port I2C,serial port & extra 4-channel analog interface A0-A3
- Expansion port 2,expand extra 8-channel digital port
- XBee expansion port,used to expand support XBEE pin wireless devices
- Passive buzzer output
Packing list:
- PM-R3 developing board x 1
- User manual x 1
