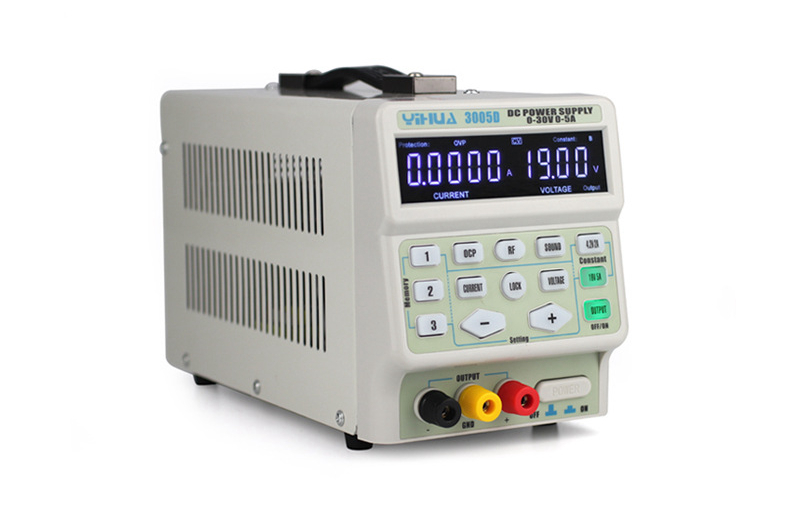

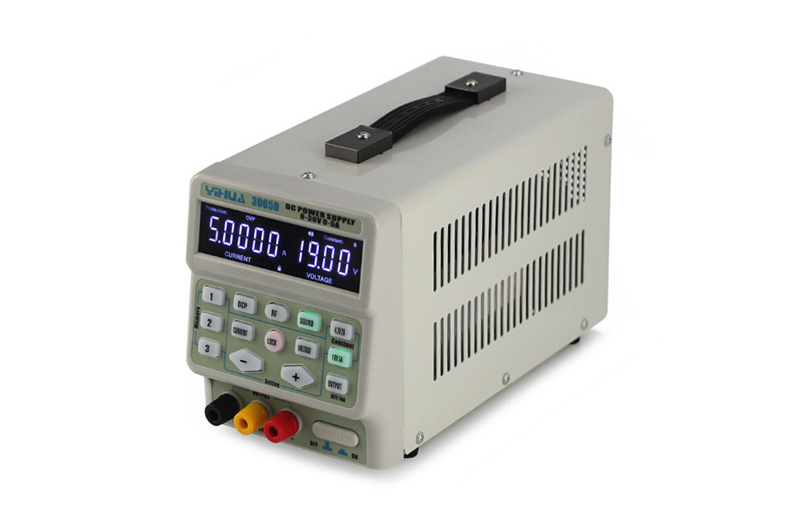

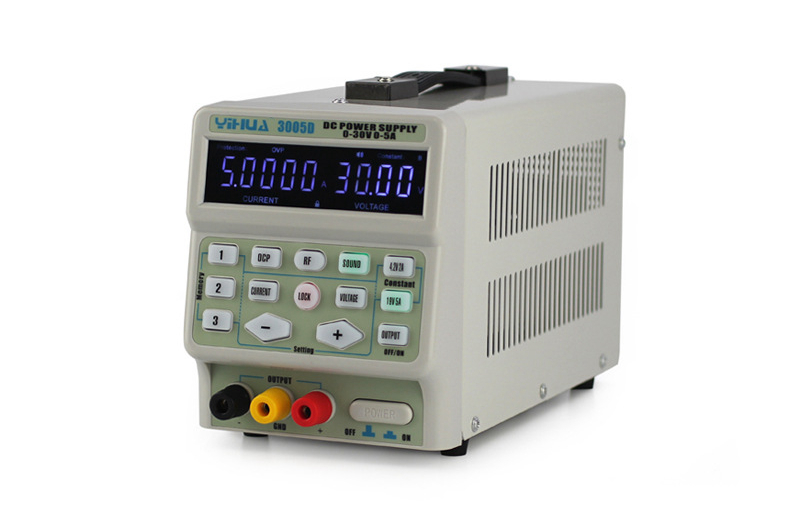

YIHUA 3005D DC Power Supply 30V 5A 150W Digital Programmable Switching Power Supply Cellphone Repair

YIHUA 3005D DC Power Supply 30V 5A 150W Digital Programmable Switching Power Supply Cellphone Repair

Advantages:
1. 30V 5A digital programmable switching power supply, digital adjustment of current and voltage, convenient and quick to use
2. Three-segment parameter storage function, easy to call, avoiding frequent parameter setting
3. The function setting lock can effectively prevent misoperation and make it safer and more reliable
4. Fixed output button, easy to call up parameters

Features:
- Digital adjustment, convenient and fast: Digital adjustment of current and voltage is more stable, more intuitive and longer life than traditional potentiometer adjustment
- With function setting lock: Effectively prevent parameter changes caused by misoperation, more reliable
- With mobile phone radio frequency function
- 4.2V 2A/19V 5A fixed output function button: Just click the button to easily call up the parameters
- Three-section parameter storage function: With three functional storage points, the three commonly used parameters can be stored separately, which is convenient to call and saves the trouble of frequent parameter setting
- Output state memory function: When the memory function is turned on, the output state before turning off the power switch can be memorized
- LED digital dynamic display: 5-digit current and 4-digit voltage LED display accurately
- One-key frequency lock to protect data
- Double panel, SMT is more stable
- Microcomputer, accurate PID temperature control, stable constant temperature
- One key to open the memory function
- Humanized power cord holder on the back
- Comfortable buttons, scientific layout, human nature backlit display

Specifications:
- Model: 3005D
- Output power: 150W
- Power supply voltage: 220V±10%, 50Hz
- Adjustable range: 0~30V, 0~5A
- Working conditions: 0 to 40℃, relative humidity <80%
- Storage conditions: -10 to 70℃, relative humidity <70%

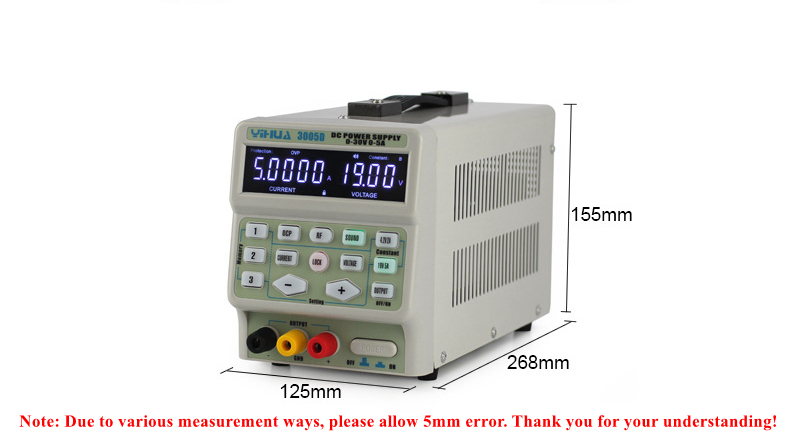

- Dimensions: 268 x 125 x 155mm±5mm (LxWxH)
- Weight: 2.3kg
- Voltage output accuracy: ±0.02V
- Voltage ripple factor: <300PPM/C
- Ripple noise current: <1% Vrms
- OCP current value: 0-5A, accuracy: ±0.01A
- Signal test frequency range: 30~1800MHz, including mobile phone signal test
- Signal strength: ≥10dBM

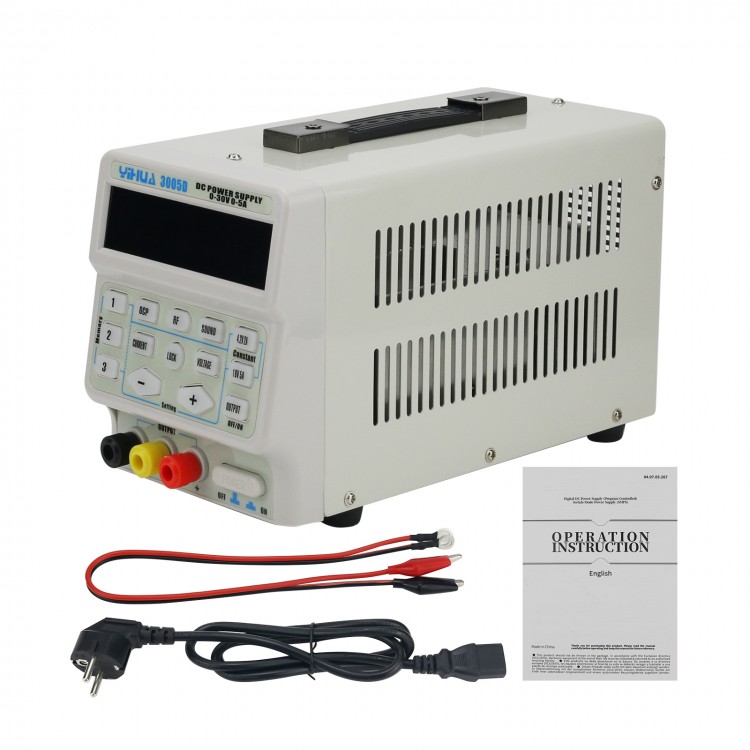

Package Included:
- 1 x Set of Power Supply
