YZX Studio ZC920 Fast Charger Adapter Dual 100W PD2.0/3.0 QC2.0/3.0/4 for Mobile Phone and Laptop with Type-C Interface

YZX Studio ZC920 Fast Charger Adapter Dual 100W PD2.0/3.0 QC2.0/3.0/4 for Mobile Phone and Laptop with Type-C Interface

Parameter:
- Size: 63 x 46 x 19mm
- Input interface: DC5.5 x 2.5mm+USB-C
- Input protocol: DC+PD2.0
- Input voltage: 10-26V (The limit withstand voltage shall not exceed 28V.)
- Output voltage: 3-21V
- Output current: 5A x 2 max
- Output power: 100W x 2 max
- Output ripple: 200mV max
- Static power consumption: 6mA max
- Conversion efficiency: 24V in 20V 5A out 98%
- System setting method: press and hold the button and then plug in, release the colorful flash to manually enter the setting, short press to cut the color, and long press to change the setting.

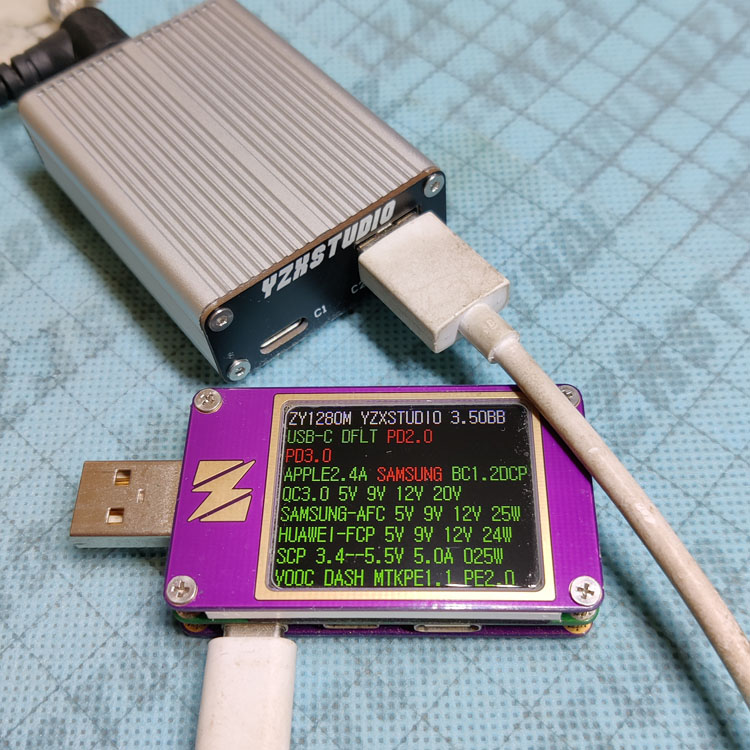

Usage:
- The input is connected to ordinary PD or DC power supply
- The power must be greater than or equal to your desired output.
- C1 port buck-boost, C2+A port pure buck.

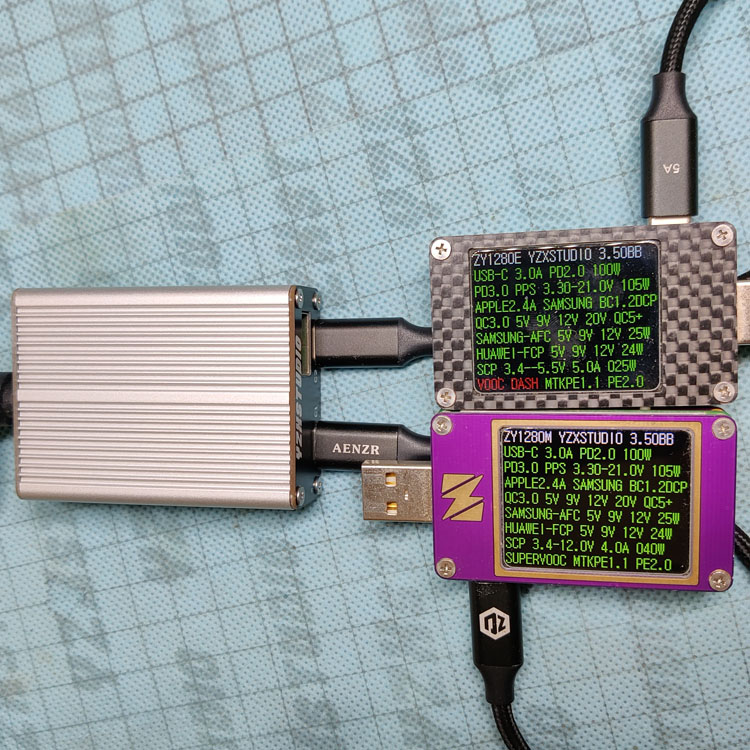

- C1 and C2+A are independent of each other and can be fast-charged by two channels at the same time.
- C2 and A share one way, and only 5V2.4A slow charge is inserted at the same time. Use a C2 or A alone to support fast charging.
- If you want to double-hundred output power supply voltage, you need 21V+.(24V is recommended)
- 16-21V input, C1 default output 100W, C2 default output 15V3A MAX.
- 10-15V input, C1 default output 65W, C2 default output 12V3A MAX.

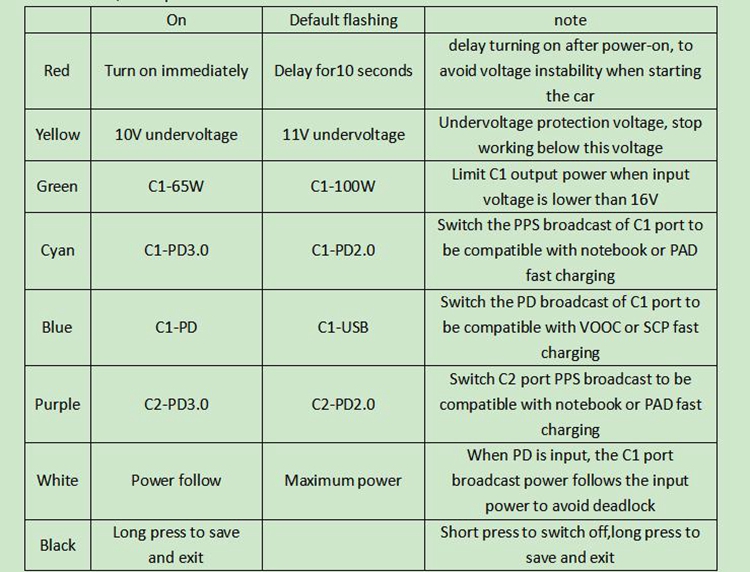

- You can set 10-15V input, and C1 also boosts the output to 100W. See the table below for the setting method.
- Output various fast charging protocols to charge mobile phone books and other things.
- The indicator light is red, power-on; green, standby; blue, fast charging.
- After work, short press the button to turn on and off the machine.

Note:
Do not touch back for the following reasons:
- There is no guarantee that a certain charging power will be reached, such as 65W, especially for Xiaomi, for OV and for Huawei. Because the design of mobile phones is such a false standard, the peak value cannot reach this power.
- It is not guaranteed to be absolutely compatible with a certain protocol, especially other new mobile phones that are converted to 40w 66w fast charge and for OP OnePlus 65w50w.
- The industrial aluminum profile shell has many scratches, flaws, bumps and watermarks. Please detour for obsessive-compulsive disorder, and do not touch back on the grounds of appearance flaws.
- Not compatible with any V1V0-1Q00 fast charge
- Not compatible with any for Xiaomi full-speed fast charge, actually only up to 18-27-45w
- Not compatible with any for Harmony OS mobile phone
- Incompatible with any for Huawei 40w66w
- Not compatible with for OnePlus 10P
- The self-consumption power is less than 6mA, and there is no bug that the static power consumption of the load is not reduced when the load is unplugged.
- If you plan to charge it to a 40w or 66w mobile phone, compatibility is not guaranteed. Both versions do not support for Xiaomi fast charging.
- The compatibility of C1 port charging VOOC and SCP is not guaranteed. These two protocols are not officially compatible with the C port. Although they can be output, the mobile phone may not apply. According to netizens testing, shutting down and then plugging in the charger can trigger fast charging. In addition, due to the emarker limit, the maximum can only be 5a.
- To use VOOC or SCP for the C port version, you can use the C to A OTG head to convert it to the A port, and then use the A to C cable to plug in the phone to charge.
- OV OnePlus to see the current: enter *#899# *#800# *#808# on the dial interface and select Manual Test - Device Debugging - Charging Test - SuperVoocCharger, after entering, it will be displayed as shown in the figure. Fast charging will not be displayed when charging quickly because this is a vooc not a warp but it has been fast charged. The vooc and warp only show the same speed and compatibility.
- The original and first SW2305 path-free MOS-free sampling resistor avoids the problem of common ground, and greatly optimizes the circuit to improve efficiency and increase stability.

Package Included:
- 1 x Fast Charger Adapter
