Zhiyun Crane 2 Gravity Adjustment Plate Gimbal Accessories for Canon EOS 1DX Crane 2 Stabilizer
Features:

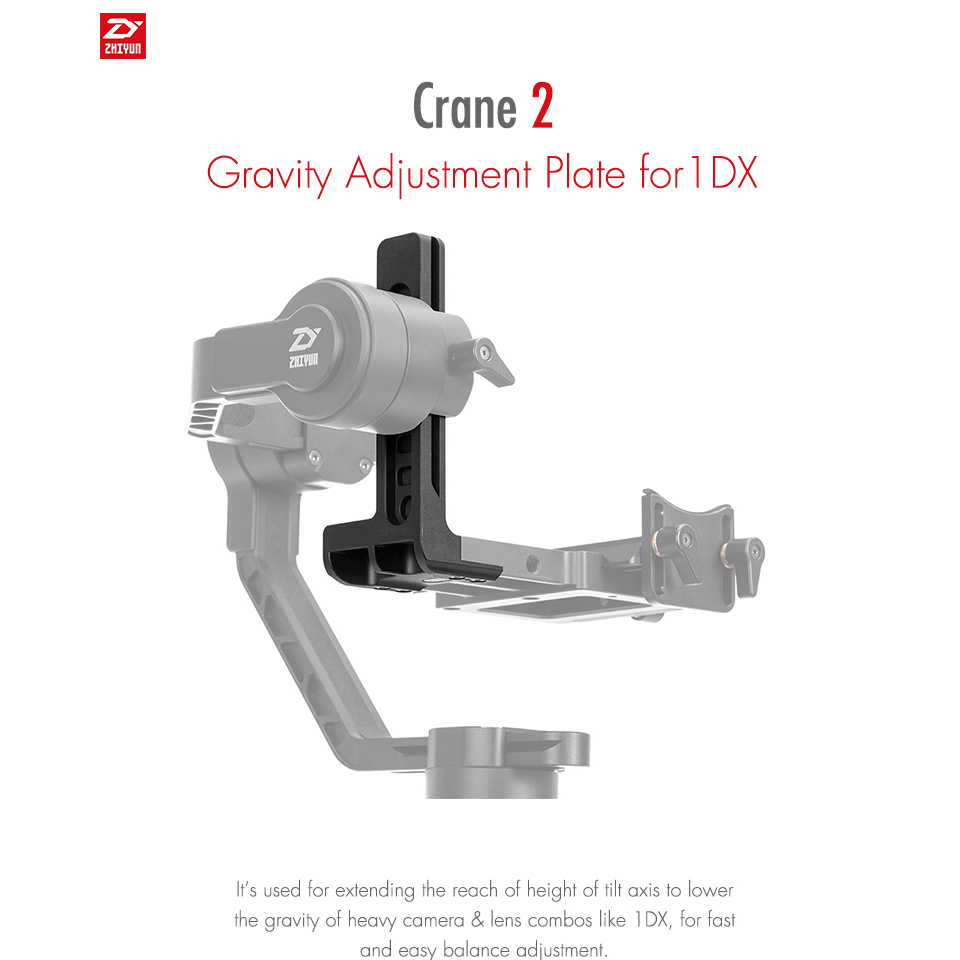

-It's used for extending the reach of height of tilt axis to lower the gravity of heavy camera&lens combos like 1DX,for fast and easy balance adjustment.

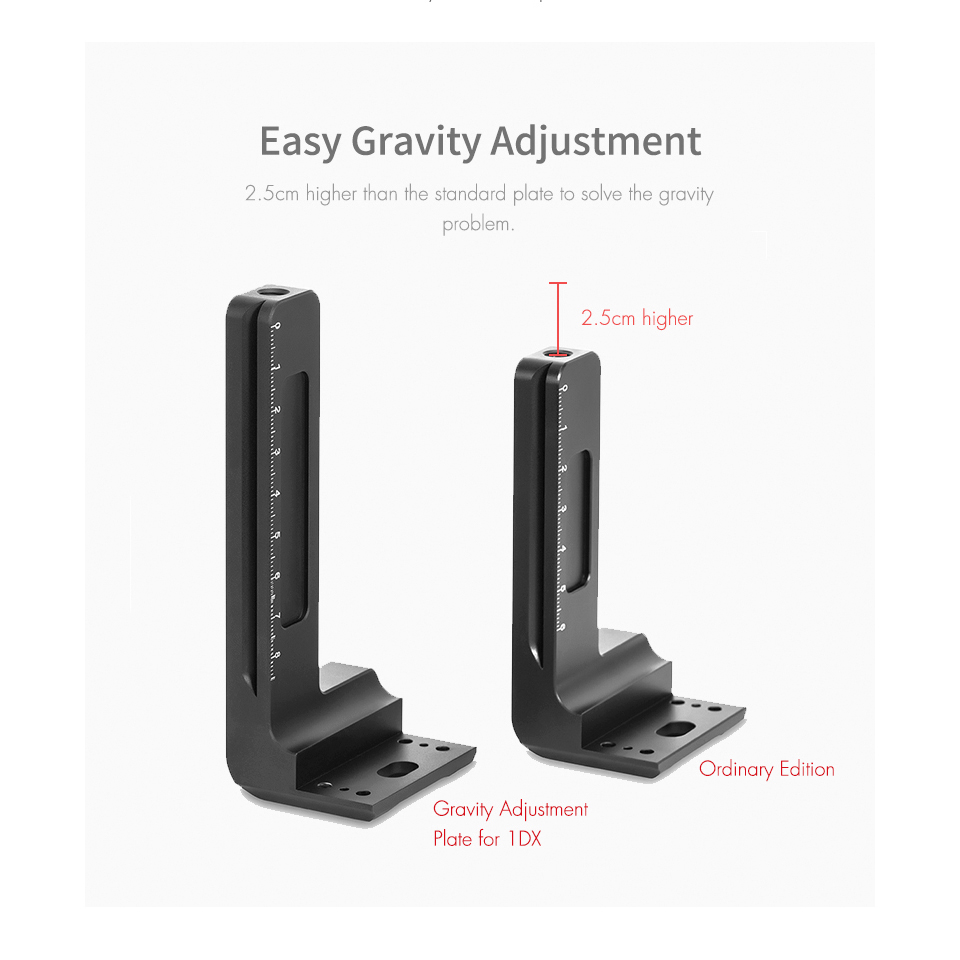

-This plate is 2.5cm higher than standard plate to solve the gravity problem, 1 DX is 8.5cm(3.35in), the Standard Plate is 6cm (2.36in).

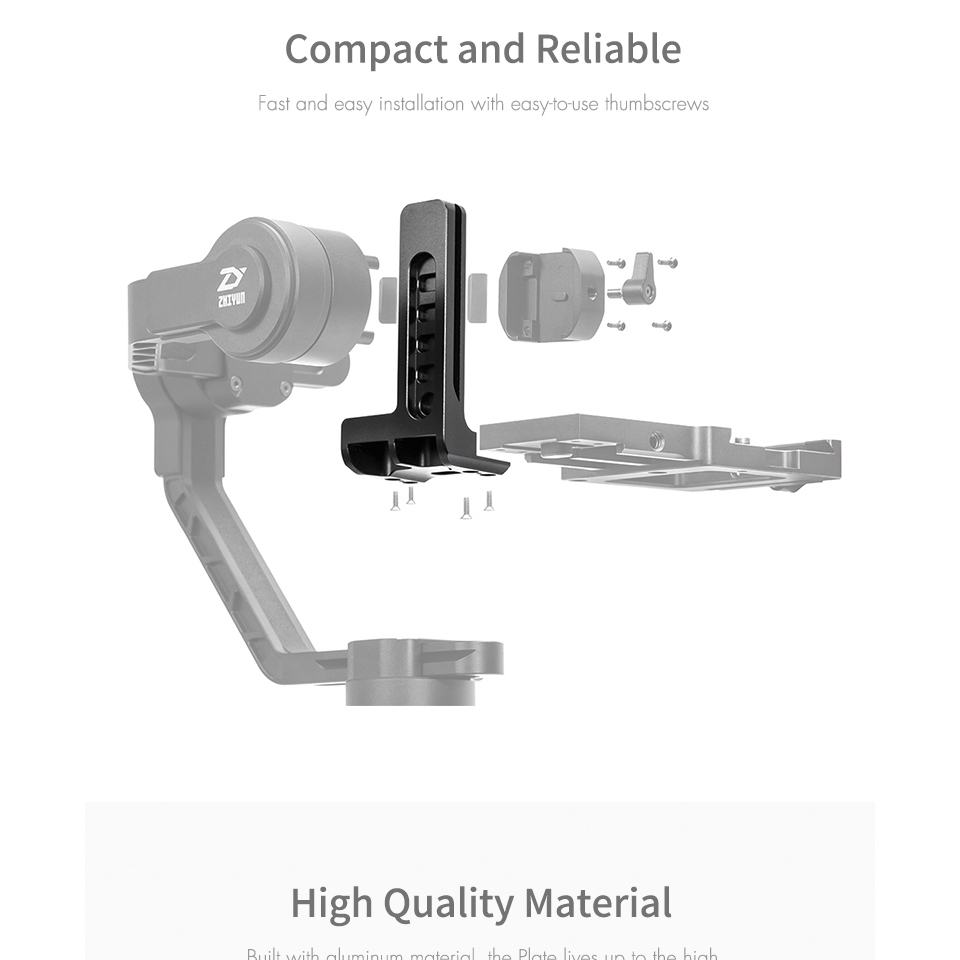

-This plate features fast and easy installation with easy-to-use thumbscrews.

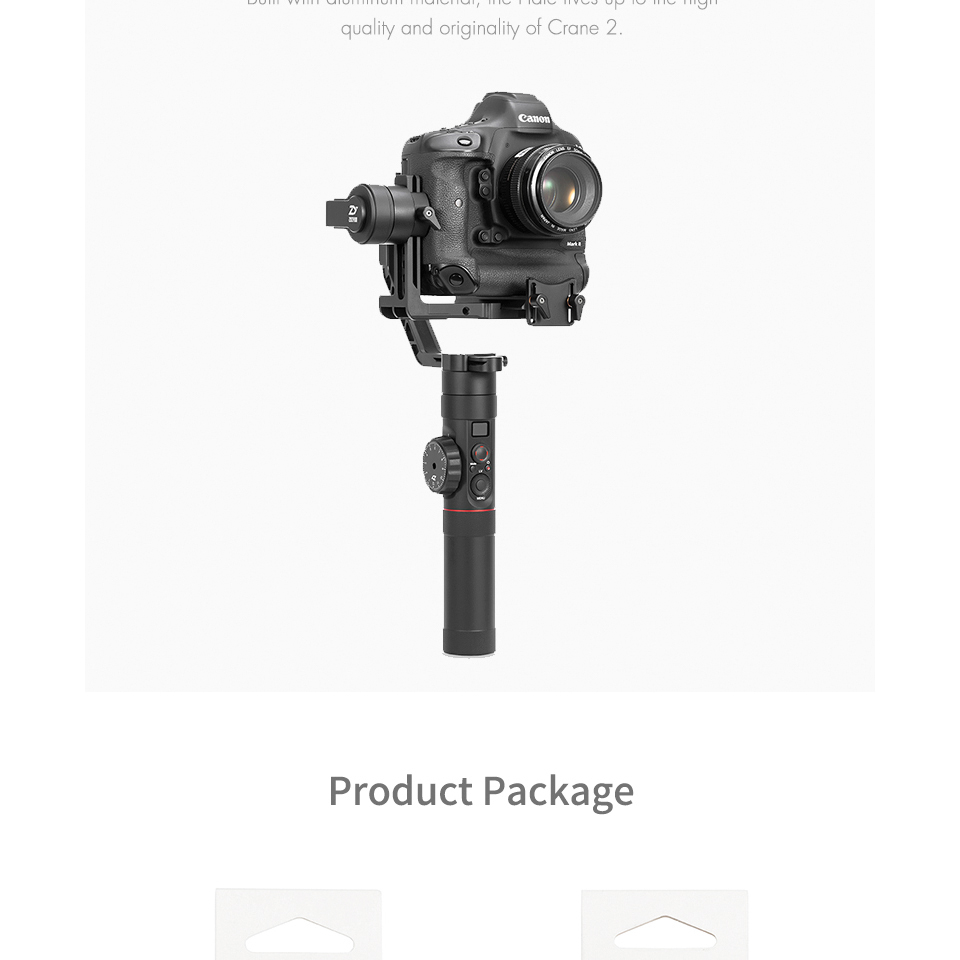

-Made of quality aluminum material, the plate has the high quality and originality of Crane 2
Replacement Guide:
1. Take off the mounting plate and unscrew the 4 fixing screws from the adjustment plate and mounting plate base with the 2.0mm hexagon wrench, then remove the mounting plate base.
2. Loosen the thumb screw on tilt axis, and then unscrew the 4 screws from the tilt axis cap with the hexagon wrench. Then take out the adjustment plate.
3. Slot the 1DX gravity adjustment plate in on tilt axis, put out two pieces of dovetail-shape pads, then cover with the tilt axis cap. Tighten up the 4 screws to finish. (Note: make sure the dovetail-shape pads are in correct direction before tucking in.)
4. Install the mounting plate base onto the adjustment plate, tighten up the 4 screws to finish installation.

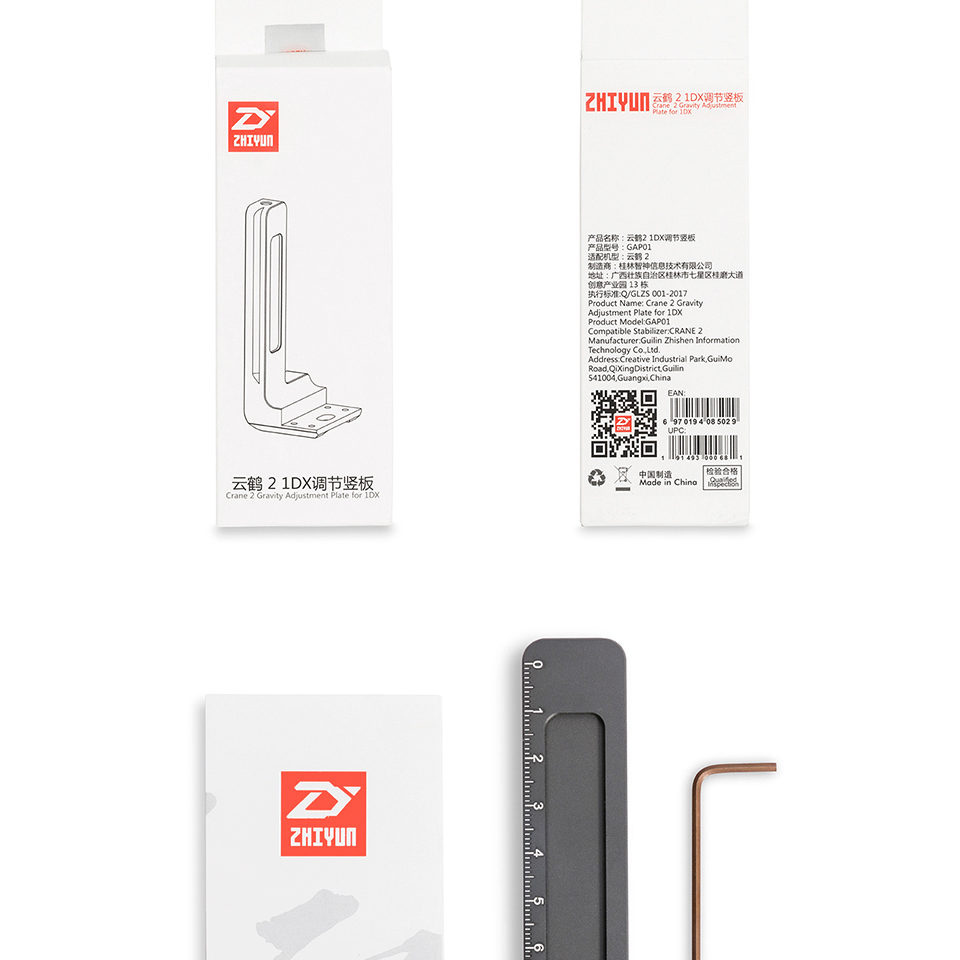

Package List:

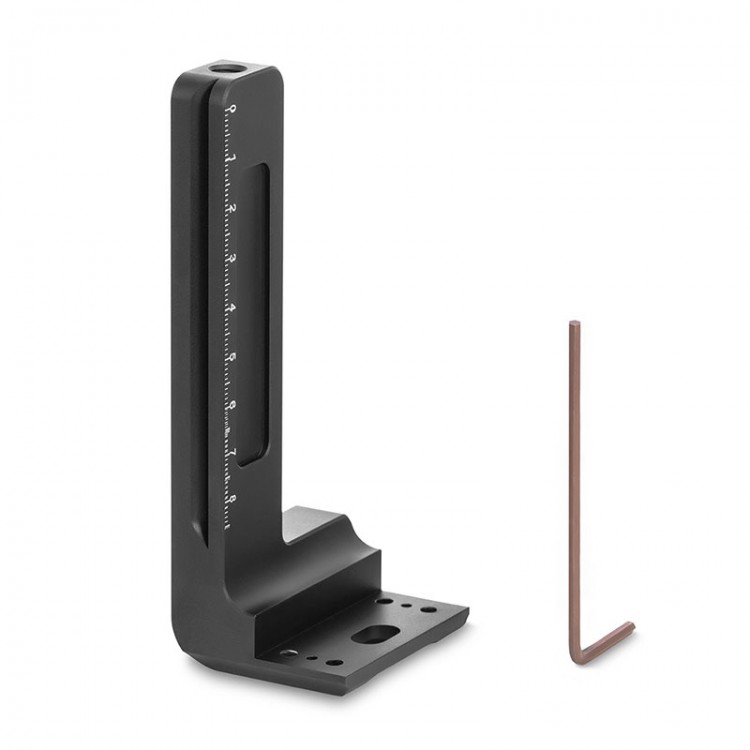

1 Set of 1DX Gravity Adjustment Plate
