Overview:

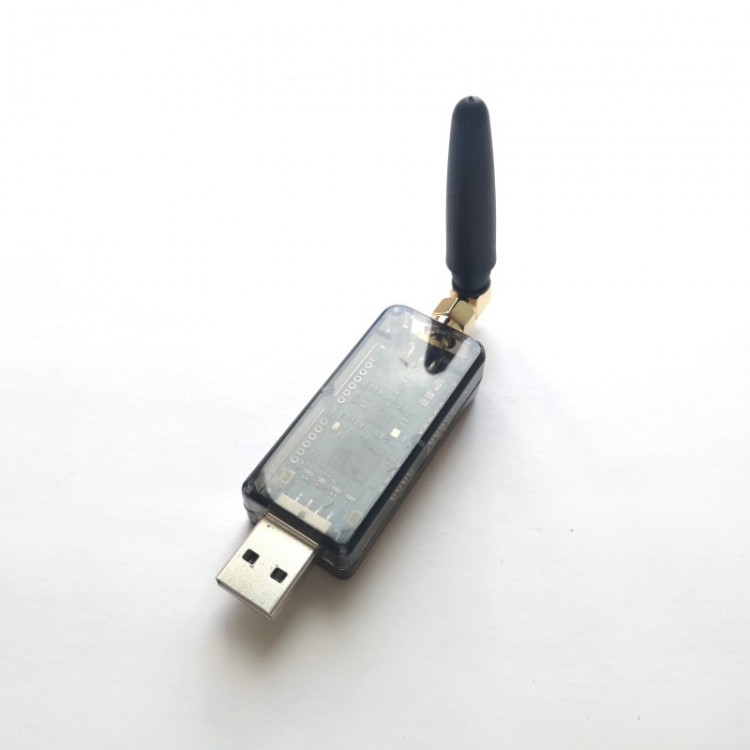

Tiny USB stick or dongle, adapter of development board for 2.4G multiprotocol RF.

Features:
- 2.4GHz multiprotocol RF development board (for OpenThread, Zigbee, BLE, IEEE802.15.4, 6LoWPAN and proprietary) based on CC2652P1FRGZR chip for TI
- Communicates with the host computer via the common CH340E USB-UART bridge
- CJTAG debug header, flashed firmware or debug with JTAG
- Self-programming via the serial bootloader (for TI) with bootloader bit enabled
- SMA antenna port for an external antenna with personal choice
- General LEDs (Red-Power on indication; Green-DIO7; Blue-DIO6)
- General Buttons (BTN1--DIO13<Bootloader-enable> BTN2--DIO14 RST--nRESET)
- IO breakouts with 2.0mm pitch holes for connecting peripheral device
- Low power LDOs
- ESD protections with USB interface
- Easy to use with zigbee2mqtt for Koenkk's
- Easy to use with border router for TI's OpenThread

Testing:

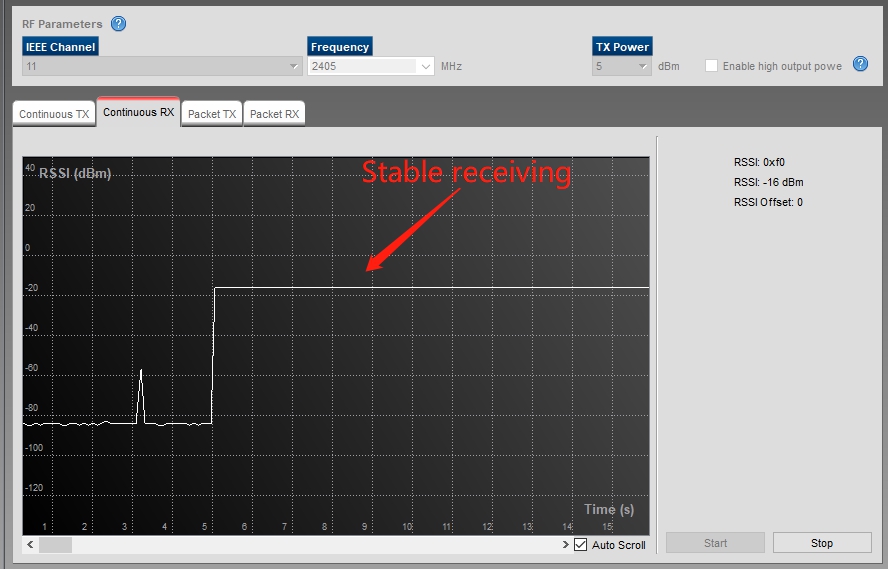

1. RF performance testing

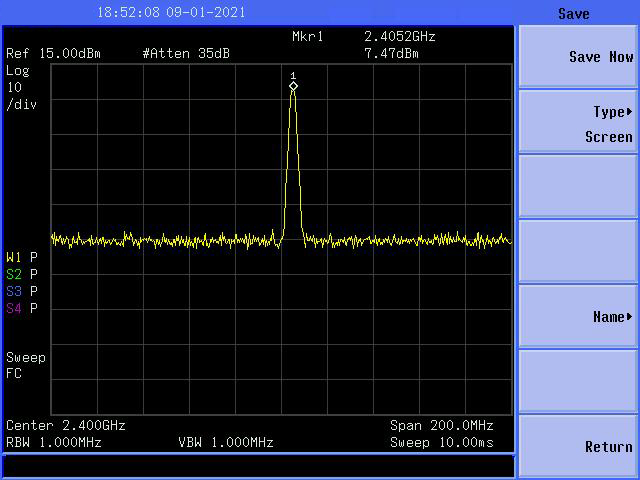

2. Frequency spectrum testing


3. Function testing
4. QC pass

BOM Manufacturers:
1. Inductor -- for muRata
2. Capacitor -- for muRata/AVX/Samsung
3. Resistors -- for FH
4. Crystal oscillator -- for TXC/TKD
5. LEDs -- for Orient

Flashing:
1. Via USB interface with bootloader enable:
A. flash firmware using Flash Programmer 2 for TI:
press BTN1 and keep holding --> click the Reset button --> wait a few seconds --> release BTN1 button --> Flash programmer 2 operation
B. flash firmware using cc2538-bsl.py

2. Via cJTAG interface with debugger tools for TI

Firmware:
The dongle comes stitched with coordinator firmwares, you can flash it with router or other types firmware via USB with bootloader enable condition.

Package Included:
- 1 x Set of Dongle
