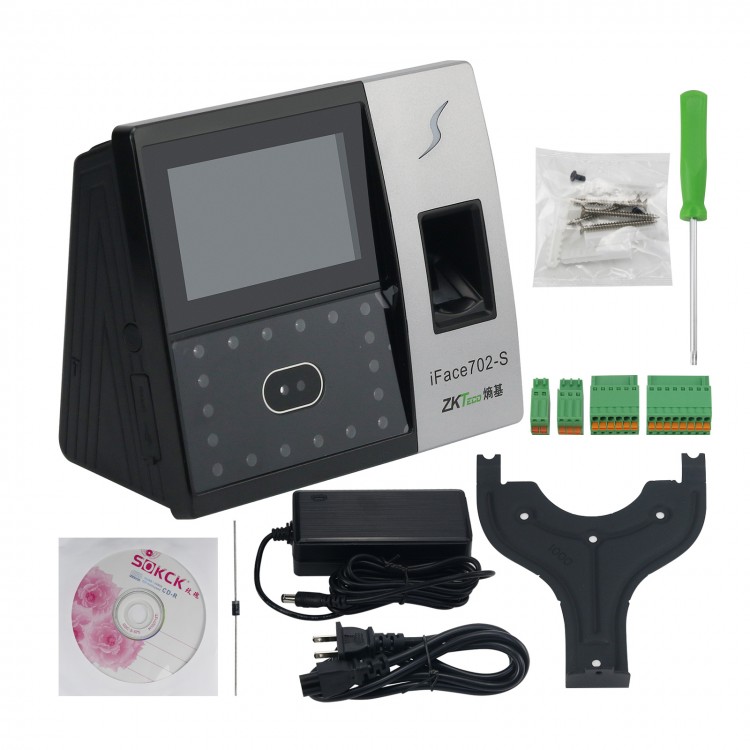

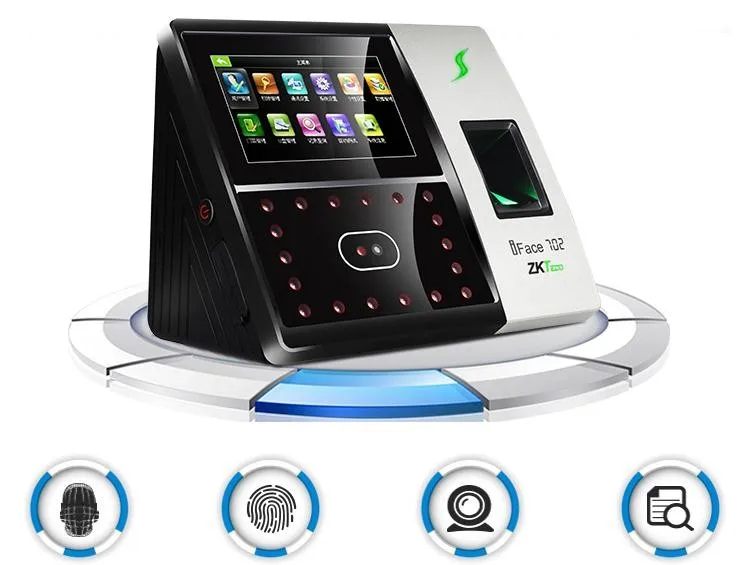

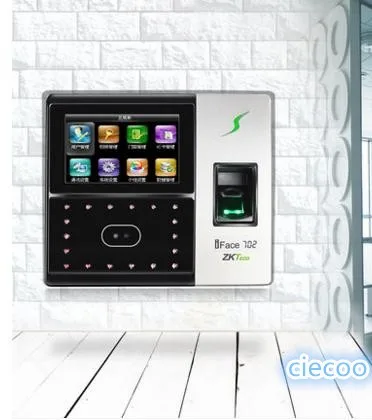

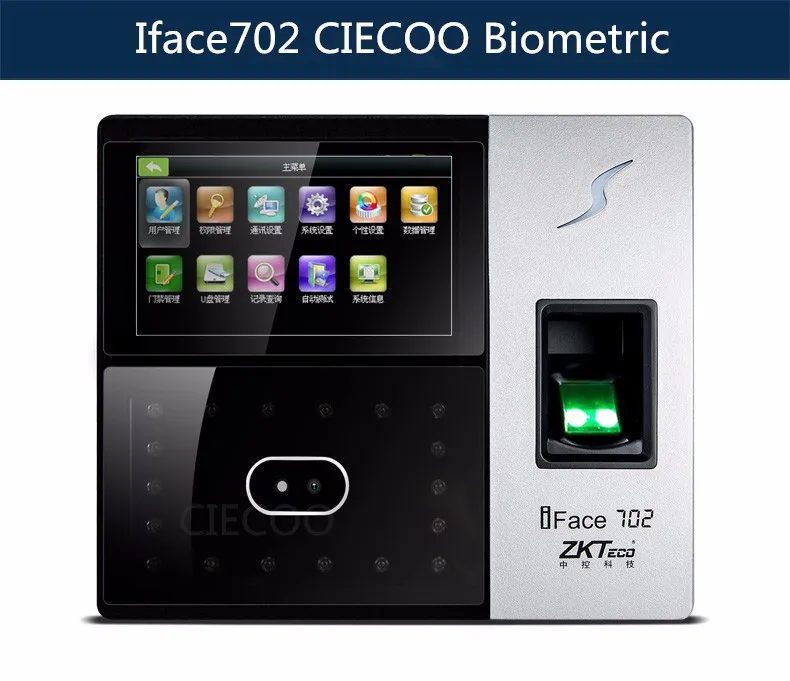

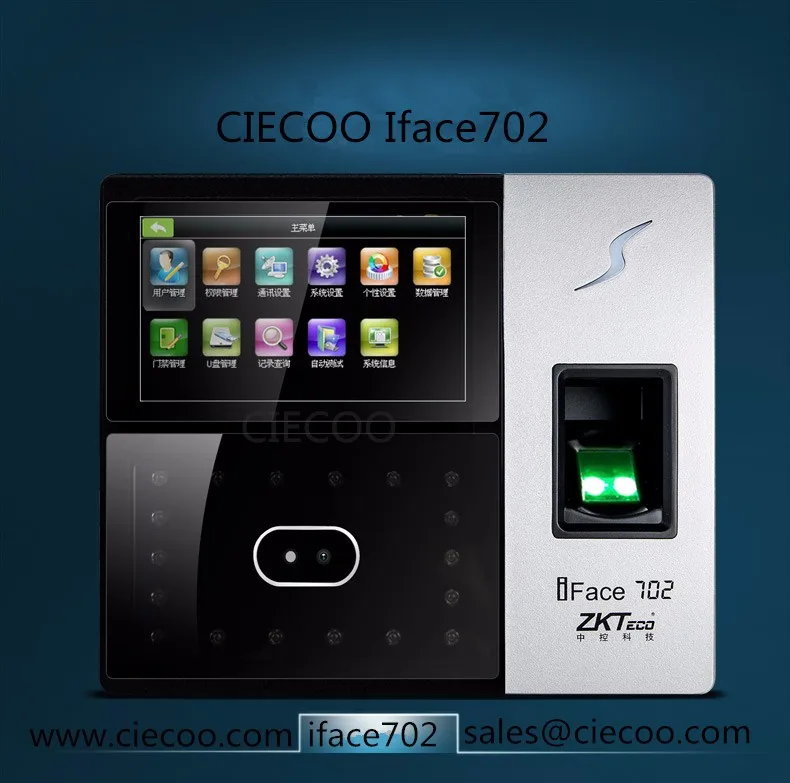

ZKTecK iFace702 Biometric Identification Time Attendance Face Reader Finger Access Attendance time Clock Software

1

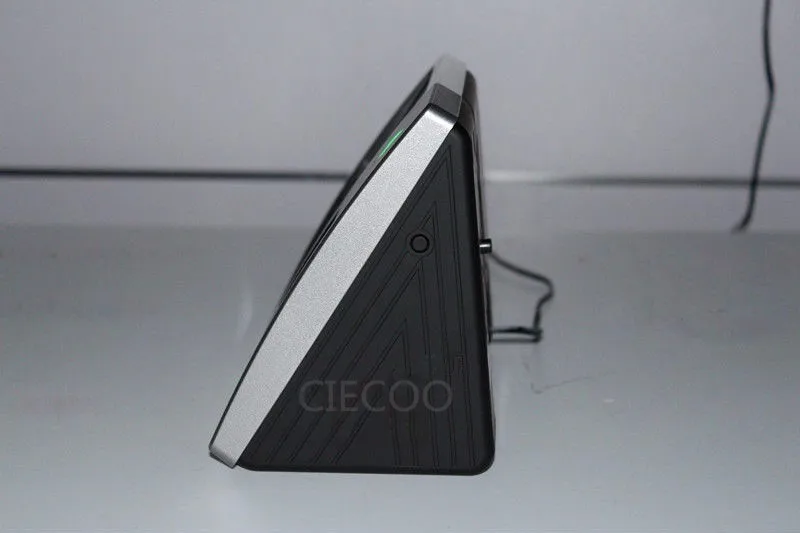

Elegant ergonomic design

2

6 user-defined function keys

3

Optional extendable scheduled-bell

4

Multi-Bio 600 high-speed processor

5

Web server management software via IE browser

6

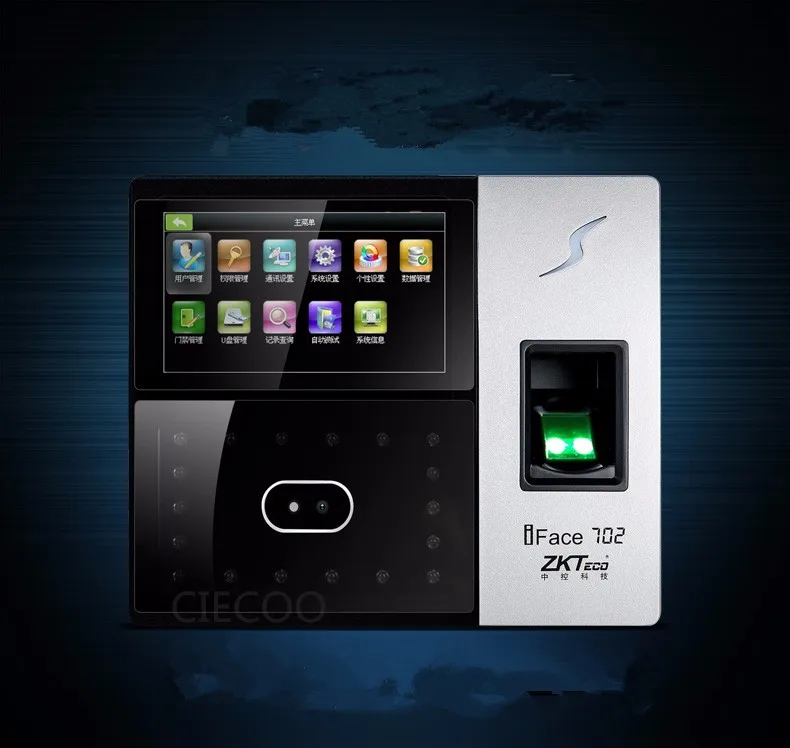

4.3 TFT touch screen is user-friendly and very intuitive

7

ZKFinger10.0 fingerprint recognition algorithm for face mix

8

ZEM600 multimedia development platform, large capacity, fast

9

Optional built-in wireless Wi-Fi or GPRS for wireless communication

10

Identification methods include Face, Fingerprint/RFID and/or Password

11

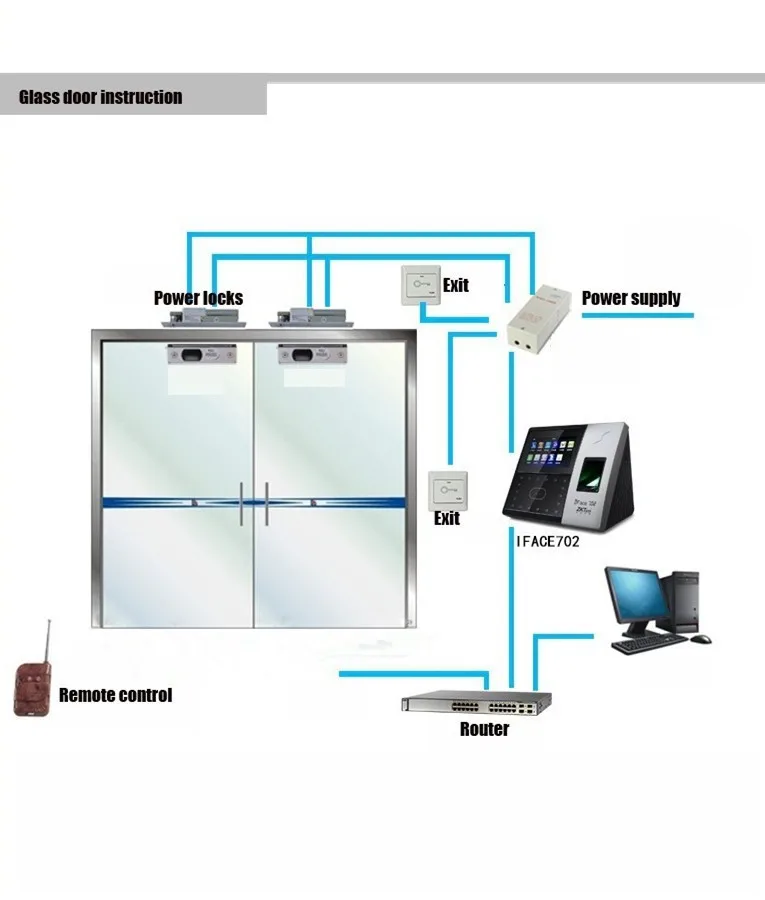

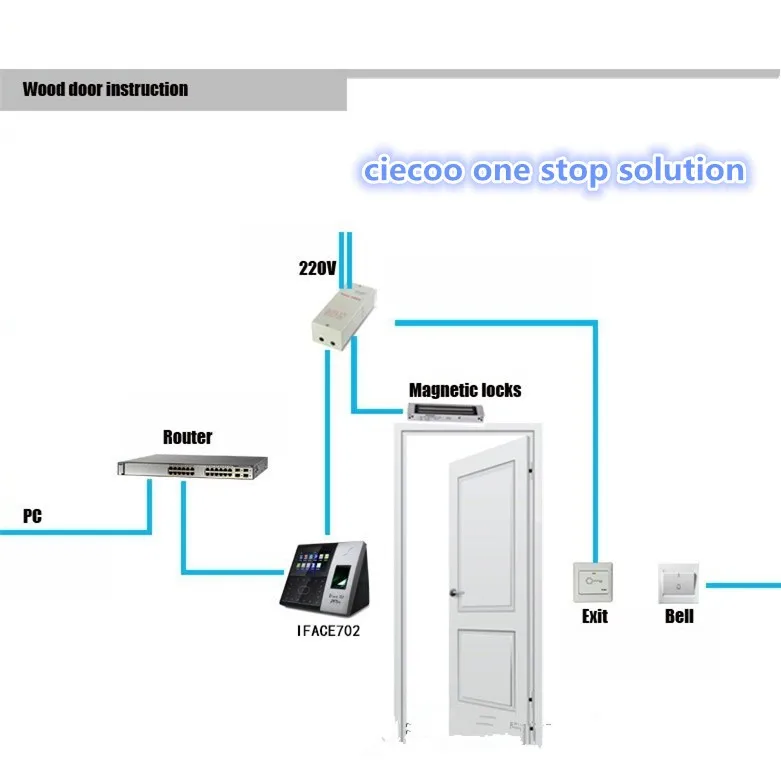

Contact relays for door access control (wires to door strike or 3rd party panel

12

Infra-red optical system enables user-identification in poorly lit environments

13

Optional built-in battery backup provides approx 4 hours continuous operation

14

Wiegand Output for connections to 3rd access control panels,As ACB001 002 004 series

15

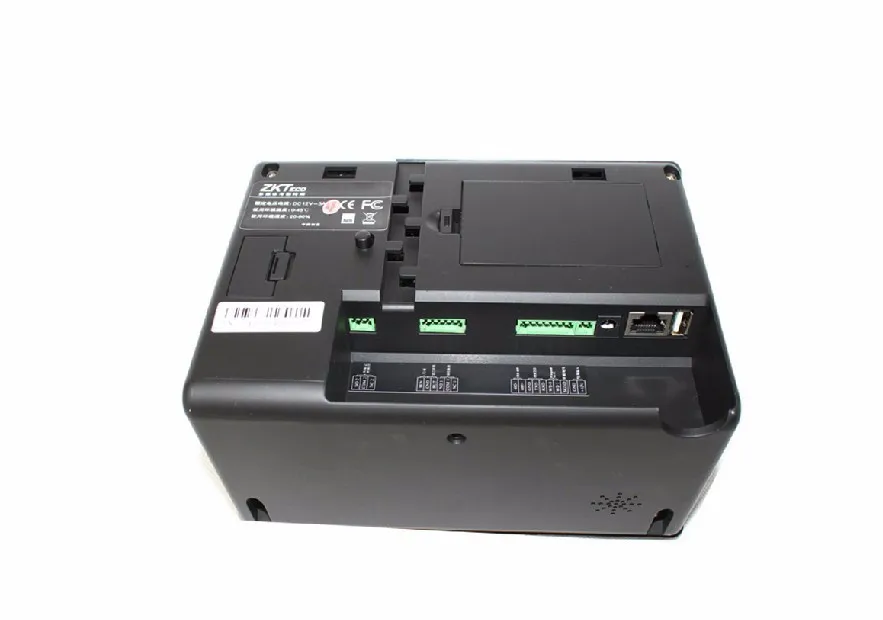

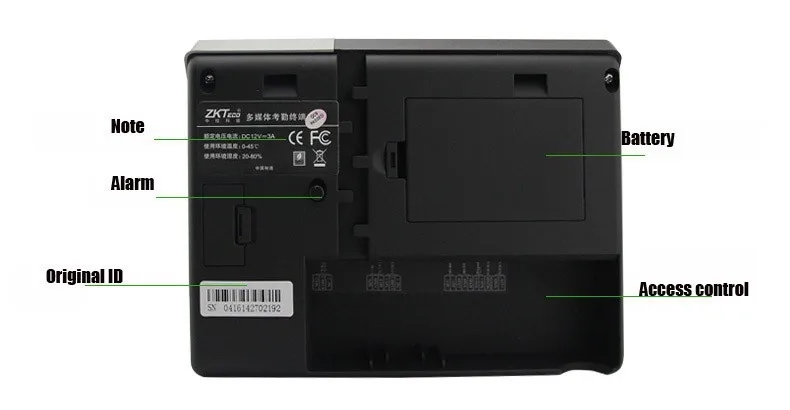

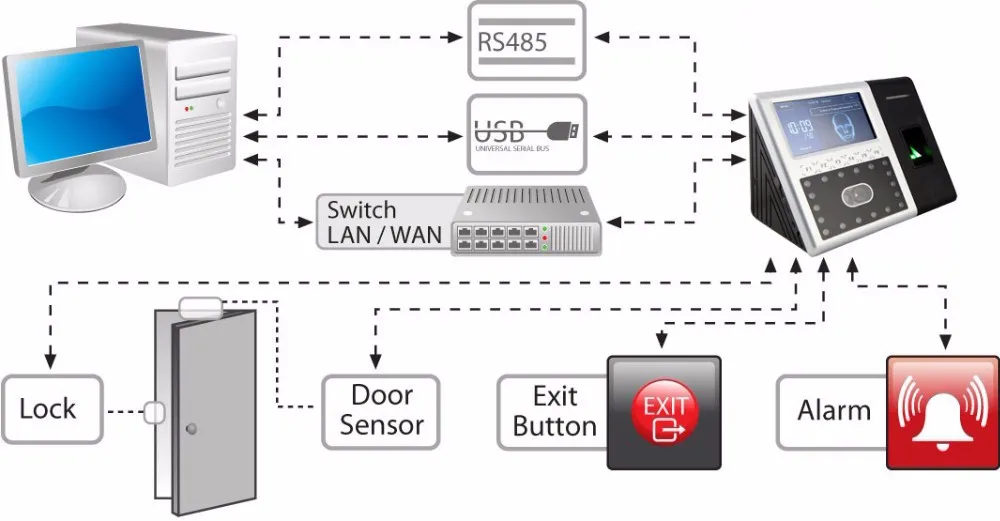

Built-in contacts for 3rd party electric lock as EL-600ST, door sensor, alarm, exit button.

1

Face capacity

400

2

Logs capacity

100,000

3

ID Card capacity

10,000

4

Wiegand Signal

Output

5

Power supply

12V3A

6

Verification Speed

≤2 sec

7

Operating temp

0°C- 45 °C

8

OperatingHumidity

20%-80%

9

Fingerprintcapacity

3000

10

CPU

ZK Multi-Bio CPU 630 MHz

11

Display

4.3’’ TFT touch screen

12

Memory

256M Flash, 64M SDRAM

13

Algorithm Version

ZK Finger 10.0

14

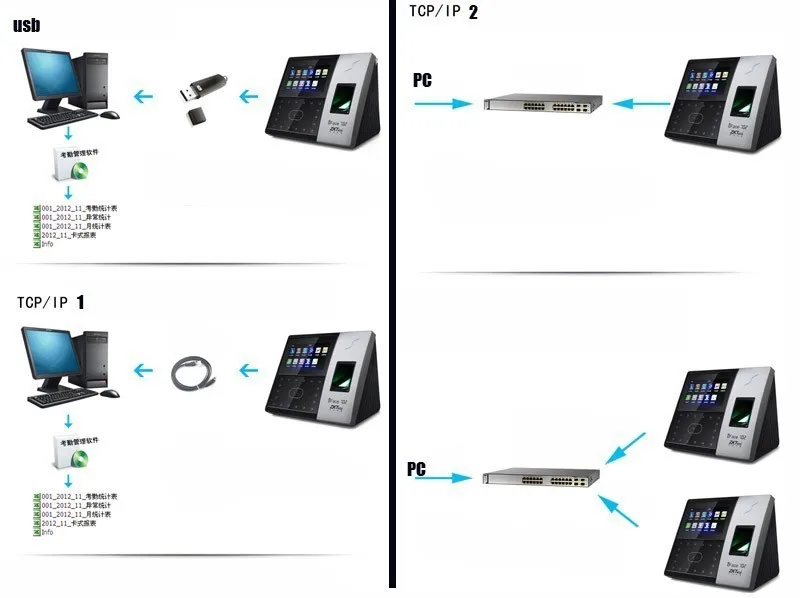

Communication

TCP/IP,RS232/485 Two USB-Host

15

Camera

High Resolution Infrared Camera

16

Optional functions

GPRS, serial printer, Mifare card

17

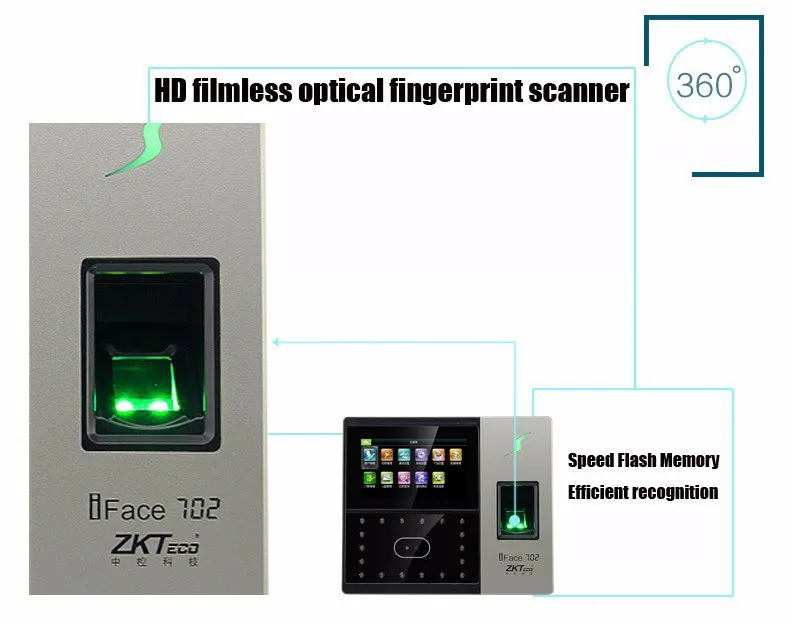

Fingerprint

Sensor ZK ,Optical Fingerprint Sensor without film

18

Hardware

Platform ZEM600 Multi-Medium Development Platform
