ZL T9 Music Decoding Player HIFI Headphone Amplifier Support USB MP3 Coaxial Optical Fiber Digital Signal Output-Black

ZL T9 Music Decoding Player HIFI Headphone Amplifier Support USB MP3 Coaxial Optical Fiber Digital Signal Output-Black

Description:
ZL T9 music player, based on ZL T5 player, added headphone function. Main chip is SP3306AL, can play the APE, FLAC ,etc. format music, the real nondestructive quality output. A digital optical signal output, digital coaxial output signal, a set of simulated RCA signal output, can be connected with a fiber optic signal, coaxial signal input audio equipment. A group of analog signal input, also can convert digital signals (optical fiber, coaxial) output. Turn can be used as an analog signal input digital signal output of the decoder used DAC, multi-usage, usb flash drive input and analog signal input can remote control switch freely.

Specification:
- Type: audio player
- Playback mode: USB
- Play format: WAV FLAC MP3
- Output: 6.3mm headphone jack, RCA, coaxial, optical fiber
- Input: USB, RCA
- The two major parameters
- Distortion: THD+N: 0.004% (RL > 10 K)
- Distortion: THD+N: 0.020% (RL = 32)
- Signal to noise ratio: dB >99
- Dynamic range: dB >99
- Voltage input DC:5V
- T9 size: 13.5*9*4 (CM)
- Color: Black

Features:
- Support lossy compression format MP3 (MPEG1/2/2.5Layer1/2/3).
- WMA (7.0/8.0/9.0 WMA) supported by lossy compression format.
- Supports lossless compression format APE 3.95 or more versions of Fast (C1000), Normsl (C2000), High (C3000).
- Support lossless compression format FLAC.
- Support WAV IMA format (ADPCM INTEL, ADPCM PCM,)
- Support CUE file player (ANSI format).
- Support 32G USB-Disk storage, format cannot be NTFS, must be the FAT32 format.
- Hardware audio processing EQ1. EQ2
- With single cycle and sequence playback function

Key instructions:
- 4 buttons, respectively, ST standby key, S sound source key switch, volume +. - key.
- Remote control buttons:
1. The AUX analog signal input keys
2. Input key USB flash drive
3. MODE of two sets of audio switch button
4. RPT single cycle and sequence switch button
5. Two sound key EQ.

Note: The following format can not be played normally
- Encoding  as "Higf Extra" APE.
- The bit rate over WAV. 4608kpbs
- DTS encoding APE/WAV.
- AAC/OGG/MPC format.
- Damaged music format

Package included:

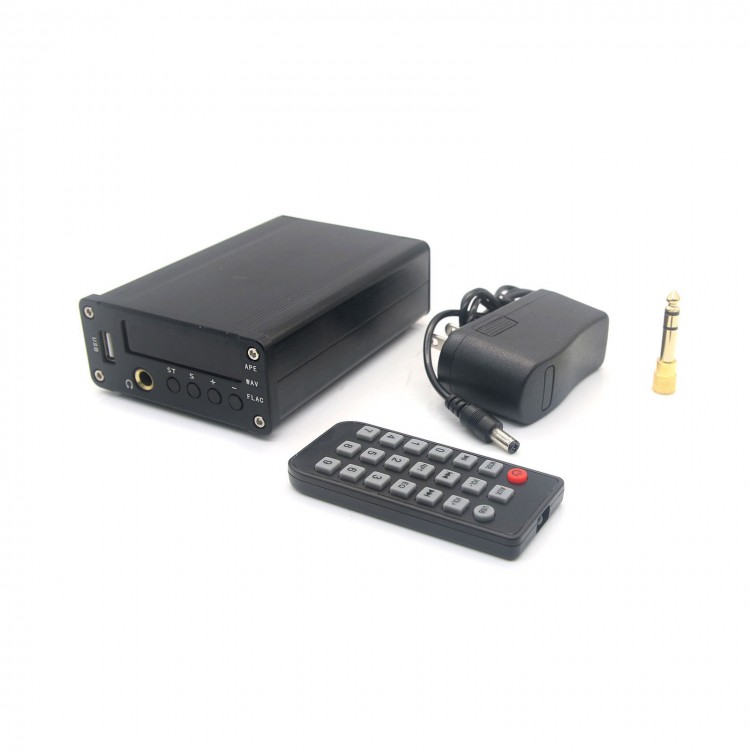

- 1 x ZL T9 lossless music decoding player
- 1 x Remote controller
- 1 x Headphone conversion plug
- 1 x Power adapter
