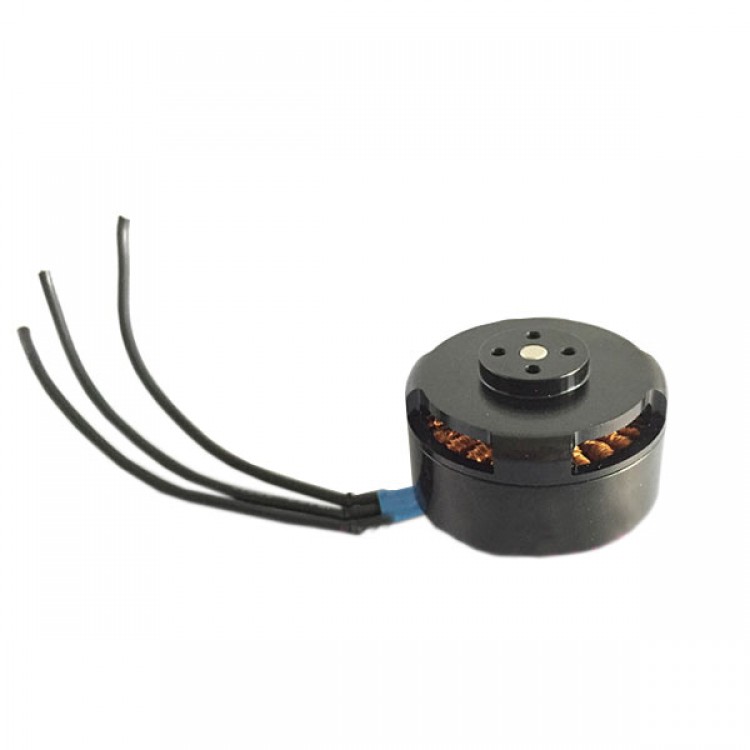

ZMR4114-400KV Customized Motor for Hexa Octacopter Multicopter 15 Inch Propeller
Description:
- With 6S battery, and 15 inch propeller, the performance is excellent, compare to same type, the endurance is improved 15%
- Stator side holes, reducing hole size, prevent dust from motor
- Imported bearing
- Kawasaki steel sheet, energy saving, high effciency
Parameters:
- Motor model: ZMR4114-400KV
- 24N/22P
- Stator dia: 41.0
- Stator thickness: 14
- Axis dia: 5
- Fixing screw hole:M3*4
- Screw pitch: 25*25
- External dia: 46.3
- Height: 29.3
- Weight: 160g
Performance:
- Unloaded current: 11.1V/1.5A
- Battery section: 4-8S
- Max current (240S): 35A
- Max power: 1000W
- Max efficiency: 92%
- Resistor: 60mΩ
