ZWO EAFN Basic Version Electronic Automatic Focuser 5KG High Load Capacity with Hand Controller Temperature Sensor

ZWO EAFN Basic Version Electronic Automatic Focuser 5KG High Load Capacity with Hand Controller Temperature Sensor

Description:
- The new generation of ZWO EAF continues the brand’s signature minimalist design, featuring a robust metal housing and precise angular lines - a perfect fusion of form and function.

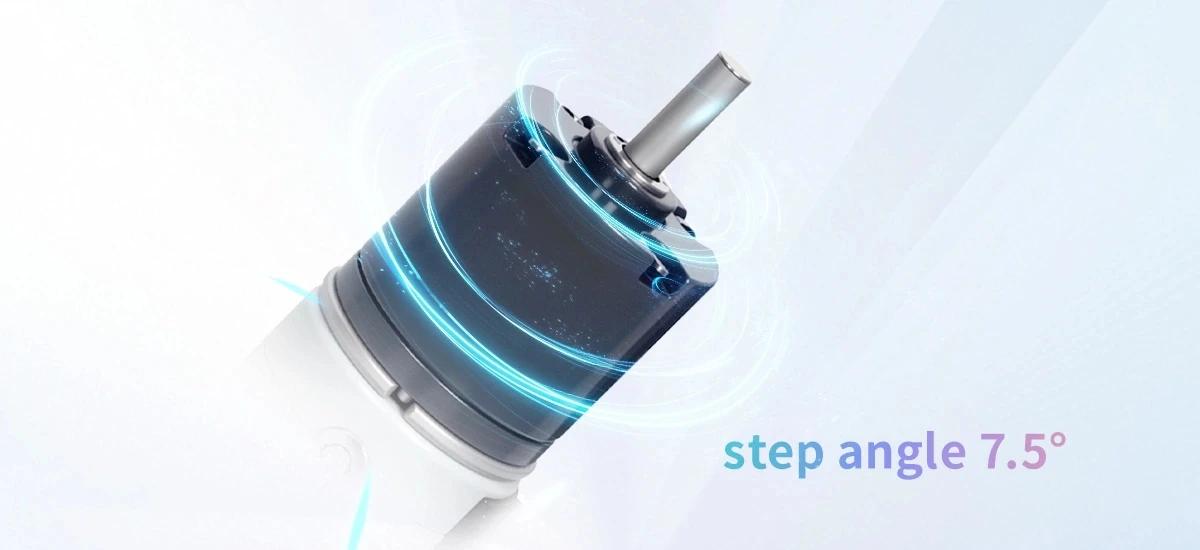

Micron-level Positioning Accuracy:
- The ZWO EAF integrates a high-precision custom stepper motor with compact yet powerful performance. Featuring a 1:128 reduction ratio, it provides the motor with strong torque and precise control capabilities, achieving micron-level positioning accuracy. Each rotation responds precisely to commands, ensuring accurate and reliable focusing.

5kg (11.02lbs) High Load Capacity:
- Astronomical observation equipment often requires the use of various heavy components. The ZWO EAF, despite its compact size, can support a high load capacity of up to 5kg (11.02lbs), as rigorously tested in ZWO Laboratory. Its powerful performance ensures stable operation of a wide range of equipment, meeting diverse observation needs.

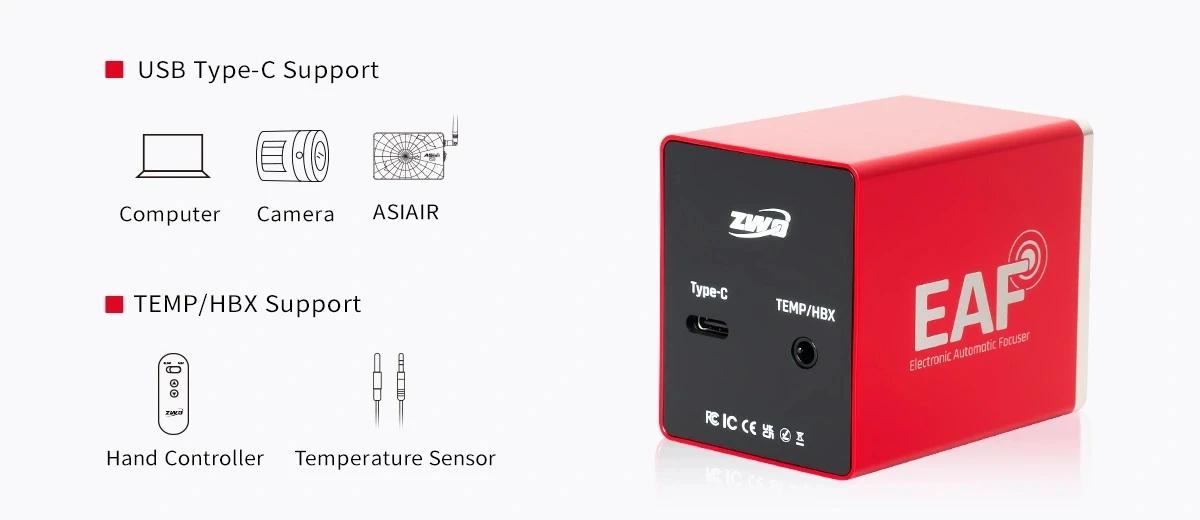

More Universal Type-C Interface:
- The EAF is an upgrade from the previous version, with its interface upgraded from Type-B to the more universal Type-C. Users can power the EAF directly via a Type-C connection to a camera, computer, or ASIAIR, it also supports wired communication via a Type-C interface. Simplifying cable management and reducing power load.

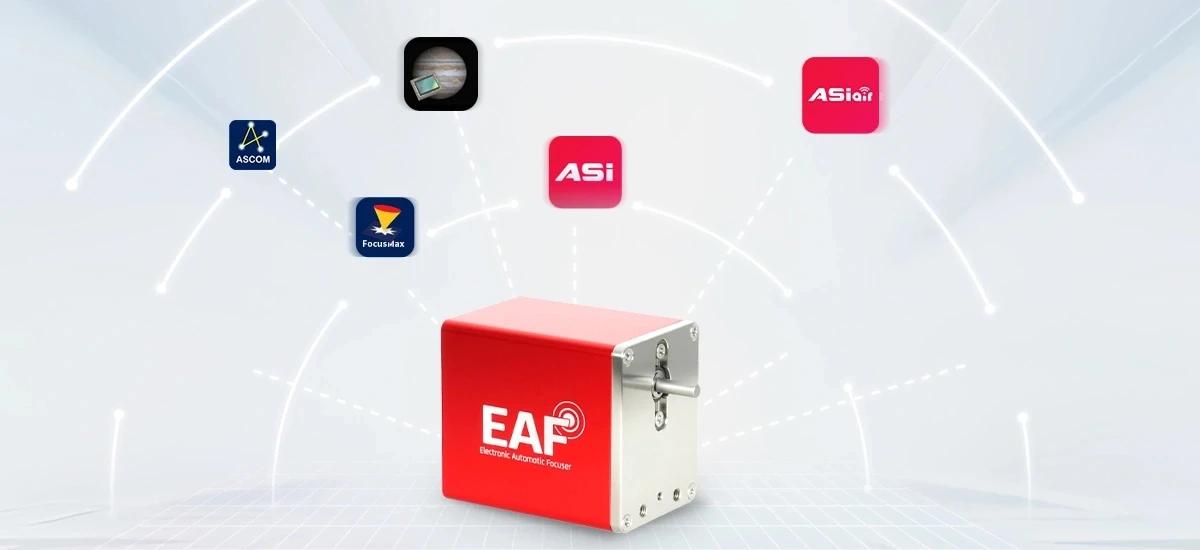

Extensive Software Support:
- EAF supports for ASCOM and INDI protocols, making it compatible with a wide range of astrophotography software, including:
  ZWO-developed platforms: for ASIStudio and ASIAIR APP.
  Third-party software: for SharpCap, FireCapture, Maxim DL, The SkyX, SGP, Nebulosity, and more. Also compatible with third-party focusing software such as FocusMax.

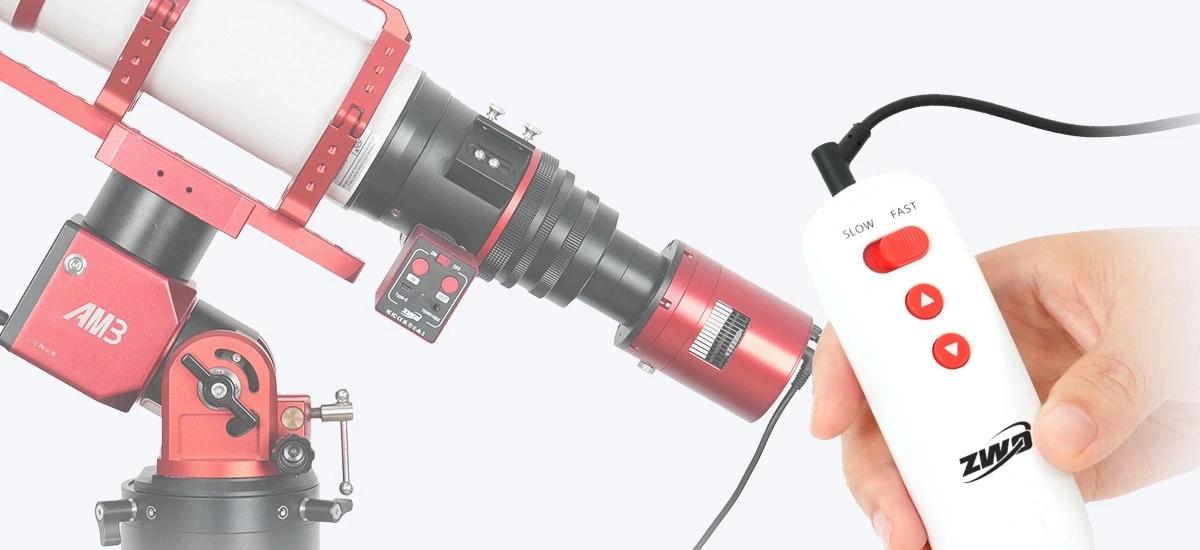

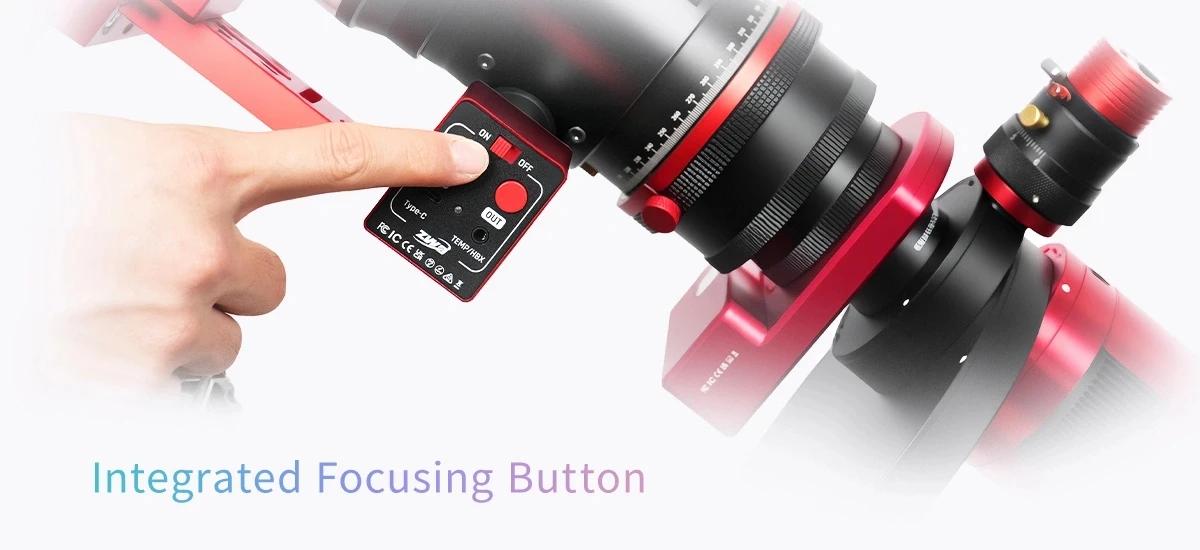

Support handle controller and manual focusing:
- The EAF hand controller is made of high-quality, eco-friendly ABS material to ensure a comfortable grip. The hand controller provides an easy method of focusing the telescope, featuring IN and OUT buttons, allowing for smooth manual focusing without relying on a computer or smartphone. This design also minimizes subtle vibrations during operation, helping to maintain precise focus. A “must-have” option for EAF users!

Connection:

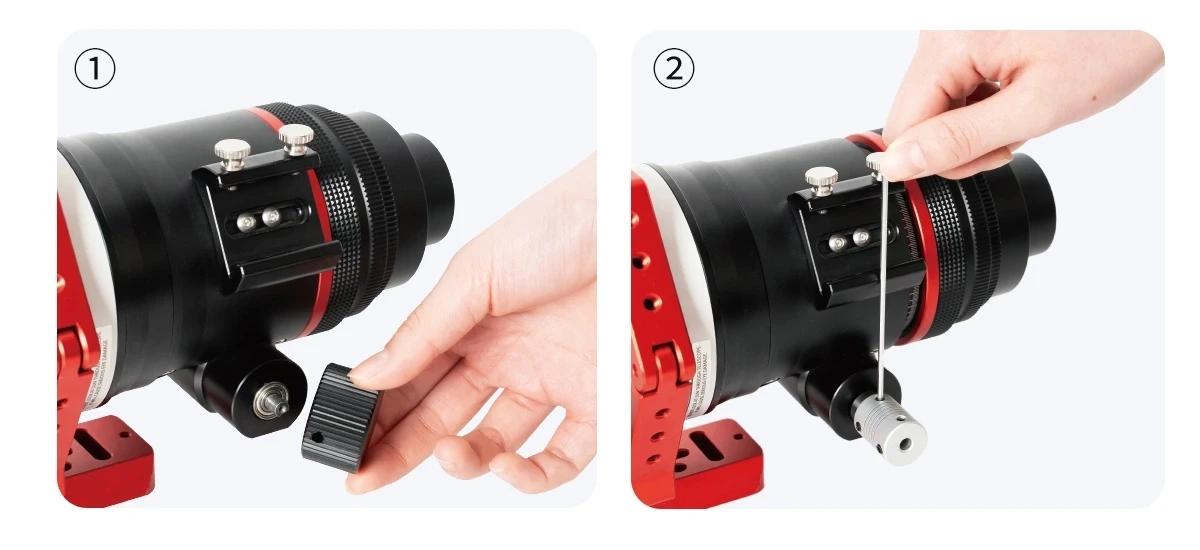

1. Remove the coarse adjustment knob of the telescope focuser using a suitable sized wrench.
2. Install the coupling on the telescope focuser shaft and tighten the locking screw with the 2mm hex wrench.

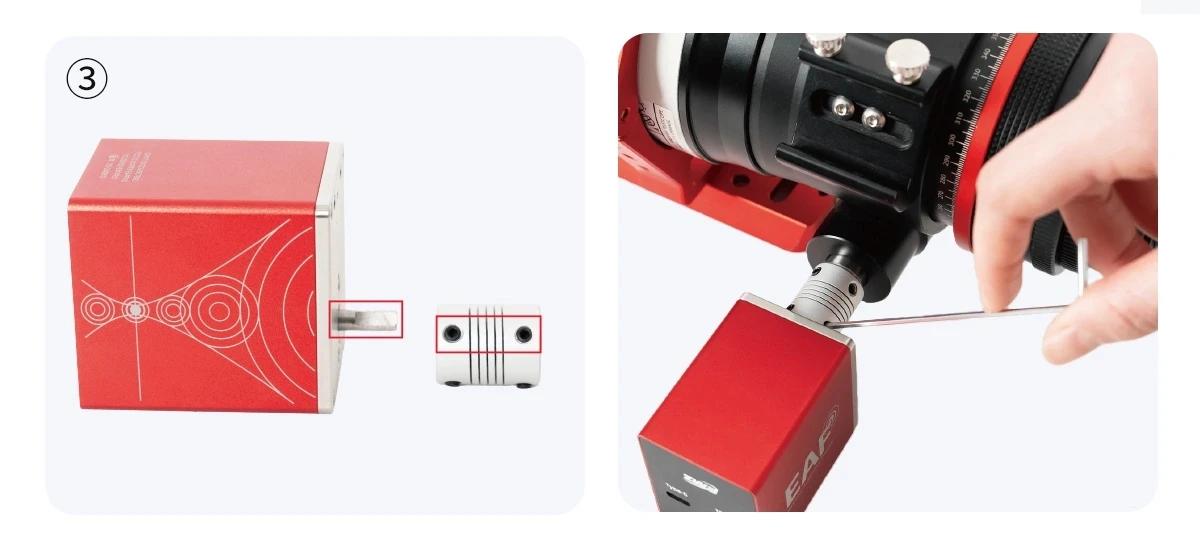

3. Attach the focuser body to the coupling, align the EAF motor shaft flat surface with the locking screw, and tighten the locking screw using the provided 2mm hex wrench.

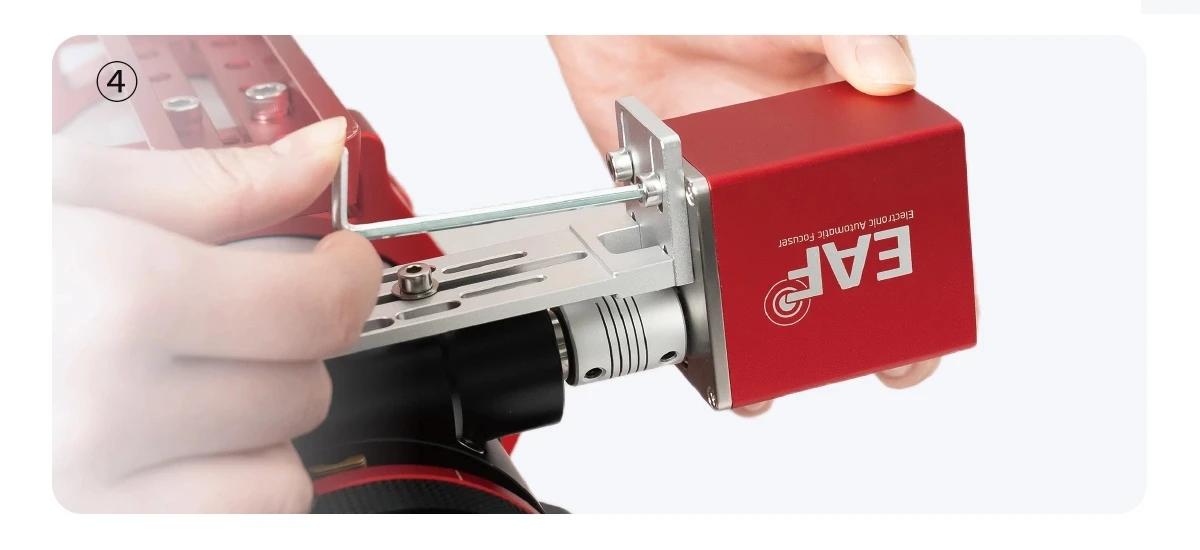

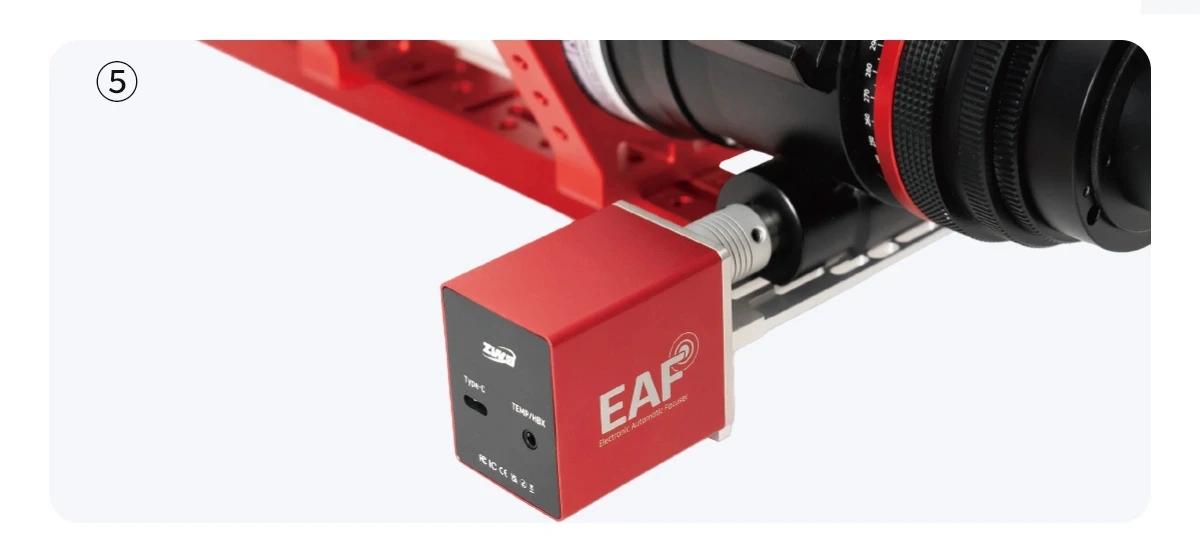

4. Secure the EAF body to the bracket and the bracket to the matching mounting holes in the focuser assembly using the supplied M4 screws. Ensure that the bracket is flush with the EAF mounting surface without any gaps, and that it is parallel to the focuser body surface.

5. Check and ensure that all the connections of the EAF are secure. This completes the hardware installation of the EAF.

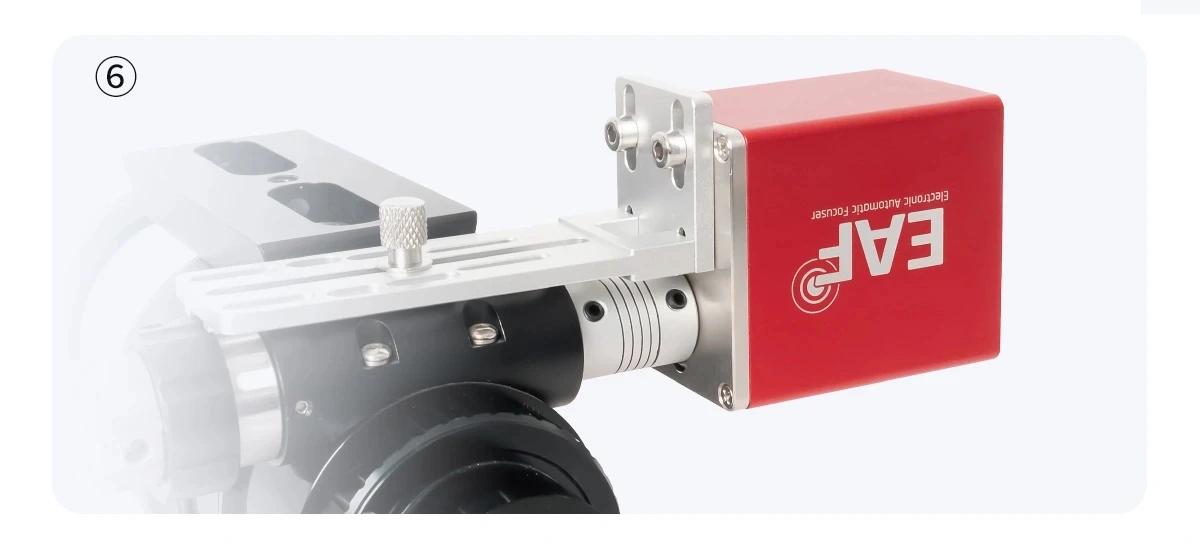

6. For curved focusers like the one in the image above, you only need to use wodethe original locking screws and 3 washers to secure the EAF. There is a groove at the bottom of the EAF bracket, and a single screw provides sufficient stability.

For users of Takahashi, C8, and C11 telescopes:
- The new EAF and EAF Pro is not fully compatible with the 5mm flexible coupling. We strongly recommend using the 4mm flexible coupling for proper installation.

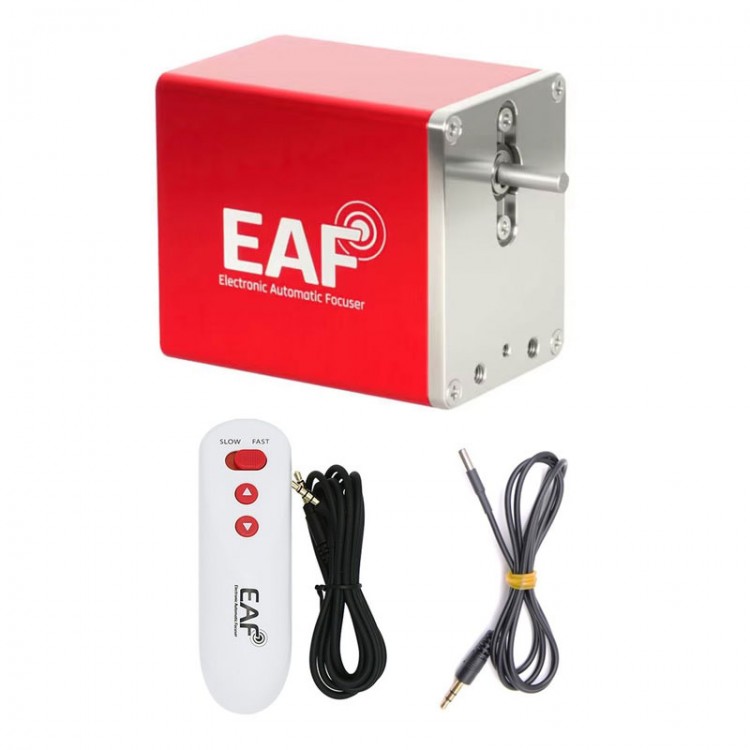

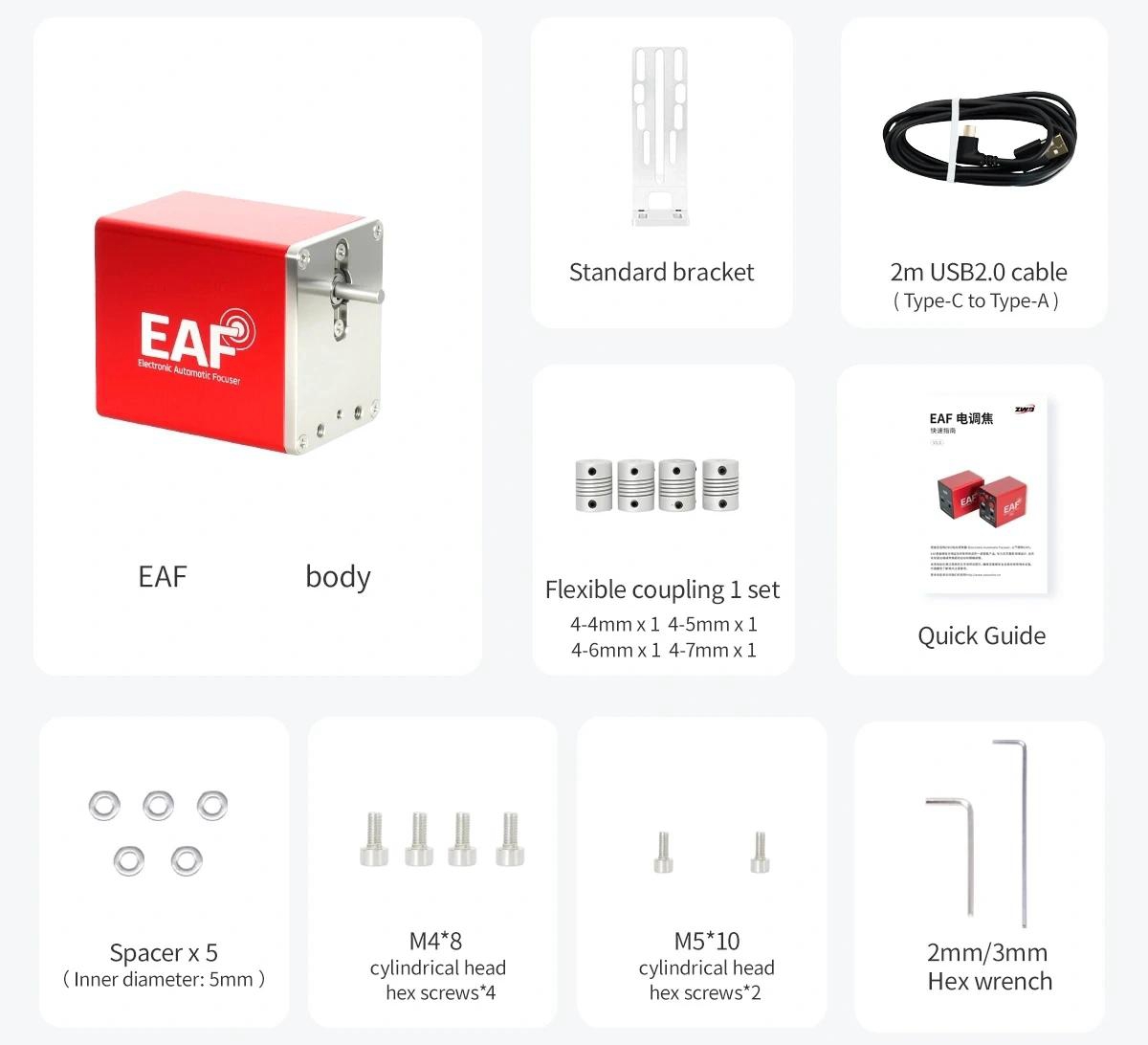

Package Included:
- 1 x Set of EAF
- 1 x Hand Controller Temperature Sensor
