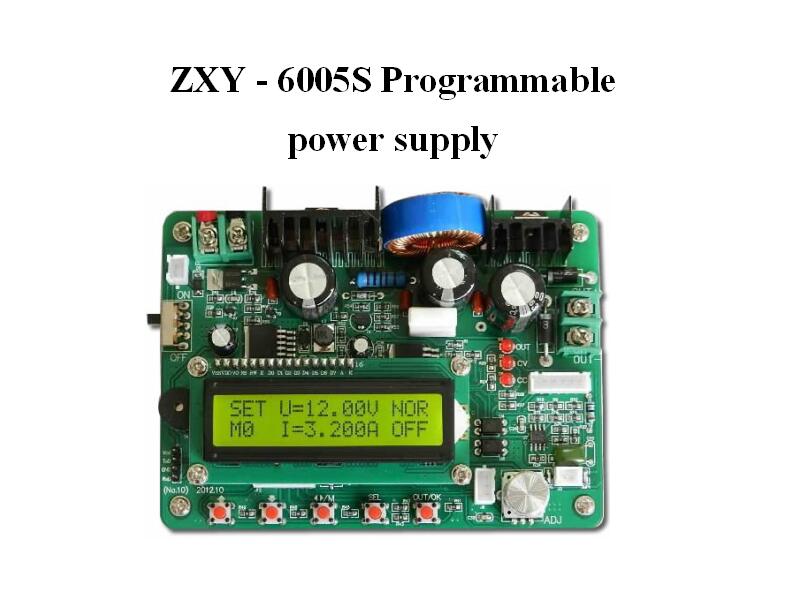

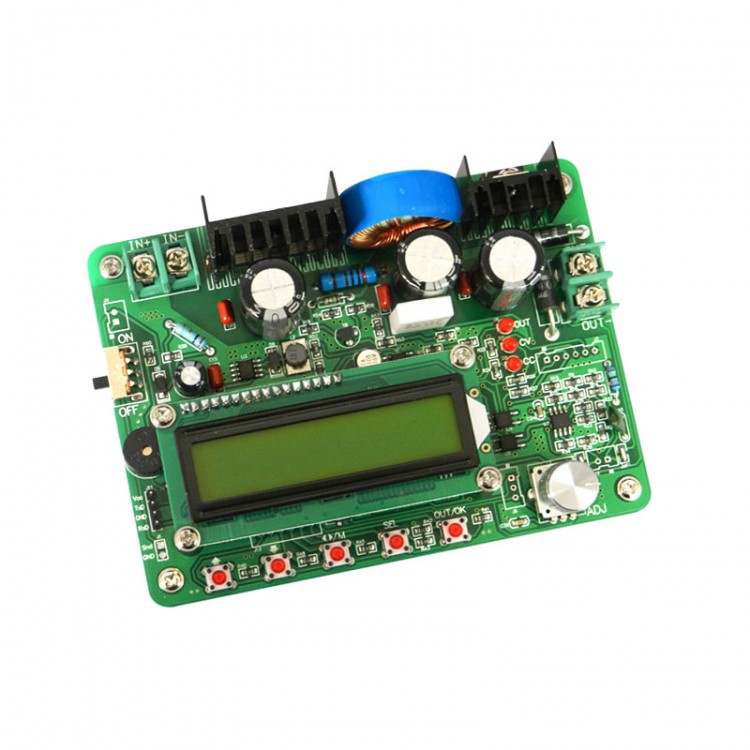

ZXY-6005S Programmable Switch Power Supply Single Output 60V 5A 300W DC-DC Modularization

ZXY-6005S Programmable Switch Power Supply Single Output 60V 5A 300W DC-DC Modularization

Brief introduction:
ZXY-6005S is single output programmable switch power supply. Its specification is 60V, 5A, 300W. It designed by DC-DC modularization ,has a small size and a high output power. Besides, it has equipped with TTL serial interface, provide a serial communication protocol, allows user to secondary development, we can according to your design and test requirements to provide versatile solutions.

Main special features and advantages:
- Based on BUCK structure of switch power supply technology, the work frequency reach up to150KHZ
- DC input voltage range:13V~ 62V,which is suitable for multiple kinds of pre-stage input power supplies

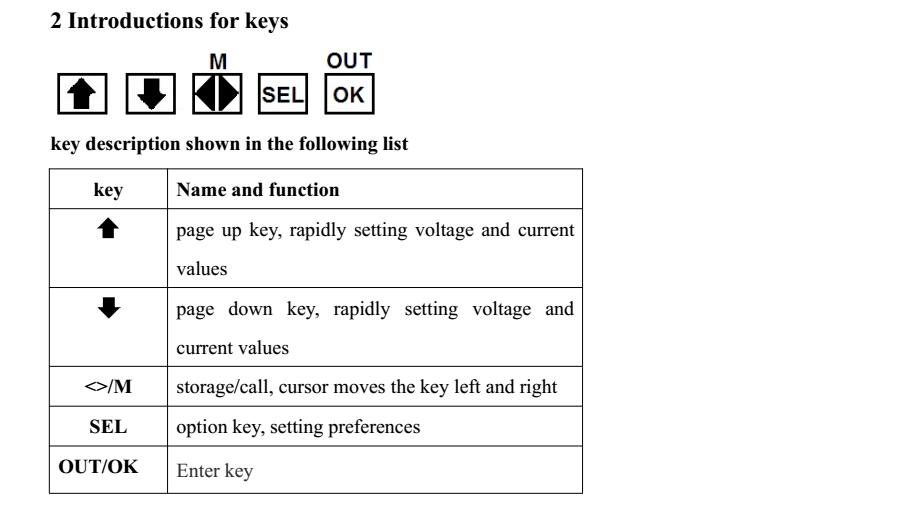

- Operation key and multi-function encoder combine for the operation, it is convenient and easy to use
- High accuracy and high resolution:10 mV / 10 mA
- Low ripple and low noise
- Indicator light:constant current( CC) ,constant voltage (CV) and output state (ON)
- LCD1602 display
- Adjust voltage and current by adjustment knob and keys
- Support measuring and displaying output voltage,output current, output power, output electric quantity (AH) and working time
- Intelligent temperature detection,can connect an external DC12V fan,and control its speed in level
- The minimum voltage difference 2V can still work steadily
- With output turn off function key ,flexible turn on or off output
- 10 groups of parameter settings of M0-M9, which can be conveniently called out at any moment
- Prompt for operation or alarm function of onboard buzzer
- Convenient and simple three-phase charge intelligent control function of storage battery
- With TTL serial communication, and improved communication protocol so as to be convenient for centralized control

Dimension:130mm(length)*95mm（wide）*37mm（high）

Technical Specifications:
- This chapter introduces the rated voltage, rated current, rated power and other main technical parameters of ZXY-6005S, and the use storage environment and temperature of ZXY-6005S.

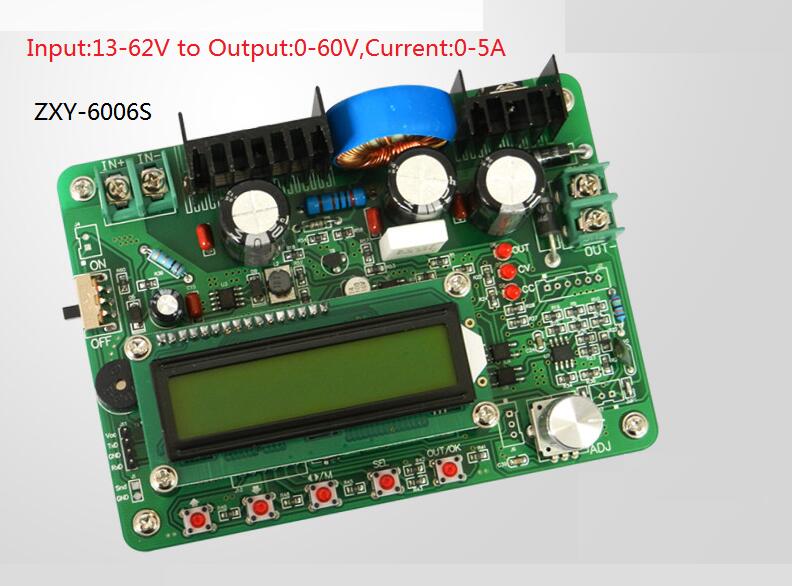

- Input Voltage:13V～62V
Output Voltage:0～60V
Output Current:0～5A
Output power:0～300W
Setup resolution of output voltage:10mV
Setup resolution of output current:10mA
Source regulation:CV is less than 0.5% + 10 mV CC is less than 1% + 5 mA
Load regulation:CV is less than 0.5% + 10 mV CC is less than 1% + 5 mA
Output ripple:< 50mVpp (Input 54 V, 12 V output, current 3A)
Volatility transmission ratio of 100 Hz:< 1/10000
Typical Efficiency:Input 54 V, 36 V, output current 3 A
The display precision of  Voltage Current:10mV,10mA
Display error of Voltage:±1%+50mV
Display error of Current:±2%+20mA
Response time:< 50ms
Memory operation:10 groups of parameter storage of M0-M9
Protection type:OVP,OCP,OPP,OAH,OFT
Heat-dissipating method:heat dissipater and fan (optional)
Operating ambient temperature:0～40℃
Storage ambient temperature:-20～70℃
Use ambient:For indoor use , maximum humidity of 80%

Safety information:Please don’t install replaceable parts in the instrument by yourself, please send it to us to repair , to ensure its security features.

Package List:
- 1 x ZXY-6005S Host
