32MHz CC2430-F128 ZigBee Wireless Module +SMA Antenna 8051 128KB+8KB ADC MCU
  • 32MHz CC2430-F128 ZigBee Wireless Module +SMA Antenna 8051 128KB+8KB ADC MCU
  • 32MHz CC2430-F128 ZigBee Wireless Module +SMA Antenna 8051 128KB+8KB ADC MCU

  • SKU:22719
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 3
  • Price:$25.38
  • Price in reward points: 254
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $24.87 $24.36 $23.60 $22.59 Contact US

32MHz CC2430-F128 ZigBee Wireless Module +SMA Antenna 8051 128KB+8KB ADC MCU
Descriptions:

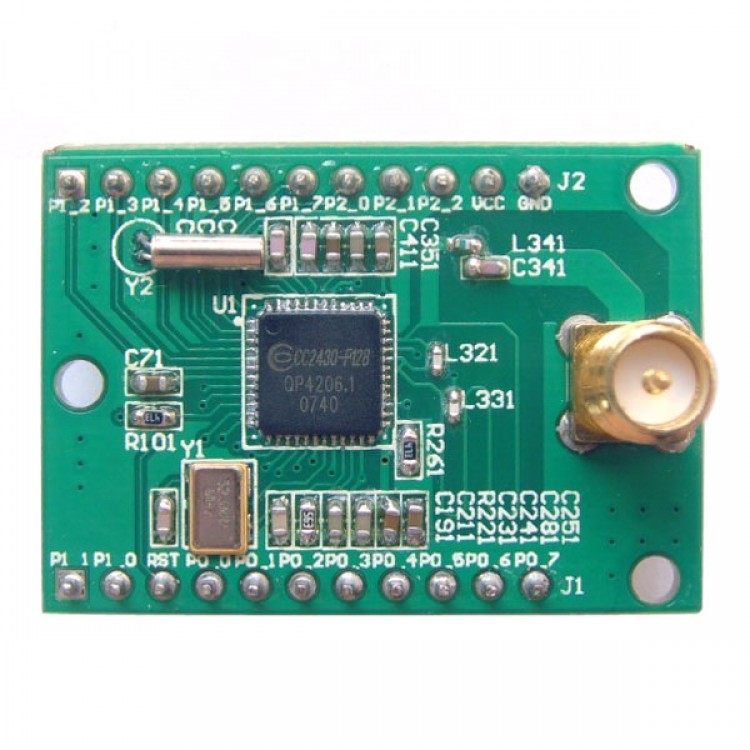

- ZigBee core chip: CC2430-F128, which integrates Zigbee radio frequency (RF) front-end, memory and microcontroller on a single chip , CC2430-F128 chip meets Zigbee technology of  2.4 GHz RF system for  Zigbee or similar wireless network nodes, , including tuners, routers and terminal equipment. It uses an 8-bit MCU (8051), with 128 KB of programmable flash memory and 8 KB RAM, also includes analog-digital converter (ADC), several timers (Timer), AES128 coprocessor, the watchdog timer device (Watchdog Timer), 32kHz crystal sleep mode timer, power-on reset circuit (Power On Reset), brown-out detection circuit (Brown Out Detection) and 21 programmable I / O pins.
Specfications:
- chipset: CC2430-F128
- 2.0 V-3.6V power supply by pins
- on-board gold-plated SMA connector
- on-board 32MHz crystal and 32.768KHz SMD crystal
- lead out all the I/O pin for easy external expansion and use
- advanced Carrier Sense technology to effectively prevent network conflicts
- the standard configuration provides 16 channels to meet the multiple communication combination mode
- PCB board size: 36 (mm) x25 (mm)
- Applications: Wireless sensor networks, home automation, industrial control, PC peripherals, consumer electronics and other fields

 Package :
- one piece of  CC2430-F128 ZigBee Wireless Module
- one piece of  SMA Antenna
