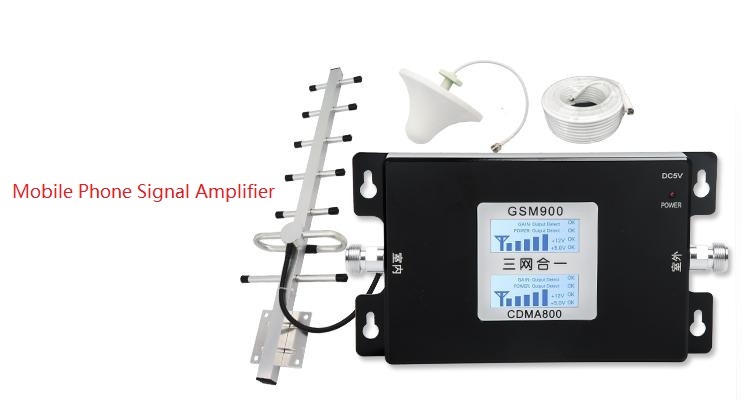

BL-17C/G Mobile Phone Signal Booster Repeater Amplifier CDMA GSM Three Network Integration

BL-17C/G Mobile Phone Signal Booster Repeater Amplifier CDMA GSM Three Network Integration

Product Description:

- DC port,SVIA power cable connecting port,little loss
- Outdoor port connects outdoors periodic antenna,N-K signal connecting
- Low radiation design,aluminium alloy body
- Color:blue/gray (send by random)

Specification:
- Name: BL-17C/G Mobile Phone Signal Amplifier
- Mode: CDMA/GSM
- Covering area:300 square meters
- Working frequency:GSM850:uplink:825-835MHz  895-925MHz
- CDMA900:downlink:870-880MHz   898-935MHz
- Dimension:140x10x20mm
- Working voltage:5V,1A
- Power:17Dbm
- Gain:uplink:>=70,downlink:>=75
- Noise index:<=5db
- SWR:<=1.5 (V.S.W.R)
- Device Delay: 1MS
- Stray radiation:<=-36dbm

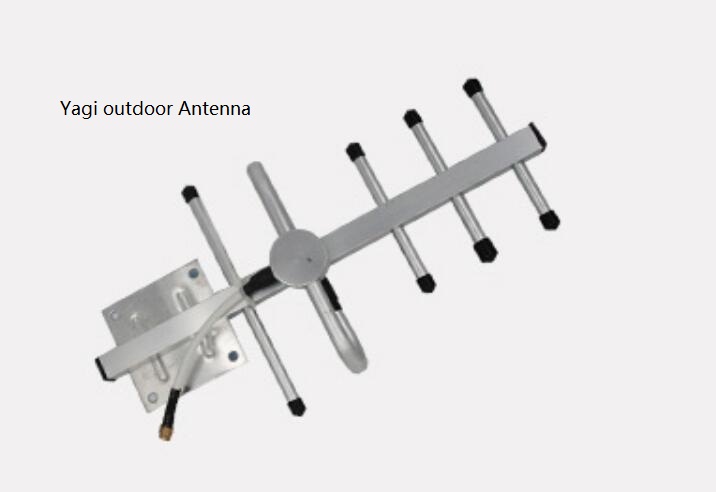

Yagi outdoor Antenna parameter:
- Frequency:806-960MHz
- Gain:9db
- SWR:<=1.5
- Interface:SMA copper
- Impedance:50ohm
- Polarization mode:vertical
- Power capacity:100W

Indoor sucker antenna specification:
- Frequency:806-960MHz/1710-2500MHz
- Gain:2-5DB
- SWR:<=1.5
- Impedance:50ohm
- Polarization mode:vertical
- Power capacity:100W
- Interface:SMA copper

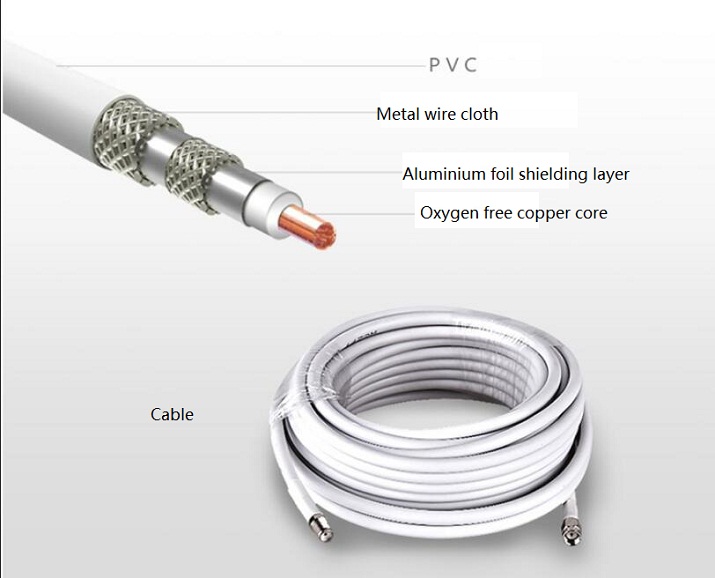

75-5 Signal amplifier cable parameter:
- 75-5 RF signal cable
- Flame retardant ectosome
- High steel shielding net
- Hard insulation layer, strong anti deformation ability,guaranteeing the transmission quality
- Pure copper core cable

Install:
1.Install the outdoor antenna signal stability.
2.The host end connected to the outside antenna outline.
3.The feeder at the other end connected to the host interface.
4.The feeder side connected with patch antenna interface.

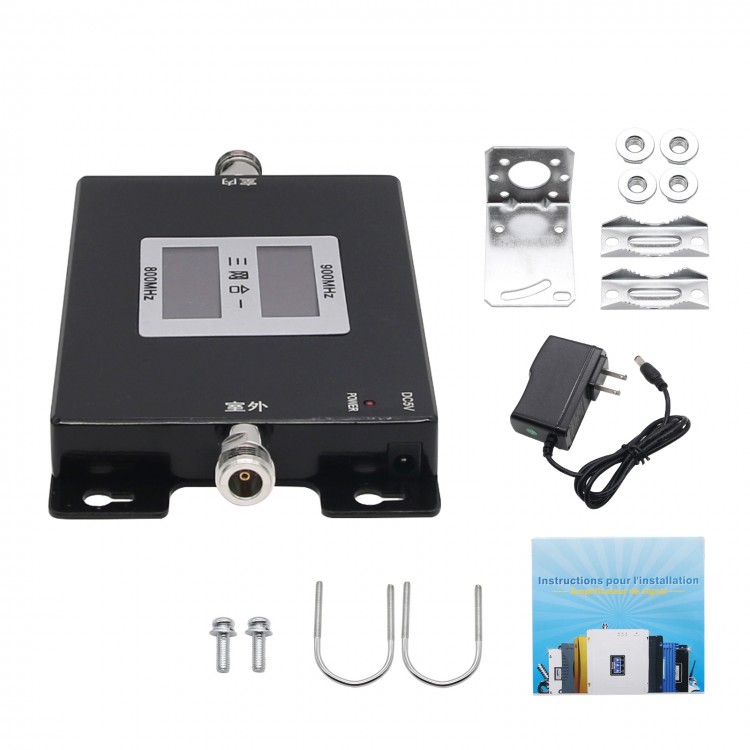

Package List:
- 1 x Main unit
- 1 x Mushroom Antenna
- 1 x Outdoor Antenna
- 1 x 15m Cable
- 1 x Power adapter
