Sunhans Signal Booster 1800MHz-2600MHz 4G Repeater Mobile Phone Signal Repeater Amplifier SH-D18L26-D2

Sunhans Signal Booster 1800MHz-2600MHz 4G Repeater Mobile Phone Signal Repeater Amplifier SH-D18L26-D2

1800MHz
- Up Link Frequency: 1710 - 1785MHz
- Down Link Frequency: 1805 - 1880MHz

2600MHz
- Up Link Frequency: 2500 - 2570MHz
- Down Link Frequency: 2620 - 2690MHz

Specifications:
 - Model:  SH-D18L26-D2
- Power:-70~-40 dBm
- Up Link Gain: 62dB
- Down Link Gain: 65dB
- Max Output Power: +17 dBm for up link/+17 dBm for Downlink
- Impedance: 50Ohm
- Isolation: 70dB
- Power Supply:AC 100/240V (used AC/DC Adapter 5Vdc 2A)
- Compact Design: Indoor Use
- Item Dimension: 168 x 115 x 21 mm
- Certification: CE FCC RoHs

Indoor antenna parameters
Feature:
- Exquisite appearance
- Good impact resistance,waterproofing and anticorrosion ability
- Full day working
- Optimized dimension
- High gain,low standingWave,strong anti-interference ability

Application:
- GSM/CDMA/PCS/3G/4G/WLAN system

Specification:
- Frequency Range: 800~2700MHz
- VSWR:≤2.5
- Gain:8dBi
- Polarization Type:Vertical
- Radiation:Omni
- Maximum Input Power:10W
- Input Impedance:50 Ohms
- Connector Type:N male
- Cable Type: RG174(best)100% cooper
- Cable Length:1m
- Dimensions:17x8.3x5cm
- Weight: 119g

Outdoor antenna parameters
Feature:
- Exquisite appearance
- Good impact resistance,waterproofing and anticorrosion ability
- Full day working
- Optimized dimension
- High gain,low standingWave,strong anti-interference ability

Application:
GSM/CDMA/PCS/3G/4G/WLAN system

Specification:
- Frequency Range:800~2700MHz
- VSWR:≤2.5
- Gain:12dBi
- Polarization Type:Vertical
- Radiation:Omni
- Maximum Input Power:10W
- Input Impedance:50 Ohms
- Connector Type: RP-SMA male/ SMA male
- Cable Type: RG174(best) 100% cooper
- Cable Length: 30cm
- Dimensions: 17 x 10 x 5 cm
- Weight: 135.6 g

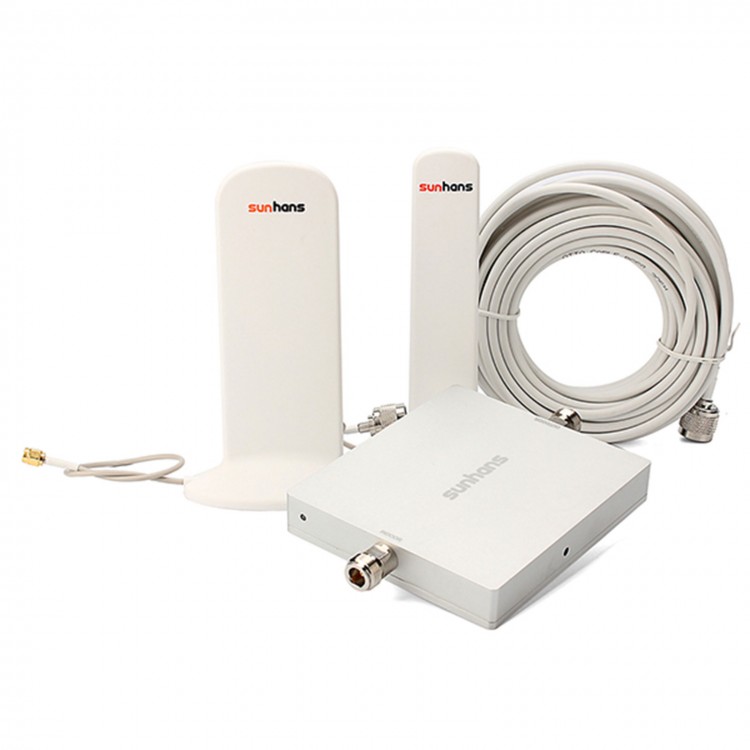

Package contents:
- 1 x SH-D18L26-D2
- 1 x Coaxial cable (10m)
- 1 x Indoor antenna
- 1 x Outdoor antenna
- 1 x Power supply
- 1 x User manual
