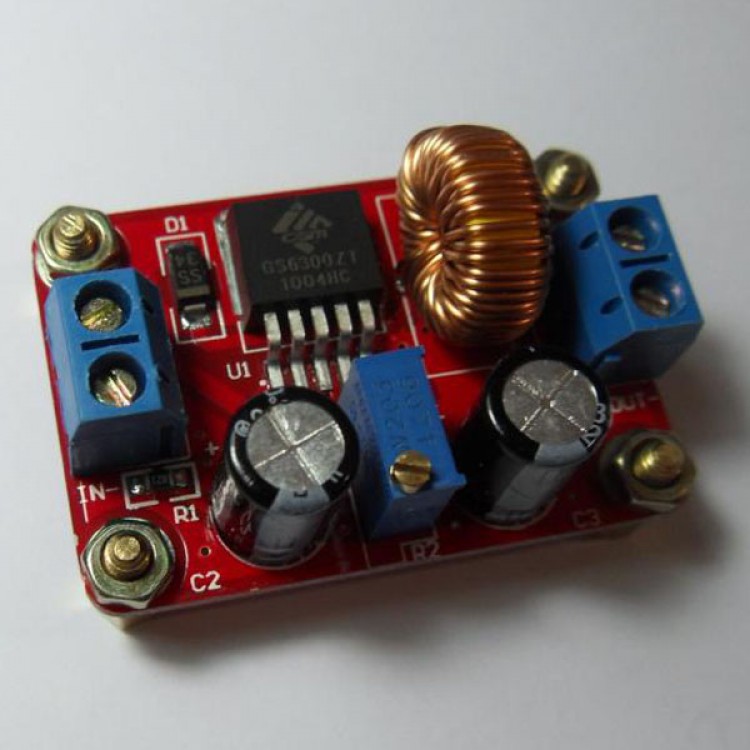

DC-DC Step Down Adjustable Power Supply Module Battery Charger Module LED Driver
  • DC-DC Step Down Adjustable Power Supply Module Battery Charger Module LED Driver
  • DC-DC Step Down Adjustable Power Supply Module Battery Charger Module LED Driver

  • SKU:23418
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 1
  • Price:$8.48
  • Price in reward points: 85
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $8.31 $8.14 $7.89 $7.55 Contact US

DC-DC Step Down Adjustable Power Supply Module Battery Charger Module LED Driver
Specfication:
- Input voltage: DC 4.5-35V.
- Output Voltage: DC 1.25-30V (adjustable)
- Output current: rated current 2A, maximum 3A (need to add heat sink),
if the output power greater than 15W, Recommanded combined heat sink.
Output ripple:
- Input 12V Output 5V 3A 60mV (MAX)
- Input 24V Output 12V 3A 120mV (MAX)
Feature:
- Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency)
- Switching Frequency: 150KHz
- Rectifier: Non-Synchronous Rectification
- Module Properties: Non-isolated step-down module (buck)
- Short circuit protection: current limiting, since the recovery
- Operating temperature: Industrial grade (-40 degree to +85 degree) (output power 10W or less)
- Full load temperature rise: 40 degree
- Load regulation: ± 0.5%
- Voltage regulation: ± 0.5%
- Dynamic response speed: 5% 200uS
